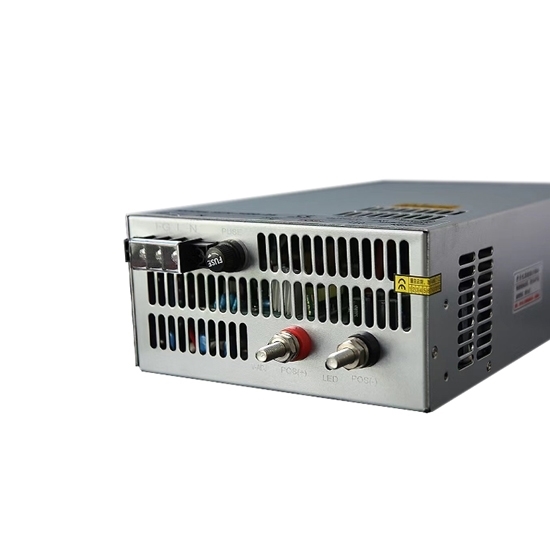

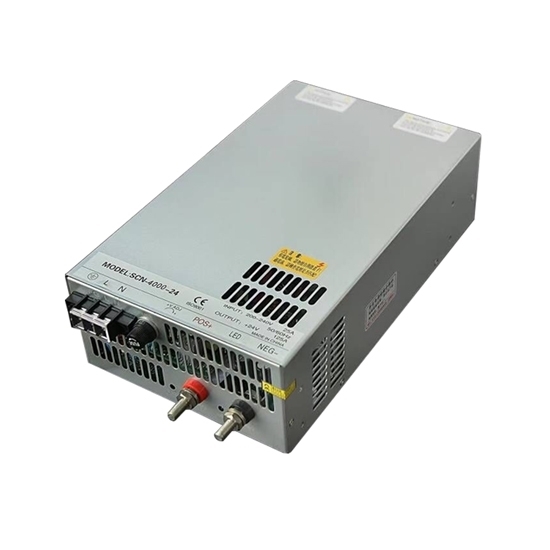

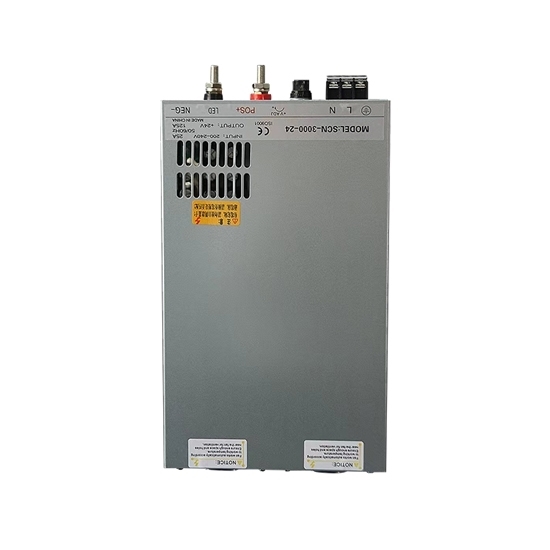

24V DC 4000W Switching Power Supply

0 reviews • Write a review

from

$646.46

Ex Tax: $646.46

Stock: In Stock
Model: RDDLZ-SMPS-4000-24
Weight: 1.00
SKU: RDDLZ-SMPS-4000-24

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Excellent magnetic core enameled wire, high temperature resistance
High voltage resistance, low loss, high capacity
Iron-silicon aluminum magnetic ring, lower working temperature
Highly efficient heat dissipation, low fan noise
4000W 24V DC switching power supply has high working efficiency, stable output
Exquisite appearance, small size, stable performance

Specification

Model		RDDLZ-MS-4000-24
Output	DC Voltage	24V
	Rated Current	160A
	Rated Power	4000W
	Ripple & Noise	240mVp-p
	Voltage Accuracy	±1%
	Voltage Adjustment Range	±10%
	Load Adjustment Rate	<±0.5%
	Line Adjustment Rate	<±0.5%
Input	Voltage Range	200V~240VAC
	Frequency Range	47~63Hz
	Efficiency (Typ.)	86%
	AC Current	220VAC, 8A
	Inrush Current	60A 230VAC
	Setup, Rise, Holdup Time	200ms, 50ms, 20ms: 230V AC
Protection	Overload	105~135% rated output power Protection type: Constant current limiting, recovers automatically after fault condition is removed.
Protection	Over temperature	RTH3: Fan is always running, ≥90°C output shut down.
Environment	Working Temperature	-10 ~ +50℃
	Working Humidity	20~90% RH
	Storage Temperature	-20~+85℃
	Storage Humidity	10~95% RH
Safety & EMC	Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	Leakage Current	I/P-O/P， <6mA at 1.5kVAC； <1.5mA at 220VAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Others	Dimension	31219095mm (LWH)
Others	Weight	7.0kg

Details

SMPS Power Supply Applications

Power Tools
Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
Offices Devices
Computer, Printer, LCD Monitor, Scanning Machine, etc.
Electrics & Household Appliance
TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezr, Coffemarker, etc.
Industrial Equipemnt
Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

Tips: What causes noise in switching power supply?

The noise generated during the use of the switching power supply. The switching power supply will change the current, resistance and other factors instantaneously in the process of deployment, which will lead to the change of the internal situation of the switching power supply. This kind of change generally has the characteristics of rapidity and rapidity, so it is easy to generate noise and affect the surrounding environment.
Noise generated by the loss of internal components of a switching power supply. Due to the frequent operation of the switching power supply, there is a certain loss of its internal components. Therefore, when the internal components of the switching power supply are lost, it will directly lead to the generation of noise.
Noise is generated by natural factors. The current has strong physical characteristics, and it is easily affected by external natural factors during the operation. For example, during the use of the switching power supply in thunderstorms, it is easy to generate a lot of noise.
Noise generated by the influence of the circuit. The switching power supply has a control effect on the entire circuit system, and the circuit system will also react to the switching power supply under certain conditions, which will affect the switching power supply and cause noise due to questionable circuit system.
