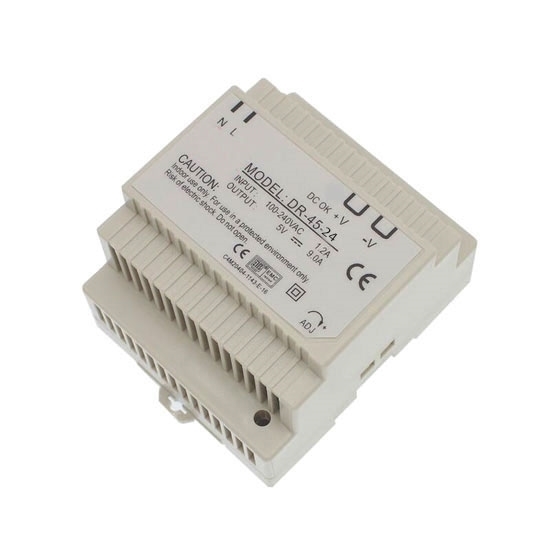

24V DC 2A 48W Switching Power Supply

0 reviews • Write a review

from

$71.16

Ex Tax: $71.16

Stock: In Stock
Model: RDDLZ-SMPS-45-24
Weight: 1.00
SKU: RDDLZ-SMPS-45-24

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Universal AC input/Full range
Protections: short circuit, overload, overvoltage and over temperature
Cooling by free air convection
Installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
100% full load burn-in test

Specification

Model		RDDLZ-DR-45-24
Output	DC Voltage	24V
	Rated Current	2A
	Current Range	0 ~ 2A
	Rated Power	48W
	Ripple & Noise (Max.)(Note 2)	480mVp-p
	Voltage Adjust Range	21.6 ~ 26.4V
	Voltage Tolerance (Note 3)	±1.0%
	Line Regulation	±1.0%
	Load Regulation	±1.0%
	Setup, Rise, Holdup Time	800ms, 60ms, 60ms/230V AC
Input	Voltage Range	85 ~ 264V AC or 120 ~ 370V DC
	Frequency Range	47~63Hz
	Efficiency (Typ.)	80%
	AC Current (Typ.)	1.5A/115V AC 0.75A/230V AC
	Inrush Current (Typ.)	Cold start: 28A/115V AC 56A/230V AC
	Leakage Current	<1mA/240V AC
Protection	Overload	105~150% rated output power Protection type: Constant current limiting, recovers automatically after fault condition is removed.
	Overvoltage	27.6V ~ 32.4V Protection type: Shut off o/p voltage, clamping by zener diode.
	Over temperature	Tj 135℃ typically (U1) detect on heat sink of power transistor Protection type: Shut down output voltage, re-power on to recover.
Environment	Working Temperature	-20 ~ +50℃
	Working Humidity	20~90% RH non-condensing
	Storage Temperature	-20~+85℃
	Storage Humidity	10~95% RH non-condensing
	Temperature Coefficient	±0.03%/℃ (0~50℃)
	Vibration	10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
Safety & EMC (Note 4)	Safety Standards	UL60950-1, TUV EN60950-1 Approved
	Withstand Voltage	I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH
	EMC Emission	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2, -3
	EMC Immunity	Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
Others	MTBF	≥364.6K hrs MIN. MIL-HDBK-217F (25℃)
	Dimension	937856mm (LWH)
	Weight	0.31kg
Note	1. All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance includes set up tolerance, line regulation and load regulation. 4. The switching power supply is considered a component which will be installed into final equipment. Please make sure that the final equipment still meets EMC directives.

Dimensions (Unit: mm)

Details

Tips: User guide of switching power supply (SMPS)

Output calculation
Switching power supply works at an efficiency of over 80%. When making a selection of output current, users shall measure and calculate maximum sock current of electric equipment to ensure higher cost-performance ratio of selected switching power supply.
Ground connection
In comparison with linear power supply, switching power supply generates more noise. Electric devices which are sensitive to common mode noise shall use ground connection or adopt shield measures. Measures applied to switching power supply must comply with EMC standard. Therefore, switching power supply is often equipped with EMC electromagnetic compatible filter. For example, switching power supply produced by RDDLZ connects its FG terminal to ground or shell to meet foresaid requirement for electromagnetic compatibility.
Protective circuit
Switching power supply must be provided with overvoltage protection, overheat protection and short circuit protection features.
