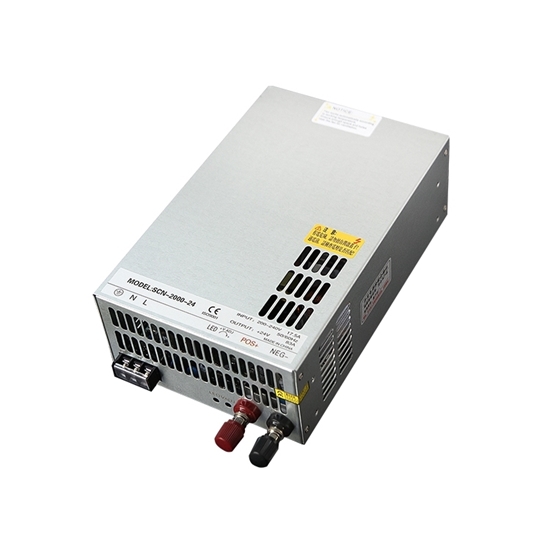

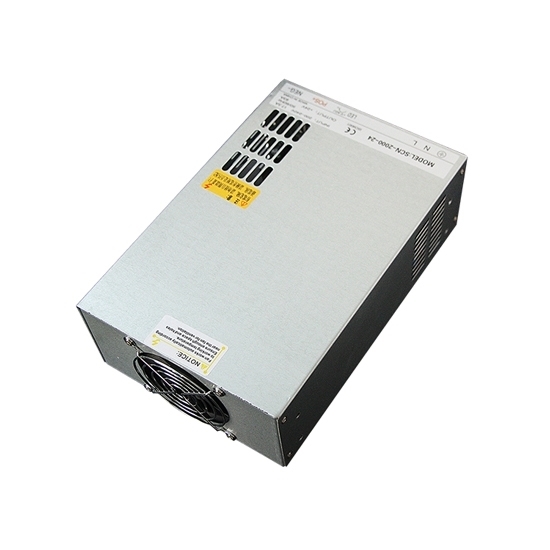

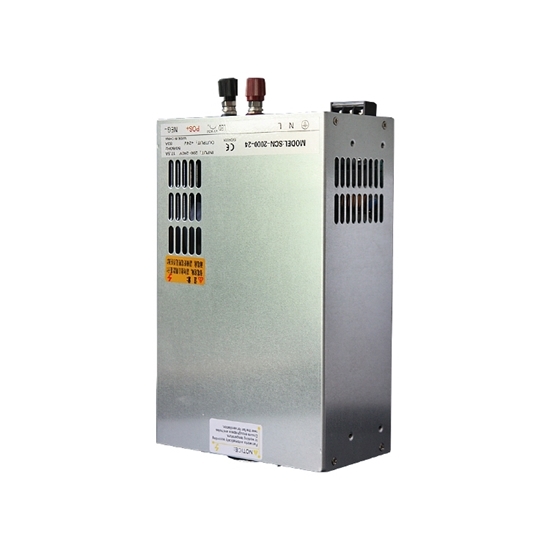

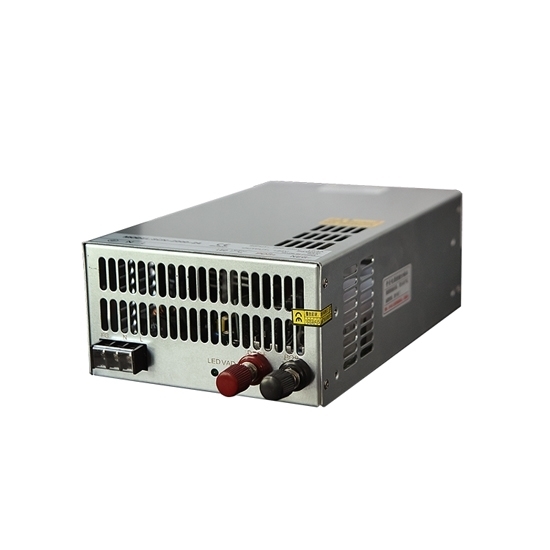

24V DC 2000W Switching Power Supply

0 reviews • Write a review

from

$350.15

Ex Tax: $350.15

Stock: In Stock
Model: RDDLZ-SMPS-2000-24
Weight: 1.00
SKU: RDDLZ-SMPS-2000-24

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

2000W switching power supply has high working efficiency, stable output
Exquisite appearance, small size, stable performance
Excellent magnetic core enameled wire, high temperature resistance
Iron-silicon aluminum magnetic ring, lower working temperature
Highly efficient heat dissipation, low fan noise
High voltage resistance, low loss, high capacity

Specification

Model		RDDLZ-MS-2000-24
Output	DC Voltage	24V
	Rated Current	83A
	Rated Power	2000W
	Ripple & Noise	150mVp-p
	Voltage Accuracy	±1%
	Voltage Adjustment Range	±10%
	Load Adjustment Rate	<±0.5%
	Line Adjustment Rate	<±0.5%
Input	Voltage Range	176~264VAC; 254~370VDC
	Frequency Range	47~63Hz
	Efficiency (Typ.)	85.5%
	AC Current	220VAC, 8A
	Inrush Current	60A 230VAC
	Setup, Rise, Holdup Time	200ms, 50ms, 20ms: 230V AC
Protection	Overload	105~135% rated output power Protection type: Constant current limiting, recovers automatically after fault condition is removed.
Protection	Over temperature	RTH3: Fan is always running, ≥90°C output shut down.
Environment	Working Temperature	-10 ~ +50℃
	Working Humidity	20~90% RH
	Storage Temperature	-20~+85℃
	Storage Humidity	10~95% RH
Safety & EMC	Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	Leakage Current	I/P-O/P， <6mA at 1.5kVAC； <1.5mA at 220VAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Others	Dimension	26016088mm (LWH)
Others	Weight	3.0kg

Details

SMPS Power Supply Application

Power Tools
Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
Offices Devices
Computer, Printer, LCD Monitor, Scanning Machine, etc.
Electrics & Household Appliance
TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezr, Coffemarker, etc.
Industrial Equipemnt
Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

Tips: How to choose a switching power supply

Types of switching power supplies: Understand your needs and confirm the type of input and output terminals, whether you need AC to DC, DC to DC, or DC to AC.

Select the switching power supply with appropriate power: In order to improve the reliability of the system, it is recommended that the switching power supply actually work at 50%-80% load, that is, the switching power supply with about 30% more output power is selected. For example, if the power is 20W, a switching power supply with an output power of 25W-40W should be selected. If the load is a motor or capacitive load, these loads will have a certain impact on the power supply when the load is turned on. In this case, the power should be larger or a specific switching power supply with an inductive load should be selected.
