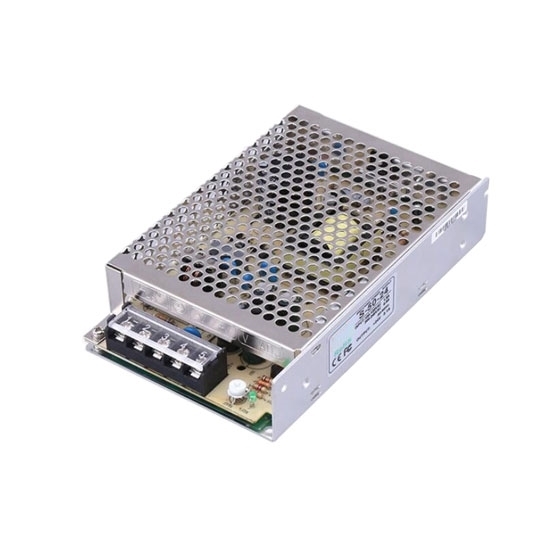

24V DC 2.1A 50W Switching Power Supply

0 reviews • Write a review

from

$54.15

Ex Tax: $54.15

Stock: In Stock
Model: RDDLZ-SMPS-50-24
Weight: 1.00
SKU: RDDLZ-SMPS-50-24

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Universal AC input / Full range AC input
Short circuit, overload and overvoltage protections
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
High reliability, low price and wide range of applications

Specification

Model		RDDLZ-S-50-24
Output	DC Voltage	24V
	Rated Current	2.1A
	Current Range	0 ~ 2.1A
	Rated Power	50.4W
	Ripple & Noise (Max.)(Note 2)	100mVp-p
	Voltage Adjust Range	22.6 ~ 26.4V
	Voltage Tolerance (Note 3)	±1.0%
	Line Regulation	±0.5%
	Load Regulation	±0.5%
	Setup, Rise, Holdup Time	200ms, 100ms, 30ms
Input	Voltage Range	85 ~ 132VAC/170V~260VAC (selected by a switch) or 240 ~ 370V DC
	Frequency Range	47~63Hz
	Efficiency (Typ.)	82%
	AC Current (Typ.)	1.3A/115V AC 0.65A/230V AC
	Inrush Current (Typ.)	Cold start: 18A/115V AC 36A/230V AC
	Leakage Current	<1mA/240V AC
Protection	Overload	105~150% rated output power Protection type: Hiccup mode, recovers automatically after fault condition is removed.
Environment	Working Temperature	-10 ~ +60℃
	Working Humidity	20~90% RH non-condensing
	Storage Temperature	-20~+85℃
	Storage Humidity	10~95% RH non-condensing
	Temperature Coefficient	±0.03%/℃ (0~50℃)
	Vibration	10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
Safety & EMC (Note 4)	Safety Standards	UL1012 Approved
	Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH
	EMC Emission	Compliance to FCC Part 15 Jconduction Class B
Others	MTBF	≥408.3K hrs MIN. MIL-HDBK-217F (25℃)
	Dimension	1599738mm (LWH)
	Weight	0.51kg
Note	1. All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance includes set up tolerance, line regulation and load regulation. 4. The switching power supply is considered a component which will be installed into final equipment. Please make sure that the final equipment still meets EMC directives.

Dimension (Unit: mm)

Details

SMPS Power Supply Applications

Power Tools
Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
Offices Devices
Computer, Printer, LCD Monitor, Scanning Machine, etc.
Electrics & Household Appliance
TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezr, Coffemarker, etc.
Industrial Equipemnt
Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

Tips: Switching power supply development

The development of switching power supply is high-frequency, high reliability, low consumption, low noise, anti-interference and modularity. The performance of switching power supply in light weight, small size and thickness depends on its high frequency. Upgrading of secondary rectification devices and innovation of power ferrites have improved its magnetic performance in high frequency and field density conditions. In addition, miniaturization of capacitors also serves as a key technology. Extensive use of SMT technology accelerated development of switching power supply. To ensure outstanding performance of witching power supply in weight, size and thickness, electric components are laid out on both sides of the circuit. High frequency of switching power supply requires innovation of PWM. As a result, ZVS and ZCS have been applied to switching power supply as supporting technologies to improve its efficiency.
