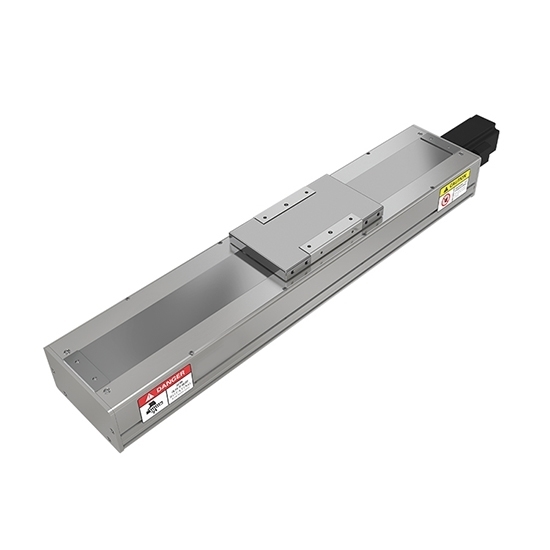

200W 100~1050mm Ball Screw Driven Linear Slide, Ф16mm

0 reviews • Write a review

from

$1,199.69

Ex Tax: $1,199.69

Stock: In Stock
Model: RDDLZ-LS-1050200
Weight: 1.00
SKU: RDDLZ-LS-1050200

Available Options

Short Description

Stroke

Motor Position

Sensor Switch

Servo Motor

Ball Screw Lead

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Linear slide table has guide rail, sliding block, motor and sensor to form a linear motion system. Stroke is available from 100mm to 1050mm, screw path 5/10/20mm, ball screw diameter 16mm. High precision, easy assembly and affordable price.

Basic Specification

Model		RDDLZ-C135
Stroke		100mm~1050mm (100mm pitch)
Ball Screw Diameter		16mm
Repeatability Accuracy		± 0.01mm
Ball Screw Lead		5mm	10mm	20mm
Max. Speed		225 mm/s	450 mm/s	900 mm/s
Max. Payload	Horizontal	95/110 kg	75/88 kg	35/40 kg
	Vertical	27/33 kg	18/22 kg	7/10 kg
Rated Thrust		683/1388 N	341/694 N	174/347 N
Matching Servo Motor Power*		200W
Coupling		1011 (14) / 1014 mm
Home Sensor	Outside	EE-SX672 (NPN)
	Built-in	EE-SX674 (NPN)

*Note: The servo motor is not included in packing list, if you need one, please contact us.

Speed Chart

Model	Body Width (mm)	Ball Screw Lead (mm)	Max. Payload (kg)		Max. Speed (mm/s)	Standard stroke and recommended use of the highest speed (mm/s)
Model	Body Width (mm)	Ball Screw Lead (mm)	Horizontal	Vertical	Max. Speed (mm/s)	100	200	300	400	500	600	700	800	900	1000	1050
RDDLZ-C135	136	5	95	27	225	-	-	-	-	-	-	-	225	175	125	100
		10	75	18	450	-	-	-	-	-	-	-	450	350	250	200
		20	35	7	900	-	-	-	-	-	-	-	900	700	500	400

Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

Features

The linear slide is a fully enclosed linear motion system, which is mainly composed of an aluminum body, a diagonal bearing holder, a cover plate, a slide block and other components.
Linear slide guide rail uses corrosion-resistant, high-strength aluminum alloy as the base. A high-precision linear guide pair is installed in the base. The aluminum alloy motion base is installed on the slide block. The middle part of motion seat is connected with the nut of ball screw.
Motor of the motorized linear slide drives the sliding table to reciprocate through the ball screw rod.
The diagonal bearing holder ensures the repeatability and positioning accuracy of motion seat.
The flexible stainless steel is sealed, and on the motion seat, the whole linear motion system can meet the requirements of dust-free level.

Motor Mounting Dimensions (Unit: mm)

Motor Power	Motor Size	Shaft Diameter
200W	60mm	11mm
