200A 100V 20000W Variable DC Power Supply

Free Shipping

200A 100V 20000W Variable DC Power Supply

0 reviews • Write a review

from

$6,639.89

Ex Tax: $6,639.89

Stock: In Stock
Model: RDDLZ-VDCPS100200K
Weight: 1.00
SKU: RDDLZ-VDCPS100200K

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

200 amp 100 volt variable DC power supply unit serves as a dependable source of power, supplying the necessary energy for testing, prototyping, and powering electronic circuits. Its regulated nature guarantees a stable output, safeguarding connected devices from voltage fluctuations.

Specification

Model	RDDLZ-JK100200K
Input Voltage	Single Phase 110V AC, Three Phase 220V or 380V AC (+/- 10%) (240V, 400V, 415V, 440V, 460V 480V can be customized)
Output Voltage Range	0-100V
Output Current Range	0-200A
Output Power	20000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

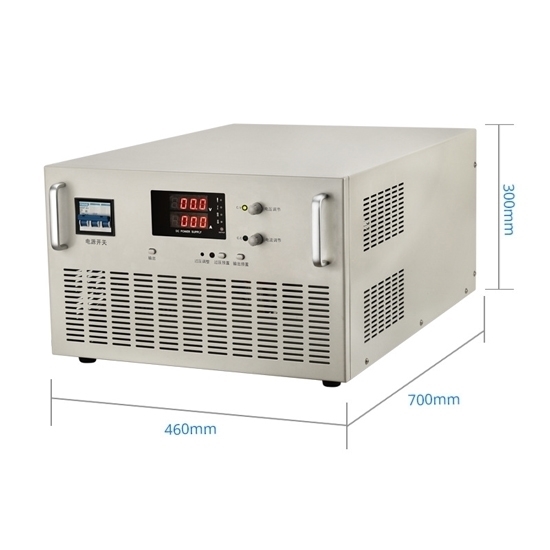

Size	700 (L) x 480 (W) x 295 (H) mm
Weight	45kg

Detail

Tips: What is the significance of power supply regulation?

Power supply regulation is crucial for stable and reliable operation of electronic devices. It ensures that electronic components receive a consistent and optimal voltage, preventing fluctuations that could lead to malfunctions or damage. A regulated power supply mitigates the risk of voltage spikes or drops, which can compromise the performance and lifespan of sensitive equipment. Additionally, it aids in reducing electromagnetic interference and noise, promoting cleaner signals in audio, video, and communication systems. This stability is especially vital in critical applications such as medical devices, aerospace, and telecommunications, where precision and reliability are paramount. In summary, power supply regulation safeguards electronic systems, enhancing their efficiency, longevity, and overall performance while minimizing the potential for operational errors or failures.
