2" Electric Wafer Butterfly Valve

0 reviews • Write a review

from

$493.79

Ex Tax: $493.79

Stock: In Stock
Model: RDDLZ-EBV-50WF
Weight: 1.00
SKU: RDDLZ-EBV-50WF

Available Options

Short Description

Power Supply

Butterfly Valve Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This electric butterfly valve cannot be used for drinking water.

RDDLZ electric butterfly valve is equipped with an aluminum alloy electric actuator to work. Our electric actuated butterfly valve can work at high temperature below 120 °C, which is a reliable device for flow control.

Specification

Butterfly Valve	Model	RDDLZ-EBV-50WF
	Media	Water, Air, Gas, Oil, Liquid, etc.

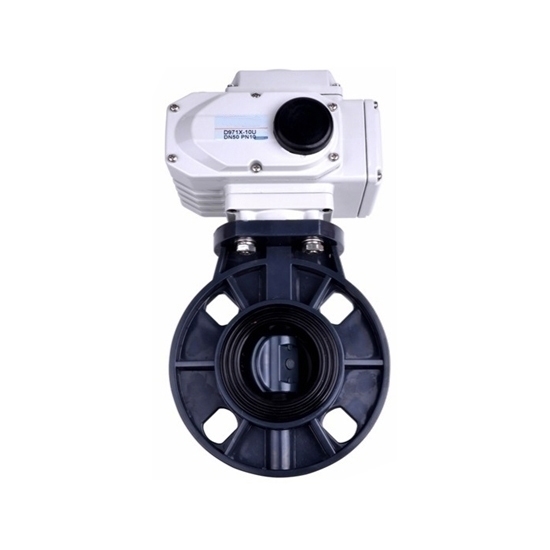

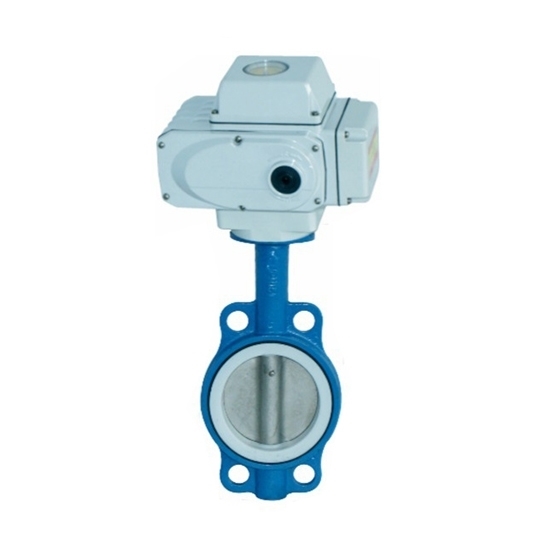

	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	2 inch (DN50, 50mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Electric Actuator	Model	RDDLZ-KLST-05
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	15N.m, 10s 30N.m, 20s 50N.m, 30s
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

DN	L	H1	H2	A	D	D1	N-φd
50	42	80	296	160	120	99	4-23

PVC Butterfly Valve Body Dimension (Unit: mm)

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H1	L
D1	n-φe	D1	n-φe	D1	n-φe
120	4-19	120.5	4-19	125	4-18	160	56.5	105	103	13	43	29	6.5	50	14	231	160

Details

Tips: Working principle of electric butterfly valve

After the electric butterfly valve is connected and debugged by the regulating electric actuator and the valve stem, the electric energy is used as the driving force to drive the hard-sealed butterfly valve plate, making a 0~90° partial rotary motion. Receive the 4~20mA signal from the industrial automation control system to precisely control the valve opening, so as to achieve the adjustment and control of different process parameters such as flow, temperature and pressure.
