Note: This plug valve cannot be used for drinking water.

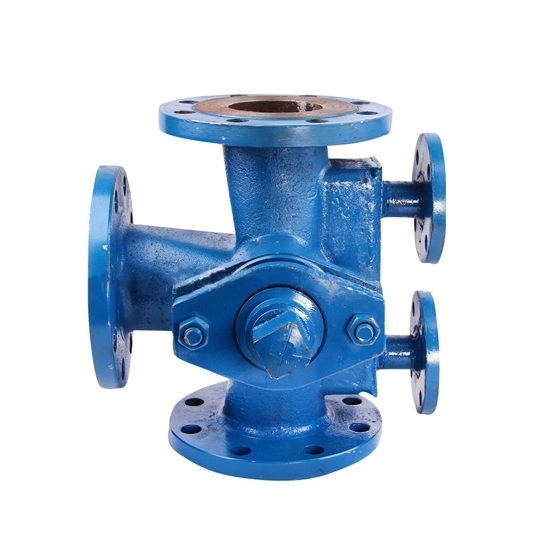

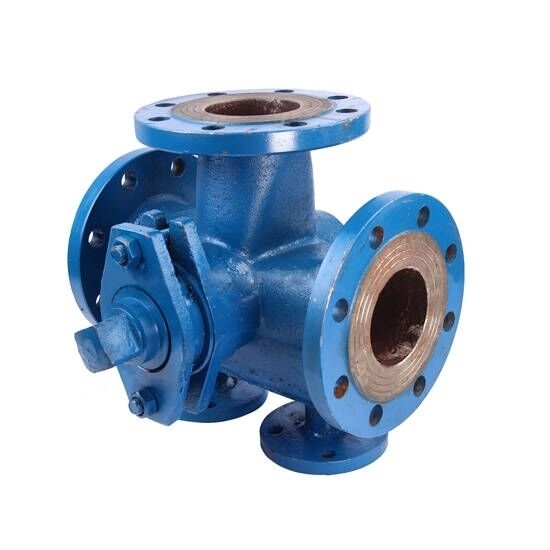

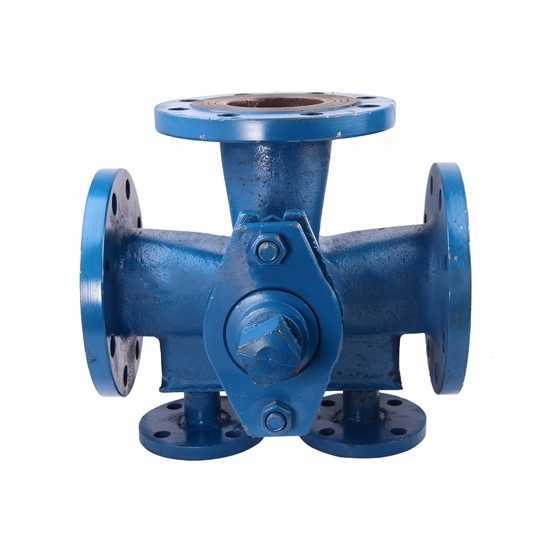

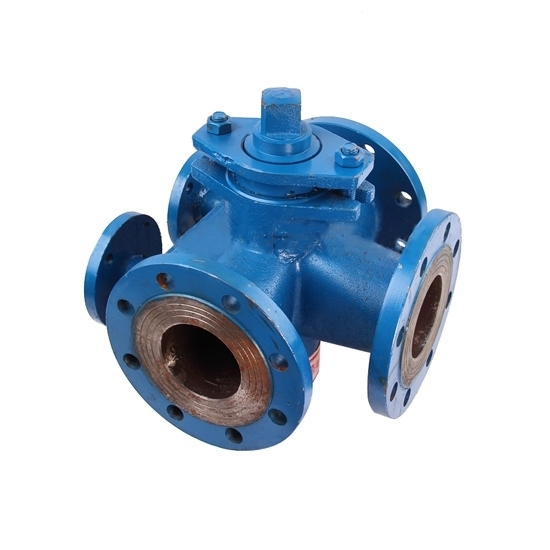

The 3-way plug valves are ruggedly designed to withstand high pressures and temperatures. A lightweight 2" plug valve actuator regulates fluid flow rate, direction and pressure, making it a highly flexible option for many different applications.

Specification

• Model: RDDLZ-PV-D50
• Nominal Diameter: DN50 (2 inch)
• Connection Type: Flange
• Way: 2 Way, 3 way
• Material: Carbon Steel
• Flowing Mode: Single-phase
• Pressure Environment: Atmospheric pressure
• Working Temperature: High temperature

Features

• 2 inch plug valves have a simple design and are easy to operate, which makes them suitable for a variety of applications.
• 2 Way/3 way plug valves typically require low torque to operate, making them easy to turn even with manual operation.
• DN50 plug valves are highly durable and can withstand harsh operating conditions, including high pressure and high temperature environments.
• Plug valves are suitable for use in a wide range of applications, including oil and gas, chemical, pharmaceutical, and food and beverage industries.
• Plug valves have good throttling performance, which makes them useful in controlling the flow rate of fluids.
• Plug valves are low maintenance, requiring minimal repair or replacement even after prolonged use.

Dimension (Unit mm)

Applications

The plug valve is commonly used in various industries, including oil and gas, petrochemical, chemical, power generation, and water treatment. It is often used in applications that involve high pressure, high temperature, and abrasive or corrosive fluids. Some specific examples of plug valve applications include pipeline isolation, flow control, throttling, and emergency shut-off. Additionally, plug valves can be used in various types of equipment, such as pumps, compressors, and tanks, to regulate fluid flow.

Tips: What is a plug valve?

A plug valve is a type of quarter-turn valve that uses a tapered or cylindrical plug to regulate the flow of fluids through a pipeline. The plug can be rotated 90 degrees within the valve body to open or close the valve. When the plug is turned to the open position, the fluid can flow through the valve, and when the plug is turned to the closed position, the fluid flow is blocked.

Plug valves can be used in a variety of applications, including water treatment, chemical processing, oil and gas production, and food and beverage production. They are commonly used in applications where a tight shut-off is required, as the plug can completely seal off the flow of fluid through the valve.

Plug valves are available in a range of materials, including cast iron, carbon steel, stainless steel, and plastic. They can be designed for various pressure and temperature ranges and are often used in high-pressure applications.
