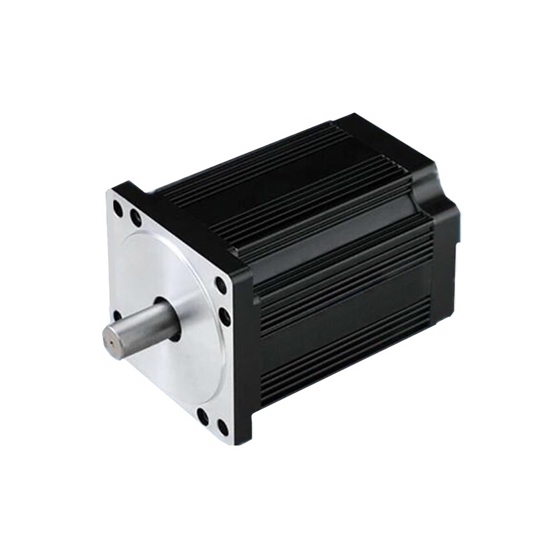

2000W 48 volt BLDC motor with 10 Nm high rated torque at low price, 2000 rpm, 24 volt, 72 volt, 96 volt are optional. 3 phase brushless DC motor kit (electric motor, BLDC controller, planetary gearbox) best for new energy electric car, renewable energy systems, and industrial equipment which require high torque density and compact occasions. Usually, RDDLZ recommends buying a kit of 2kW BLDC motor.

Basic Specifications

• Model: RDDLZ-D130BLD2000
• Matched Controller Model: RDDLZ-DMKEB
• Rated Power: 2000W
• Rated Voltage: 24V DC / 48V DC / 72V DC / 96V DC (Optional)
• Rated Current: 102.7A at 24V, 51.3A at 48V, 34.2A at 72V, 25.7A at 96V
• Phase: 3 phase
• Holding Torque: 10 Nm
• Peak Torque: 30 Nm
• Rated Speed: 2000 rpm
• No-load Speed: 2400 rpm
• Square Flange Size: 130 mm
• Weight: 12 kg

Technical Parameters

• Working Efficiency: 85%
• Number of Pole: 4 pairs of poles (8 poles)
• Brake Apparatus Voltage: 24V DC/ 48V DC, (Electromagnetic brake will trigger when the DC supply cuts off)
• Brake Length: 40-50mm
• Insulation Grade: F
• Protection Grade: IP65
• Working Temperature: -20°C-50°C
• Humidity: ≤90% (no condensation)
• Motor Lead Length: 30 cm, if buy a kit (motor+controller), extra 1 meter of wire shall be provided.
• Certificate: CE, ROHs, ISO/TS16949

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of RDDLZ BLDC Motors can be customized.

Features

1. High performance and low consumption
   2kW brushless DC motor is three phase electric motor, which especially suited for application requiring higher efficiency and power density.
2. Wide application range and good control effect

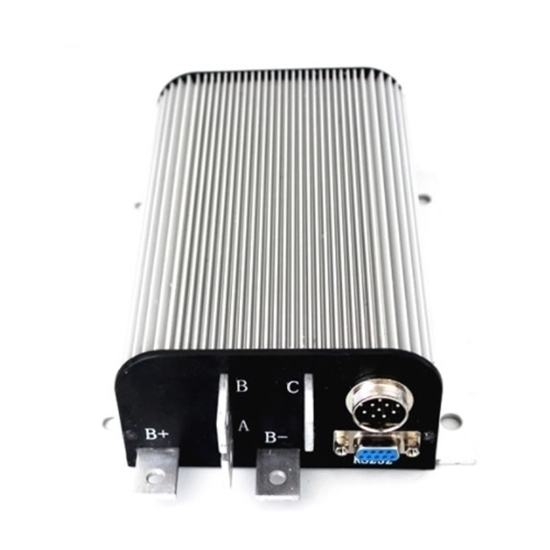

   BLDC motor works with a matching controller (RDDLZ-DMKEB) may achieve simple to complex control, turn from CW to CCW, and meet various communication requirements (RS232, RS485, CAN, etc.). BLDC controller can be controlled through 0-5VDC analog signal to adjust the speed.
3. Wide control speed torque range

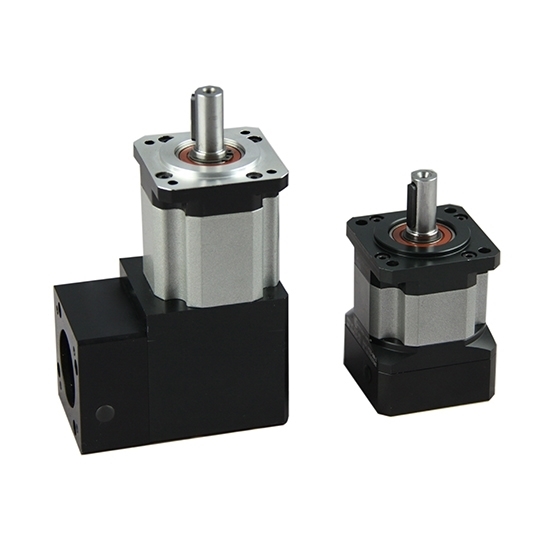

   Brushless DC motor works with a gearbox (choose inline gearbox or right angle gearbox with gear ratio from 3:1 to 200:1) effectively reduce the motor's speed and moment of inertia to increase torque in your application, because the gearbox can control the start/stop and change speed in time.
4. Low noise and smooth operation
   Brushless DC motor has no brushes, no sparks will be generated during operation, which greatly reduces friction.
5. Good protection performance and continuous duty (24/7)
   2000W BLDC motor kit adopts a new type of sealing device, which has good protection performance and strong adaptability to the environment, and works continuously in harsh environments such as corrosion and humidity.

Line Define

Dimension (Unit: mm)

Details

Tips: Brushless DC Motor vs. Stepper Motor

The brushless DC motor is composed of a motor body and a brushless motor driver. It is a typical mechatronics product. Because the brushless DC motor runs in a self-control mode, it will not add a start winding to the rotor like a synchronous motor started under heavy load under variable frequency speed regulation, nor will it cause oscillation and loss of step when the load changes suddenly. The permanent magnets of small and medium-capacity brushless DC motors now mostly use high magnetic energy level rare earth neodymium iron boron (Nd-Fe-B) materials.

stepper motor is a motor that converts electrical pulse signals into corresponding angular or linear displacements. Every time a pulse signal is input, the rotor rotates an angle or moves forward. The output angular displacement or linear displacement is proportional to the number of input pulses, and the speed is proportional to the pulse frequency. Therefore, the stepper motor can be called the pulse motor.
