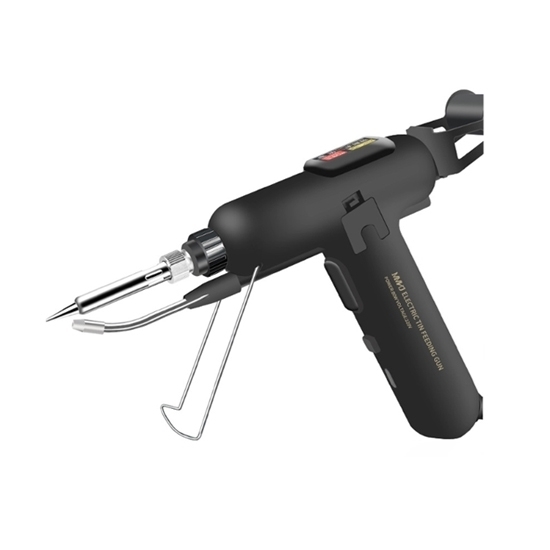

The automatic electric welding gun has a power of 100 watt and is available in 110V or 220V, with a removable wire holder for easy wire replacement. A portable soldering gun is suitable for a wide range of applications from small electronic repairs to large projects.

Specification

• Model: RDDLZ-SD-E100W
• Power: 100W
• Working Temperature: 580 °C
• Voltage: 110/220V
• Power Plug: Euro/US/UK/AU
• Power Switch: Yes
• Indicator Light: Yes
• Dimension: 240* 145* 32mm
• Applicable Wire Diameter: 0.5mm~1.2mm
• Weight: 0.23kg

Details

Usage Introduction

1. Attaching the solder wire to the holder.
2. Pass the wire through the soldering gun.
3. Secure the holder.
4. Check that the wire flows smoothly.
5. Connect to the power supply and check that the indicator light is on.
6. Complete the steps and start soldering.

Sockets

Applications

Soldering guns are widely used in the manufacture and repair of electronic devices, such as computers, radios, and televisions. They are also used in automotive and industrial settings, where they are used to repair electrical wiring, circuit boards, and other components. Additionally, soldering guns are used in jewelry making and metalworking, where they are used to join metal components together for decorative and functional purposes.

Tips: What is solder gun used for?

A solder gun is a tool used for soldering, which is the process of joining two metal pieces together using a metal alloy called solder. The solder gun heats up the solder to its melting point, allowing it to flow and bond to the metal surfaces being joined. Solder guns are commonly used in electrical and electronic repair work, plumbing, and metalworking. They come in various sizes and shapes, and can be powered by electricity, gas, or battery.
