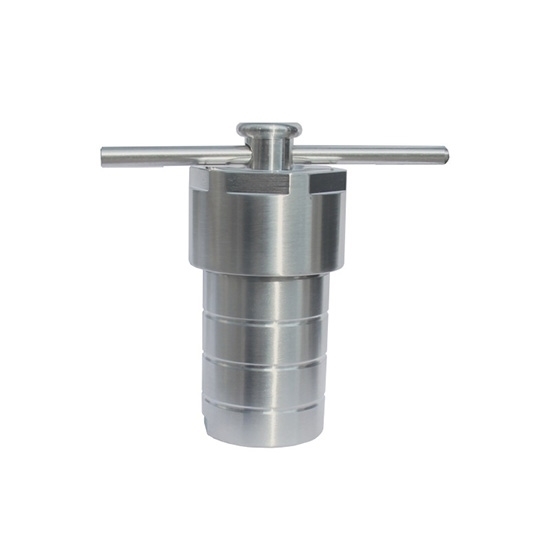

A hydrothermal synthesis reactor, also known as a hydrothermal autoclave, is a specialized type of chemical reactor that is designed to carry out chemical reactions in a high-temperature and high-pressure aqueous environment. It is commonly used in materials science, chemistry, and chemical engineering.

Features:

• Thickening processing PTFE cover, not easy to soften.
• Beautiful appearance, reasonable structure and easy to operate.
• With PTFE liner, double care, acid and alkali, resistant to high temperature of 200 ℃.

Specification:

• Model: RDDLZ-KH-1000
• Capacity: 1000ml
• Material: 304 stanless steel, PTFE chamber
• Maximun Pressure: 3 MPa
• Safe Working Temperatue: 200 ℃
• Heating and Cooling Rate: ≤5 ℃/min
• Net Weight: 16kg
• Dimension: 210*260 mm (φ*H)

Structure:

Application:

Tips: How to Use Hydrothermal Synthesis Reactor?

• Prepare your materials. Identify the materials you want to synthesize, such as precursors, solvents, and additives. Measure and mix them in the desired proportions according to your experimental recipe.
• Load the reactor. Open the hydrothermal synthesis reactor and load the prepared materials into the reaction vessel.
• Seal the reactor. Make sure the reactor is properly sealed to prevent any leaks or releases of pressure. Depending on the type of hydrothermal synthesis reactor, this may involve screwing on a cap, sealing with a gasket, or using other sealing methods.
• Set the operating parameters. Set the desired temperature, pressure, and reaction time on the hydrothermal synthesis reactor. These parameters will depend on the materials you are synthesizing and the goals of your experiment.
• Start the heating process. Begin heating the hydrothermal synthesis reactor using the appropriate heating method.
