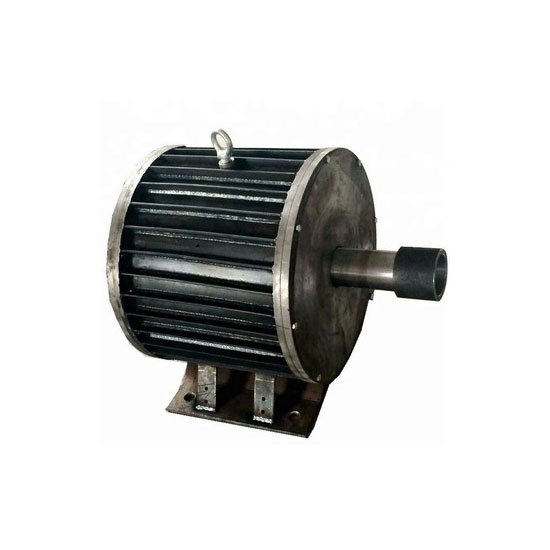

10 KW 120V/220V/420V Alternator, 3 Phase

Free Shipping

10 KW 120V/220V/420V Alternator, 3 Phase

0 reviews • Write a review

from

$7,258.89

Ex Tax: $7,258.89

Stock: In Stock
Model: RDDLZ-PMG-10kW
Weight: 1.00
SKU: RDDLZ-PMG-10kW

Available Options

Short Description

Rated Voltage

Base

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

10000 watt permanent magnet alternator rated speed of 170 rpm, three phase, rated voltage 120V/220V/420V for option, manufacturer direct sales.

Note: Special rated voltage and speed can be customized, please contact us.

Specification:

Model	RDDLZ-PMG-10kW
Rated Power	10 kW
Max Power	13 kW
Rated Voltage	96v/120v/220v/380v/420v
Rated Speed	170r/m
Net Weight	180kg
Output Voltage	AC
Start Torque	1.28Nm
Rated Torque	561.7Nm
Synchronous Generator Phase	3 Phase
Insulation Class	F
Service Life	More Than 20 years
Bearing	HRB or for your order
Shaft Material	Iron
Shell Material	Carbon Steel
Permanent Magnet Material	Rare Earth NdFeB
Protection Grade	IP54
Lubrication	Lubrication Grease
Working Temperature	-40℃ - 80 ℃

Features

Gearless, direct drive, low RPM permanent magnet generator.
Low start up speed due to low cogging and resistive torque design.
High standard, quality components for use in harsh and extreme environments for wind turbines.
High efficiency and Low mechanical resistance energy loss.
Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
High strength from the specially desy selecign structure and fully heat treatment aluminium.
Generator is designed using speciallted material and treated to resist corrosion and oxidation.
Designed for reliable and long operational lifetime under long-term full output.

Tips: Why can rare earth permanent magnet motors save energy?

When the motor is in operation, it needs to be excited first to start running. It is the most energy-consuming when starting. The ordinary motor needs to consume a lot of "excitation current", and the motor motor using rare earth permanent magnet does not need to consume a lot at first. The electric energy is first excited, and it can be quickly and energy-savingly activated by its own permanent magnet. Since he removes the excitation coil, it will also save the part of the electric energy it consumes during the operation.
