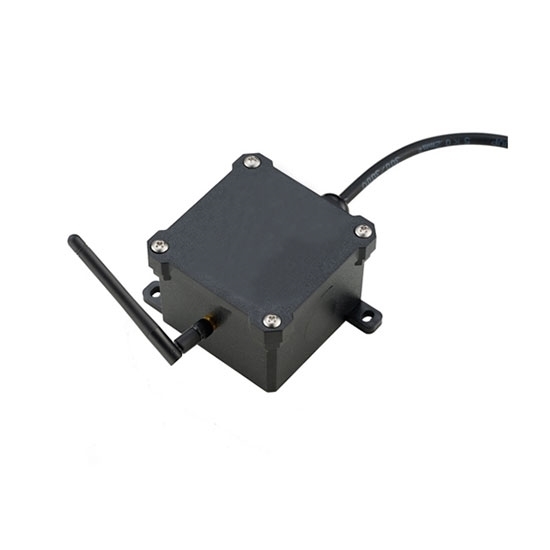

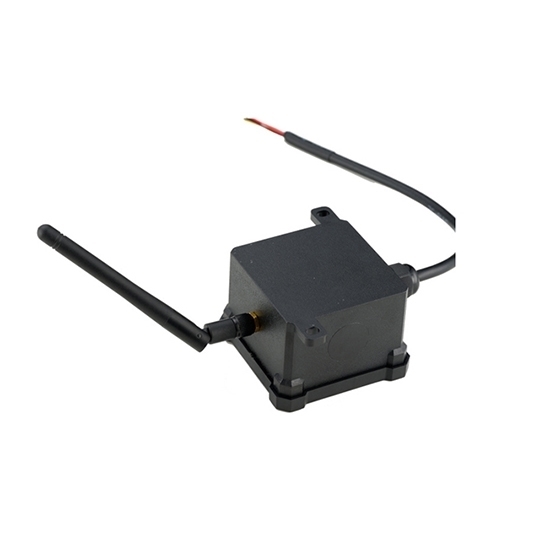

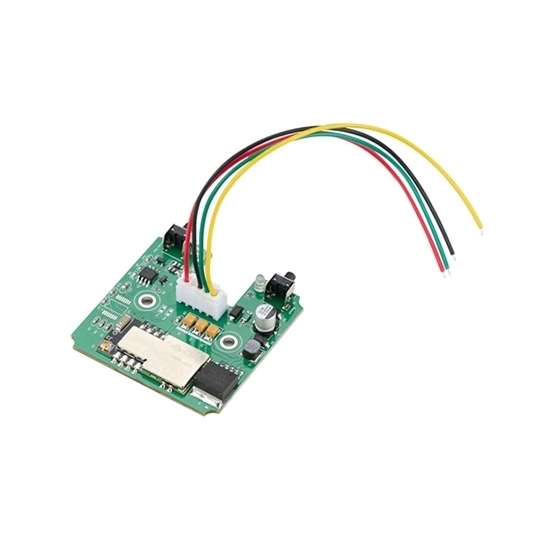

Wireless Transmission Module For Inclination Sensor

0 reviews • Write a review

from

$124.16

Ex Tax: $124.16

Stock: In Stock
Model: RDDLZ-IMS-S2630
Weight: 1.00
SKU: RDDLZ-IMS-S2630

Available Options

Output Signal

With Inclinometer Sensor

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Wireless transmission module adopts highly reliable design for wireless tilt sensor, built-in 2.4GHz wireless band (band adjustable), users can realize 2405~2480MHz frequency customization through the serial port command to meet the personalized needs. The wireless transmission module is equipped with RS232 and RS485 output interfaces as standard, and the transmission distance can reach up to 1600 meters, and the protection level is up to IP66, which is dust-proof, water-proof, cold-proof and acid-proof.

Specifications

Model	RDDLZ-RDDLZ-HMS2630
Output Interface	RS232, RS485 optional
Matched Inclinometer Sensor	RDDLZ-IMS-HMI600
Wireless Frequency	2.4GHz (2460MHz), user can change the frequency band (2405MHz ~ 2480MHz, step: 5MHz) via serial command, corresponding band 11-26 optional
Serial Format	8-N-1 (default), 8-E-1, 8-O-1 can be set.
Baud Rate	9600bps (default), settable 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps
Transmission Distance	Visual, open, transmission distance 1600 meters
Antenna Format	Built-in customization required (please contact us)
Receiving Sensitivity	-98dBm
Configurable Node	Configurable as Coordinator, Router, End Device
Power-on Start Time	0.5s
Response Time	0.01s
Radio Frequency	2450MHZ (default), 2450~2480 adjustable
Average Operating Time	≥55000 hours/time
Protection Class	Dust-proof, waterproof, cold-resistant, hydrochloric acid-resistant
Waterproof Grade	IP66
Supply Voltage	5V
Current Draw	Working mode: 20-200mA
Current Draw	Sleep mode: 18mA
Built-in Battery Capacity	5000mAh
Operating Temperature	-40°C~+85°C
Storage Temperature	-55°C~+125°C
Connector	Lead wire 0.5m
Housing Material	Engineering plastics
Mounting	Four M4 screws
Weight	85g (without box)

Note: This product is to be used with a wireless inclinometer sensor!

Connection Method

Wireless Transmission Example Diagram

RS485 Transmission Multi-node Data Acquisition

RS232 Point to Point Data Acquisition

Wiring Diagram

Electrical Connection	Line Color Function
	1	2	3	4	5
	Red	White	Black	Green	Yellow
RS232	VCC	NC	GND	RXD	TXD
RS485	VCC	NC	GND	(B, D-)	(A, D+)

Note: The NC wire color function is a reserved wire, which is not connected by the user during use. RS485 transmission multi-node transmission, RS232 point-to-point transmission.

Application

Tips: Wireless transmission module features

Simple and Easy to Use: The two wireless transmission modules can be compared to a serial line, similar to the wired serial port.
Automatic Networking: Power on the module self-organizing network, without human intervention.
Transmission Method: Multi-point transmission and point-to-point transmission can be selected at will.
High Security: 128bit wireless data encryption, users can set the key to prevent data leakage and prevent unauthorized nodes from obtaining network data.
Strong Flexibility: Module node type can be configured as coordinator or router, and wireless channel can be specified.
Signal Strength: You can query the relative strength of the module signal.
