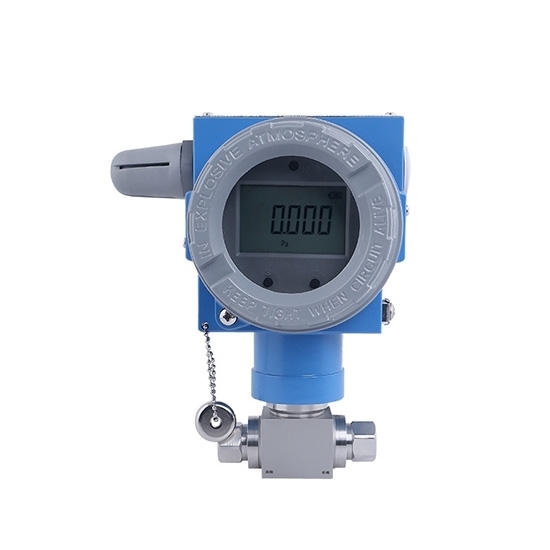

Wireless Differential Pressure Transmitter, LCD Display, IP66

0 reviews • Write a review

from

$402.31

Ex Tax: $402.31

Stock: In Stock
Model: RDDLZ-PRES-CYYZ106
Weight: 1.00
SKU: RDDLZ-PRES-CYYZ106

Available Options

Short Description

Explosion Proof

Accuracy

Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The intelligent wireless differential pressure transmitter adopts the form of communication + power supply + sensor in one, which can be installed and used without considering other factors. It is equipped with NB-loT module. It is a low-power intelligent instrument with wireless communication function.

Typical applications of wireless differential pressure transmitter include industrial Internet of Things, intelligent monitoring of drainage and water supply network, intelligent monitoring of fire water system, integrated pipe corridor environment monitoring, smart medical care and smart park. In addition, we can also provide customized products that meet the application needs of customers. If needed, please feel free to contact us.

Features

Wireless differential pressure transmitter is equipped with NB IoT module, which has a wide coverage range, strong connection capability, fast speed, low power consumption, and superior architecture design.
The differential pressure transmitter adopts an integrated lithium-ion battery, which is easy to replace and has a fully sealed structure to ensure stable and stable working voltage.
It supports wireless remote transmission, and users can set and store data through PC and APP without on-site wiring, making it convenient to obtain historical data.
The sensor is equipped with an LCD display screen, which has a button free magnetic wake-up function and a backlight design, making it easy to observe even in dark environments. The screen data only needs to be awakened by magnetic suction.

Specification

Model	RDDLZ-CYYZ106
Measuring medium	Liquid or gas (compatible with contact material)
Measurement range	0~2.5MPa (optional)
Pressure mode	Differential pressure
Medium temperature	-40~85℃
Accuracy	0.5%FS (differential pressure range to rated range ratio <1:2.5)
Temperature compensation	-10~70℃
Temperature drift	±0.01%FS/℃ (within temperature compensation range)
Temperature drift	±0.05%PS/℃ (outside temperature compensation range)
Stability	±0.1% FS/year
Battery life	≤ 10years
Network standard	NB-IoT
Protection level	IP66
Display type	LCD display
Durability	1X10⁶ times (number of cycles from lower limit to upper limit of range)
Overall weight	About 2.5kg
Resolution	0.05%FS
Environmental humidity	0%~95%RH (no condensation and no condensation)
Diaphragm material	316L stainless steel

Dimension (mm)

Tips: What is temperature compensation?

In electronic components, the output signal will drift with temperature changes, resulting in measurement errors. To reduce this impact, we use algorithms to modify the output results, thereby eliminating the influence of temperature changes on the signal. This technology is called temperature compensation. Through temperature compensation, components can maintain stable output within a certain temperature range, ensuring measurement accuracy. This wireless differential pressure sensor has a wider temperature compensation range, with a conventional temperature compensation range of -10℃ to 70℃, effectively reducing the impact of temperature changes on its performance.
