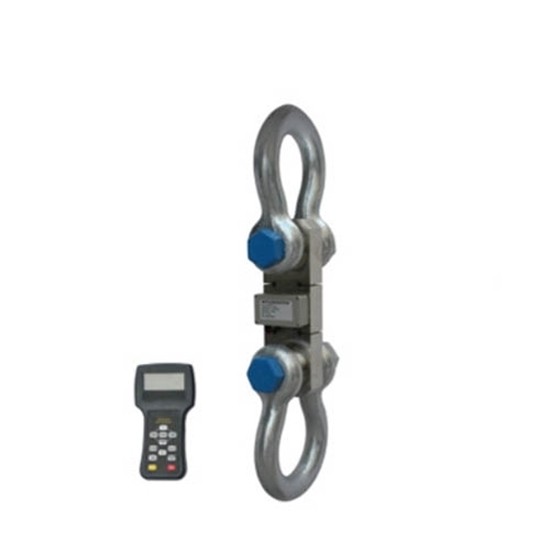

Waterproof Wireless Dynamometer 5 Ton/ 10 Ton/ 20 Ton To 200 Ton

0 reviews • Write a review

from

$950.23

Ex Tax: $950.23

Stock: In Stock
Model: RDDLZ-GWD500
Weight: 1.00
SKU: RDDLZ-GWD500

Available Options

Short Description

Capacity

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Waterproof wireless dynamometer comes with IP66 waterproof, capacity from 5 ton/10 ton/ 20 ton 30 ton to 200 ton and high precision reach 0.05% in the range of 1-50t, 0.1% in the range of 50t or more. Work temperature at -10℃～40℃, provides common SI units kilogram (kg), ton (t), pound (lb), newton (N), kilo newton (kN).

Specification

Model	RDDLZ-GWD500-5	RDDLZ-GWD500-10	RDDLZ-GWD500-20	RDDLZ-GWD500-30	RDDLZ-GWD500-50	RDDLZ-GWD500-100	RDDLZ-GWD500-150	RDDLZ-GWD500-200
Capacity Range	5000 kg	10000 kg	20000 kg	30000 kg	50000 kg	100000 kg	150000 kg	200000 kg
Capacity Range	5 ton	10 ton	20 ton	30 ton	50 ton	100 ton	150 ton	200 ton
Net weight (kg)	2.6 kg	4.3 kg	8.5 kg	14 kg	25 kg	53 kg	89 kg	128 kg
Product Standards	GB/T11883-2002 "Electronic Dynamometer"
Dynamometer/Gauge Display	Character height 25mm 5-digit LCD screen with backlight
Waterproof level	IP66
Initial zero range	20% F.S.
Manual zero range	4% F.S.
Tare range	100% F.S.
Reading stabilization time	≤5 seconds
Overload alarm value	F.S. +9e
Safety load	125% F.S.
Ultimate load	400% F.S.
Continuous use time	≥90 hours
Dynamometer battery	1 x 18650 lithium battery
Meter battery	1 x 18650 lithium battery
Operating temperature range	-10°C~40C (14°F ~ 1040F)
Use humidity range	≤85% at 20°C
Wireless distance	Open area 100 meters
Radio frequency	433MHz

Details

Capacity (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	2-Φ (mm)
5000 kg	190	110	60	137	65	30	70	27
10000 kg	245	110	70	168	65	36	76	41
20000 kg	312	110	94	206	65	45	85	54
30000 kg	370	110	114	246	65	50	90	60
50000 kg	460	110	140	309	65	60	100	73
100000 kg	580	110	180	389	65	80	120	99
150000 kg	690	110	220	456	65	90	130	11 2
200000 kg	800	110	250	534	65	100	140	134

Feature

Hand held dynamometer sturdy structure, with a novel integrated sensor design, the safety factor reaches 4 times.
Hand held dynamometer waterproof professional design, IP rating reaches 66.
The hand dynamometer software has two weight control points that can be input by itself, which are used for safety alarm and product weight control.
The wireless dynamometer measurement accuracy reaches 0.05% in the range of 1-50t, and 0.1% in the range of 50t or more.
All functions and units are clearly displayed on the LCD with white backlight.
The low power consumption design ensures that one 18650 lithium battery can work continuously for more than 100 hours when it is fully charged.
Common SI units are provided for easy application: kilogram (kg), ton (t), pound (1b), newton (N), kilo newton (KN).
Parameter setting and dynamometer calibration are completed through the wireless instrument 280D, which is convenient for use and management.
The waterproof dynamometer instrument provides a variety of operation functions: "zero", "tare", "peak hold", "accumulation", "accumulation query", "accumulation clear", "unit switching" and "voltage query".

Tips: What is hand held dynamometer?

Dynamometer is a portable measuring instrument used to measure various force values or loads. There are various classifications, which are divided into working force gauges and standard force gauges according to the objects of use.
The main indicators for evaluating the accuracy level of the dynamometer are repeatability R and stability Sb.
R reflects the change of the data obtained by loading (unloading) multiple times during a complete verification process.
Sb reflects the difference between the data obtained after a period of time and the last data.
