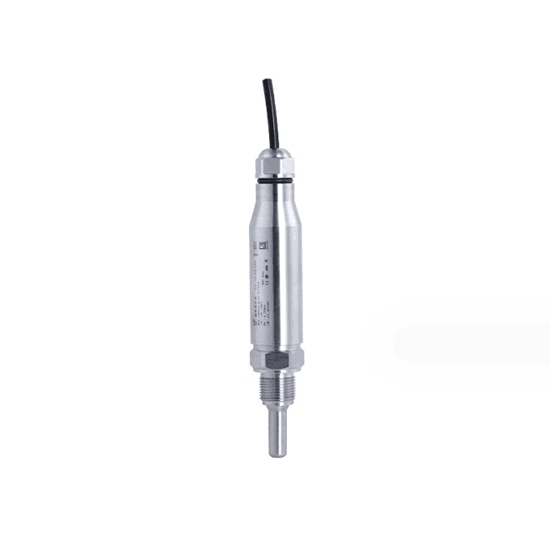

Waterproof Temperature Sensor, Pt100

0 reviews • Write a review

from

$121.37

Ex Tax: $121.37

Stock: In Stock
Model: RDDLZ-TS-CWDZ31A
Weight: 1.00
SKU: RDDLZ-TS-CWDZ31A

Available Options

Accuracy

Connection

Measuring Temperature Range

Insertion Depth

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The waterproof temperature sensor, compatible with liquids and gases, features a 1xPt100 element with 1/3B accuracy. It offers insertion depths from 30mm to 300mm, has IP68 protection, and an accuracy of 0.5%FS (optional 0.25%FS). Ideal for hydraulic systems, industrial gases, and equipment.

Specification

Model	RDDLZ-CWDZ31A
Measurement Medium	Liquid or gas (compatible with contact materials)
Measurement Range	-50~100°C, -50~300°C (optional)
Measuring Element	1×Pt100 (1/3B level)
Insertion Depth	30mm/50mm/100mm/150mm/200mm/300mm (optional)
Connection Methods	M20*1.5 thread, G1/4 thread, G1/2 thread, chuck 50.5mm (optional)
Stability	±0.1% FS/year
Communication Interval	400ms
Protection Level	IP68
Accuracy Grade	0.5%FS (default), 0.25%FS (optional)
Resolution	Digital output: ±0.1°C
Ambient temperature	-40~85℃
Protection Tube	304 Stainless Steel (contact with measured medium)
Response Time	6mm ≈ 18s in protective tube; 10mm ≈ 36s in protective tube
Process Connection	304 Stainless Steel (contact with measured medium)
Outer Casing	304 Stainless Steel
Cable	Φ5mm Teflon Shielded Cable (UV-resistant outer layer)
Note	Default cold end length 90mm
	The temperature for use without cold ends should be <120°C
	When the use temperature > 300 ℃, the cold end length should be > 90 mm

Feature

IP68 Protection Level: Dustproof and suitable for long-term immersion use.
High Accuracy Pt100 Sensor: Imported Pt100 thermistor with 1/3B accuracy for precise temperature measurements.
Durable Stainless Steel Construction: Entirely made of stainless steel for enhanced corrosion resistance and long-lasting durability.
Wide Temperature Measurement Range: Standard range of -50 to 300°C, with customizable options up to -200 to 500°C.

Size and Detail

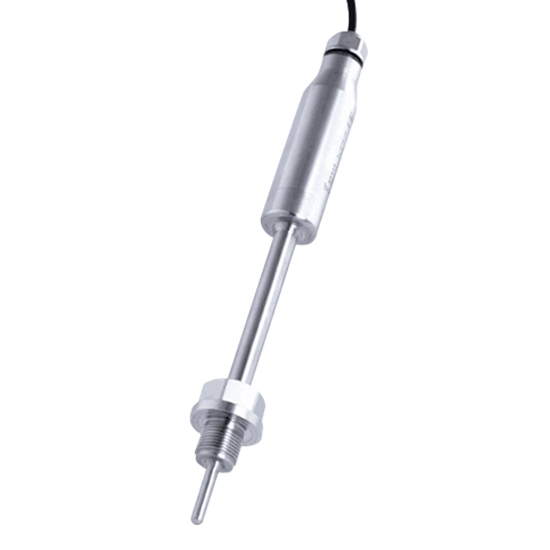

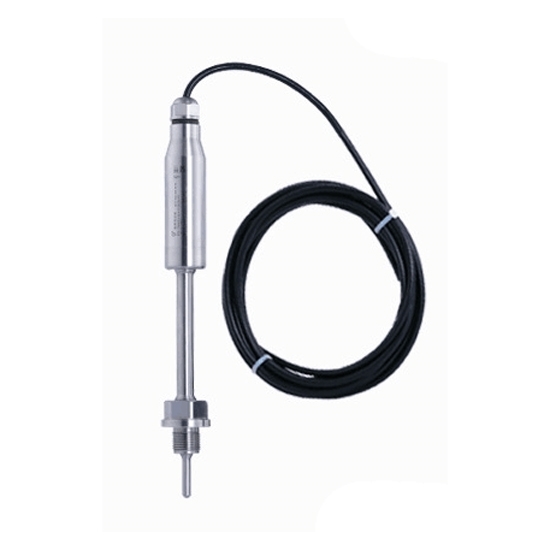

With Cold End

No Cold End

Signal Output Wiring Diagram

Application

Tips: What is cold junction compensation, and why is it important for Pt100 sensors?

Cold junction compensation is a technique used to ensure accurate temperature readings despite temperature variations at the sensor's connection point. In Pt100 sensors, which operate based on the resistance of platinum that varies with temperature, it’s crucial to account for the temperature at the "cold end" (or connection point) to maintain measurement accuracy. Cold junction compensation allows the sensor to correct any deviation caused by these external temperatures, ensuring that the reported temperature reflects only the actual measurement area. This is particularly important in industrial settings with fluctuating ambient temperatures.
