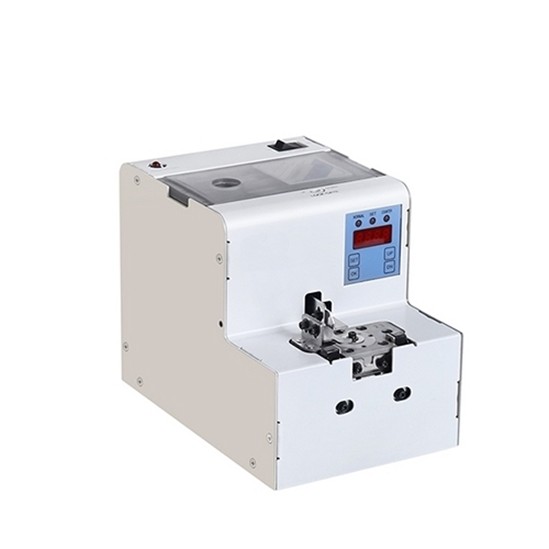

Turntable Screw Feeder Machine M0.8-M5.0

0 reviews • Write a review

from

$867.38

Ex Tax: $867.38

Stock: In Stock
Model: RDDLZ-RJ
Weight: 1.00
SKU: RDDLZ-RJ

Available Options

Short Description

Applicable Screws

Screw Size

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Auto screw feeder with input AC 100-240V (50/60HZ) and output 12V/2.0A, capacity reach to 200-220(CC), usually used in building materials, metallurgy, electric power, chemical industry.

Specification

Model		RDDLZ-ASF-RJ
Shell Material		White baking varnish
Applicable Screws Spec.		M0.8, M1.0, M1.2, M1.4, M1.7, M2.0, M2.3, M2.6, M3.0, M3.5, M4.0, M4.5, M5.0
Screw Head Shape		0/00/1/2(+)
Screw Thread Length		≤1 2mm (without screw head thickness)
Screw Head Thickness		20.2mm
Installable Screw Quantity	at M1.2	2000 pcs
	at M3.5	600 pcs
Supply Speed (Sec/EA)	high	0.7
	low	1.5
Input		AC 100-240V (50/60Hz)
Output		12V/2.0A
Capacity		200~220 (CC)
Weight		3.1kg

Feature

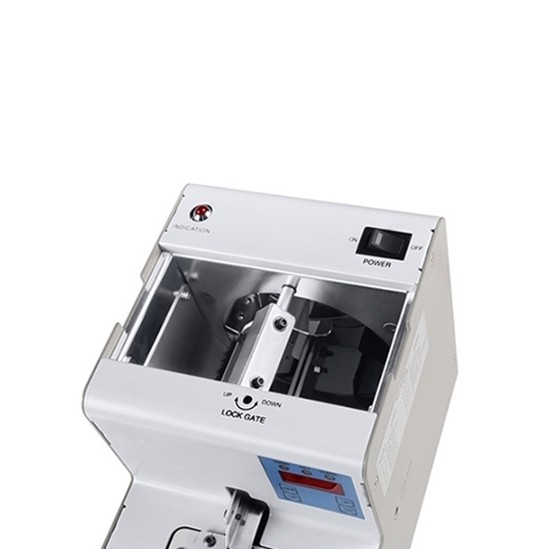

Shell material of the automatic screw feeder is white baking varnish, cross-feeding mechanism, and precise positioning point. Screw discharging is smooth, fast speed, high precision, and strong stability, and it is not easy to slipping, stucking, bonding, etc.
Vibration, drum and turntable of the automatic screw feeder are driven by brushless motors. Digitalization control, can perform efficient function setting operation on drum motor, turntable motor and vibration motor. With individual counting function and total counting function.
The track adopts full-line cutting precision processing, track gap is uniform and flat, overall tolerance is small.
Professional design for automatic locking screw machines, such as XY-axis, 3-axis, 4-axis and screw-locking robots, etc.

Details

Applicable Screws

Automatic Screw Feeder Dimension Drawing (MM)

Tips: How to maintain screw feeder machine?

Keep ventilated and dry inside the screw loader. Regularly perform plug-in ventilation to check performance and clean the outer surface of the chassis.
Regularly clean the screw feeder silo to ensure that the silo is clean. It is recommended to use high-pressure air to blow out the residue in the silo.
Regularly clean the nail feeding system to ensure the smooth operation of the nail feeding system. It is recommended to regularly add some grease to the moving parts.
Regularly clean the screw track to ensure that the screw runs smoothly in the track. When not in use, wipe with an oily cloth as much as possible, and keep water as little as possible.
Please turn off the power when not in use. Check frequently to prevent rodent damage, so as not to affect future use. Due to the intelligence and precision of its structure, if you have any problems with use or need maintenance, please contact the manufacturer in time, and do not disassemble it by yourself.
