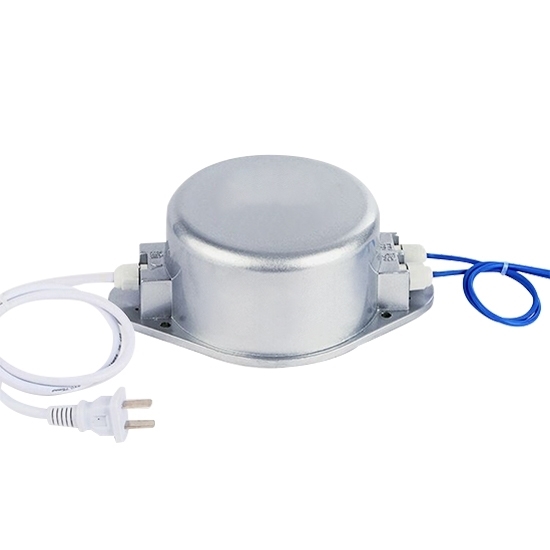

Toroidal Power Transformer, IP67, 400W/500W

0 reviews • Write a review

from

$258.23

Ex Tax: $258.23

Stock: In Stock
Model: RDDLZ-T-C400VA
Weight: 1.00
SKU: RDDLZ-T-C400VA

Available Options

Short Description

Rated Power

Primary Voltage (AC)

Secondary Voltage (AC)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

IP67 protection rating toroidal transformer, is available in 360VA, 400VA and 500VA rated power, this toroidal power transformer ensures efficient energy conversion with minimal electromagnetic interference. Designed for input voltages of 220V and output voltages of 12V, 24V or other custom voltages. The IP67 rating guarantees protection against dust and water immersion, ensuring longevity and consistent performance in harsh conditions. Perfect for industrial, medical, and outdoor applications.

Features

The input line of this waterproof transformer is cold-resistant, UV-resistant, and anti-aging. The plug is detachable for easy power-on testing.
Toroidal power transformer has added an LED indicator light, which can easily identify the working status, making work installation and maintenance more convenient.
Waterproof toroidal transformer is specially selected for thermal conductive resin and fully encapsulated with epoxy resin.
Toroidal transforme has a built-in all-copper toroidal transformer with sufficient output power, standard voltage, and stable operation.
The aluminum shell of the transformer dissipates heat, and heat dissipation in outdoor high-temperature environments is the key. The quality of heat dissipation directly affects the lifespan.

Specifications

Model	RDDLZ-T-C400VA
Primary Voltage	220V
Secondary Voltage	12V/24V
Rated Power	360VA/400VA//500VA (W)
Frequency	50Hz/60Hz
Power Phases	Single phase
Moisture Proof Method	Encapsulated type
Cooling Method	Natural cooling
Cooling Type	Dry type
Frequency Characteristics	Low frequency
Winding Type	Double winding
Core Type	Ring type
Core Shape	Ring type
Appearance Structure	Horizontal type
Efficiency (η)	≥90%
Hole Distance	158mm*70mm
Product Volume	235mm165mm80mm
Waterproof Grade	lP67 (CE+ Inspection Report)
Weight	360VA (6kg), 400VA (7kg), 500VA (8kg)
Status Indicator	LED working indicator
Epoxy Potting	Thermal conductive resin potting
Protective Device	Temperature & Overload protection
Waterproof Housing	Round aluminum housing
Input Line	20.75mm20.9m VDE
Output Line	3321-14#0.3m blue-blue

Epoxy Potting

Production Process

Tips: Maintenance and inspection of toroidal power transformer

Regularly inspect the toroidal power transformer for signs of wear, damage, or overheating.
Clean the power transformer surface periodically to remove dust and debris, ensuring optimal heat dissipation.
Disconnect the power supply before performing any maintenance or adjustments to avoid electrical shock.
Use appropriate personal protective equipment (PPE) when handling electrical components.
Monitor the torofal transformer’s performance using appropriate instruments to ensure it operates within the specified parameters.
Keep an eye on any unusual noise or temperature increases, which may indicate underlying issues.

By following these tips, you can ensure that your toroidal power transformer operates efficiently and reliably, providing stable power for your applications.
