Temperature Input Signal Isolator, Input K/B/S/PT100, Ouput 0-20mA/4-20mA

0 reviews • Write a review

from

$94.97

Ex Tax: $94.97

Stock: In Stock
Model: RDDLZ-TISI-B-603S
Weight: 1.00
SKU: RDDLZ-TISI-B-603S

Available Options

Short Description

Output Signal

Input Signal

Number of Channels

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

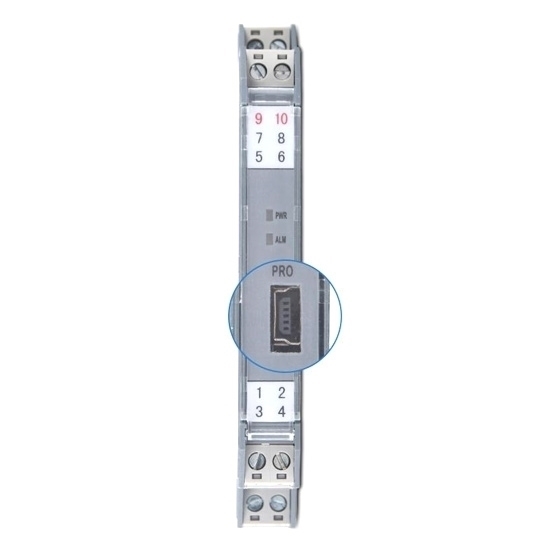

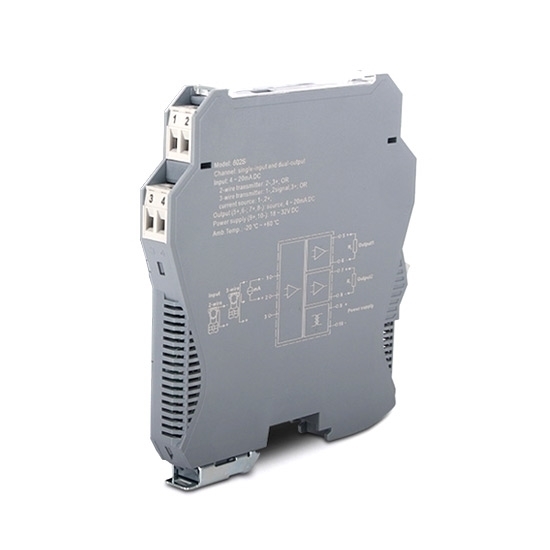

Signal isolator has input signals of K/B/S/PT100 and output signals of 4-20 mA/0-20 mA. The input, output and working power supply are isolated from each other. It is especially suitable for the equipment and instruments that need electrical isolation.

Specification:

Model	RDDLZ-B-603S
Allowed Input Signal	thermocouple: K, E, S, B, J, T, R, N,PT100 and WRe3-WRe25, WRe5-WRe26
Output Signal Type	DC current: 0(4) mA～20 mA; 0 mA～10 mA
Output Signal Type	DC voltage: 0(1)V～5V; 0V～10V
Output Ripple	< 5mV rms（load 250Ω）
Accuracy of Isolated Transmission	25 ℃ ± 2 ℃, excluding cold junction
Response Time	≤0.5s
Temperature Drift	40 ppm/℃
Accuracy of Cold Junction Temperature Compensation	±1 ℃ (preheating time of 10 minutes)
Range of Cold Junction Temperature Compensation	−20 ℃ ～ +60 ℃
Lead Resistance	≤ 20Ω/lead
Load Capacity	0(4) mA～20 mA: ≤550Ω; 0 mA～10 mA: ≤1.1 kΩ; 0(1)V～5V: ≥1 MΩ; 0V～10V：≥2 MΩ
Range of Service Voltage	18V DC～32V DC
Insulation Resistance	≥100 MΩ
EMC	EMC conforms to IEC61326-3

Dimension (Unit: mm)

Wiring Diagram:

Tips: What is the Temperature Drift in the Signal Isolator?

The temperature drift is caused by the heat generated during the operation of the signal isolator, which leads to the decrease of the performance index of the electronic components used in the isolator and the change of the output value of the isolator. Isolator selection should require the temperature drift value as small as possible. In order to prevent the temperature drift, Parokan isolator products for low power consumption, micro power consumption design, so that the isolator itself when the heat is very small or even no heat, so as to prevent the use of components due to heat caused by the product work performance indicators decline, to prevent temperature drift. The user should choose the product with small temperature drift when choosing.
