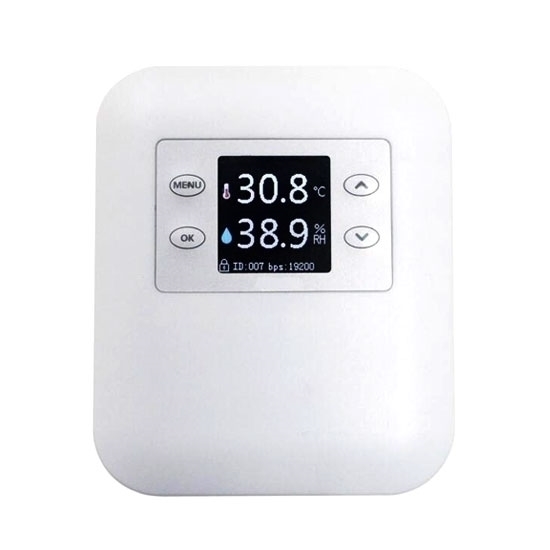

Temperature and humidity transmitter built-in alarm module, RS485 output signal, TFT color display.

Application: Temperature and humidity transmitter is widely used in electronics, pharmaceuticals, food, storage, tobacco, textiles, weather and other industries.
Specification:

Model	RDDLZ-TAHT-AW2485Y
Weight	47.2g
Dimension (LWH)	1008421mm
Output signal	RS485
Communication protocol	MODBUS RTU
Supply voltage	DC 9-36V/USB: 5V
Measuring range of relative humidity	0~99.9%RH
Measuring range of temperature	-40~+80℃
Accuracy of humidity	±2%RH
Accuracy of temperature	±0.3℃
Resolution	0.1℃/0.1%RH
Long-term stability	＜0.5%RH/year, ＜0.1℃/year
Current consumption	＜50mA (5V)
Sampling period	2s
Maximum communication distance	1000m
Alarm modes	High humidity, low humidity, high temperature, low temperature
Housing material	Engineering plastics
Working environment	Temperature: -40~80℃, humidity: 0~99.9% no condensation
Storage environment	Temperature: 0~60℃, humidity: ＜90%RH
Wiring	White: RS485 B-, black: GND, red: V+, yellow: RS485 A+

Wiring diagram:

Details

Tips: Applications of wireless temperature and humidity sensor
Wireless temperature and humidity sensor is suitable for apartment, production workshop and all kinds of storeroom, such as pharmaceutical warehouse, tobacco warehouse, record room, museum, cold storage, computer room and data center, as well as the remote centralized monitoring and control of temperature and humidity for freezer, incubator and cold chain transporter.
