Temperature And Humidity Sensor, Outdoor, One-wire

0 reviews • Write a review

from

$83.92

Ex Tax: $83.92

Stock: In Stock
Model: RDDLZ-TAHS-AM2306
Weight: 1.00
SKU: RDDLZ-TAHS-AM2306

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

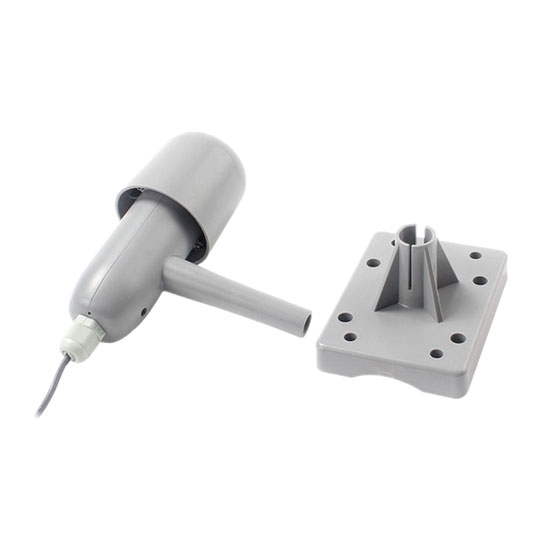

Temperature and humidity sensor has a capacitive humidity sensor and a digital temperature sensor, standard one-wire interface, outdoor wall and pole mounted.

Application: Temperature and humidity sensor is widely used in weather station, HVAC, dehumidifiers, automobile, data loggers, humidity regulators, and humidity detection and control system.
Specification:

Model	RDDLZ-TAHS-AM2306
Weight	438.9g
Dimension	70.8108147.7mm
Communication mode	One-wire
Supply voltage	DC 3.3-5.5V
Measuring range of relative humidity	0~99.9%RH
Measuring range of temperature	-40~+80℃
Accuracy of humidity	±2%RH
Accuracy of temperature	±0.3℃
Resolution	0.1℃/0.1%RH
Long-term stability	＜0.5%RH/year, ＜0.1℃/year
Power consumption	＜300μA
Sampling period	2s
Response time	＜5s
Housing material	PC
Working environment	Temperature: -40~80℃, humidity: 0~99.9% no condensation
Storage environment	Temperature: 0~60℃, humidity: ＜95%RH
Wiring	1 red: VDD, 2 yellow: SDA (serial data), 3 black: GND

Dimensional drawing (unit: mm):

Pin assignment:

Tips: What is a temperature and humidity sensor?
Temperature and humidity sensor is a kind of sensor that detects the temperature and humidity of the external environment. It converts the measured ambient temperature and humidity into electrical (frequency) signals for easy processing, display and recording. It is an important chemical sensor, and is widely used in warehousing, industrial production, process control, environmental monitoring, household appliances and meteorology. The temperature and humidity sensor is composed of three parts: temperature and humidity sensing elements, transformation elements and measuring circuits. For humidity sensing elements, the common structural forms include capacitive type and resistive type, which transmits the measured humidity by detecting the change of capacitance and resistance respectively.
