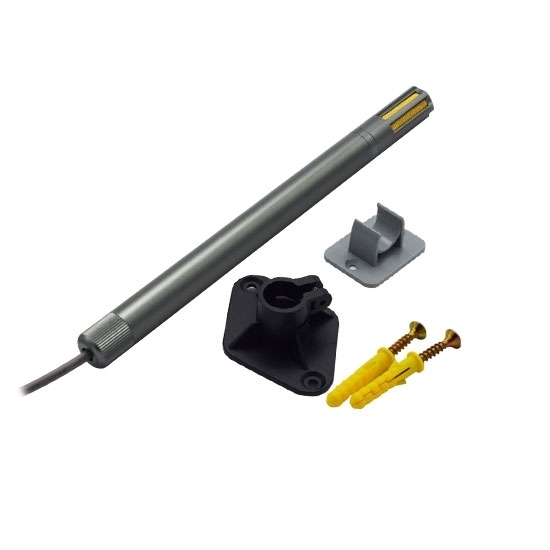

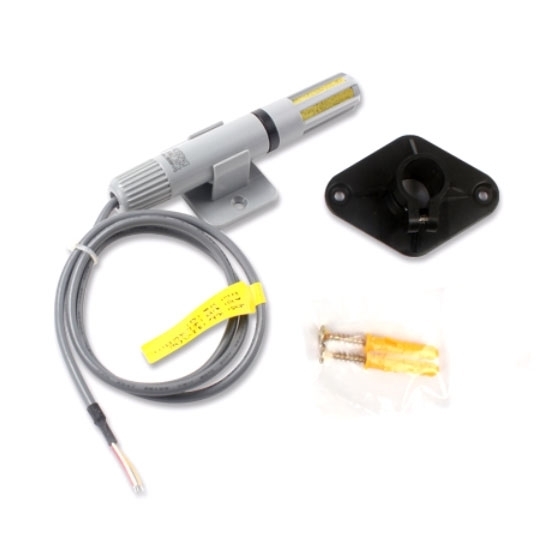

Temperature And Humidity Sensor, Duct/Wall Mounted, I2C

0 reviews • Write a review

from

$68.69

Ex Tax: $68.69

Stock: In Stock
Model: RDDLZ-TAHS-AM2315/5A
Weight: 1.00
SKU: RDDLZ-TAHS-AM2315/5A

Available Options

Short Description

Item

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Temperature and humidity sensor has a capacitive humidity sensor and a digital temperature sensor, standard I2C interface, duct and wall mounted.

Application: Temperature and humidity sensor is widely used in HVAC, dehumidifiers, automobile, data loggers, humidity regulators, and humidity detection and control system.
Specification:

Item	AM2315A	AM2315
Weight	50g	40g
Dimension	Ф16, length 150mm	Ф16, length 97.4mm
Communication mode	I2C
Supply voltage	DC 3.3-5.5V	DC 3.3-5.5V
Measuring range of relative humidity	0~99.9%RH
Measuring range of temperature	-40~+80℃
Accuracy of humidity	±2%RH
Accuracy of temperature	±0.3℃
Resolution	0.1℃/0.1%RH
Long-term stability	＜0.5%RH/year, ＜0.1℃/year
Power consumption	＜300μA
Sampling period	2s
Response time	＜5s
Housing material	Aluminum alloy	ABS
Working environment	Temperature: -40~80℃, humidity: 0~99.9% no condensation
Storage environment	Temperature: 0~60℃, humidity: ＜95%RH
Wiring	1 red: VDD, 2 yellow: SDA (serial data), 3 black: GND, 4 white: SCL (serial clock)

Dimensional drawing (unit: mm):

Pin assignment:

Details

Tips: Temperature and humidity sensor for duct mounted
Duct temperature and humidity sensor adopts the temperature and humidity sensing module to detect the temperature and humidity, and carries out signal processing through high performance SCM. Meanwhile, it outputs various analog signals or standard signals. The sensor is widely used in building automation, climate and HVAC signal acquisition, museum and hotel climate station, greenhouse and medicine industry.
The duct temperature and humidity sensor adopts convenient duct mounted method and outputs standard analog signal 4-20mA, 0-5V, 0-10V. It can even output the RS485 digital signal, which can be directly applied to various control systems. The machine has a better performance and a better long-term stability. Such a temperature and humidity sensor is generally suitable for a temperature range of -40-120℃ and a humidity range of 0~100%RH. The warranty period is generally one year. After the warranty period, the measurement accuracy will have temperature shift. To ensure the measurement accuracy, it is suggested that the customer calibrates the product accuracy after the product is used for 1~2 years.
