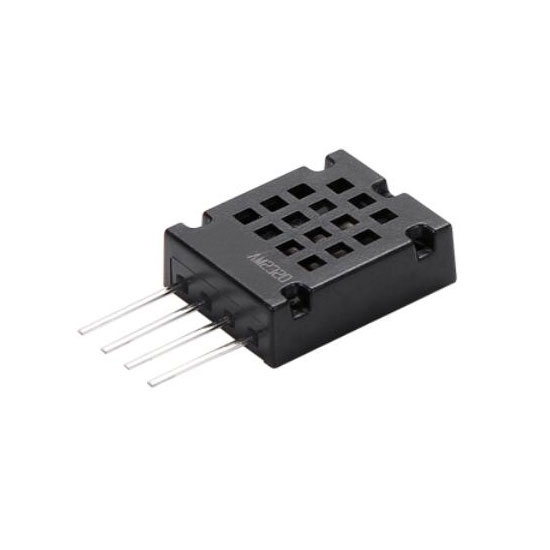

Temperature And Humidity Sensor, Capacitive, One-wire/I2C

0 reviews • Write a review

from

$24.92

Ex Tax: $24.92

Stock: In Stock
Model: RDDLZ-TAHS-AM2320/2
Weight: 1.00
SKU: RDDLZ-TAHS-AM2320/2

Available Options

Short Description

Item

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Temperature and humidity sensor has a capacitive humidity sensor and a digital temperature sensor, optional one-wire/I2C communication mode.

Application: Temperature and humidity sensor is widely used in HVAC, dehumidifiers, automobile, data loggers, humidity regulators, and humidity detection and control system.
Specification:

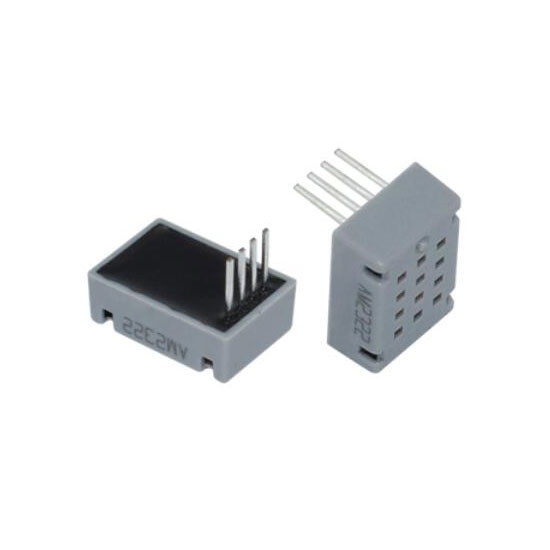

Item	AM2320	AM2322
Weight	0.5g
Dimension (LWH)	12.14.515.0mm	7.84.011.3mm
Communication mode	Optional one-wire and I2C
Supply voltage	DC 3.3-5.5V	DC 3.1-5.5V
Measuring range of relative humidity	0~99.9%RH
Measuring range of temperature	-40~+80℃
Accuracy of humidity	±3%RH	±2%RH
Accuracy of temperature	±0.5℃	±0.3℃
Resolution	0.1℃/0.1%RH
Long-term stability	＜0.5%RH/year, ＜0.1℃/year
Power consumption	＜350μA	＜200μA
Sampling period	2s
Response time	＜5s
Housing material	PC
Working environment	Temperature: -40~80℃, humidity: 0~99.9% no condensation
Storage environment	Temperature: 0~80℃, humidity: ＜95%RH
Wiring	1 red: VDD, 2 yellow: SDA (serial data), 3 black: GND, 4 white: SCL (serial clock, or connect to ground in one-wire mode)

Dimensional drawing (unit: mm):

Pin assignment:

Tips: Recovery processing of temperature and humidity sensor
The temperature and humidity sensor placed under extreme working conditions or chemical vapors can be restored to standard conditions by following procedures.

Maintain temperature and humidity sensor 2 hours (dry) at 45 ℃ and the humidity ＜10%RH.
Then maintain temperature and humidity sensor more than 5 hours at 20-30℃ and the humidity ＞70%RH.
