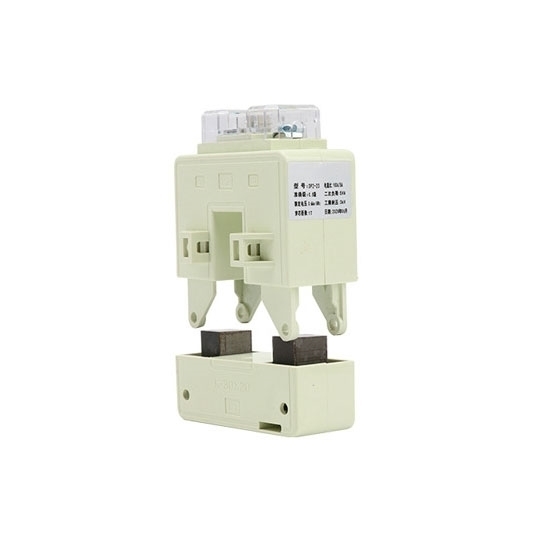

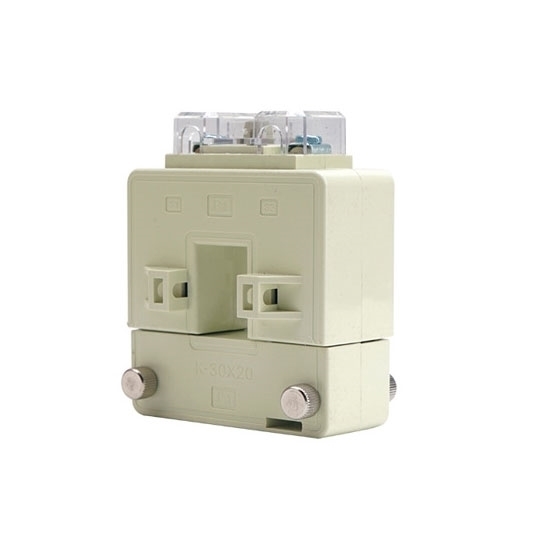

Split Core Current Transformer, 2500/5A

0 reviews • Write a review

from

$173.49

Ex Tax: $173.49

Stock: In Stock
Model: RDDLZ-SCT-DP2500
Weight: 1.00
SKU: RDDLZ-SCT-DP2500

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2500A Split core current transformer can be used with relay protection, measurement and metering devices, using ABS flame retardant housing, pure copper winding, high reliability, wide measuring range, strong anti-interference ability, and high reliability, wide measuring range, strong anti-interference ability.

Specification

Model: RDDLZ-SCT-DP812-2500
Equipment Maximum: 0.66/0.72kVrms
Accuracy Class: 0.5
Working Frequency: 50/60Hz
Primary Current: 2500A
Secondary Output: 5A
Ratio Difference: ≤±1.0%
Phase Difference: ≤ soil 10 points
Dielectric Strength: 2.5kV/1mA/1min
Insulation Resistance: DC500V/1000mΩ/min
Shell: ABS, Flame retardant grade 94-V0
Skeleton: PBT
Iron Core: Nickel steel or nanocrystal
Internal Structure: Environmentally friendly epoxy resin casting
Construction Plan: Screw fixing
Operating Temperature: -25°C~75°C
Ambient Humidity: ≤85%
Wiring: Wiring terminals

2500A Split Core Current Transformer Dimension

A	B	C	D	E	F	G
150	203	59	183	122	82	40

Details

Split core current transformer applications

Current measurement, monitoring and protection of electrical wiring and equipment
Current and power measurement of electric motors for lighting, air compressors for heating and ventilation systems, air conditioning equipment and automation control systems.
Current power and energy monitoring devices.
Relay protectors
