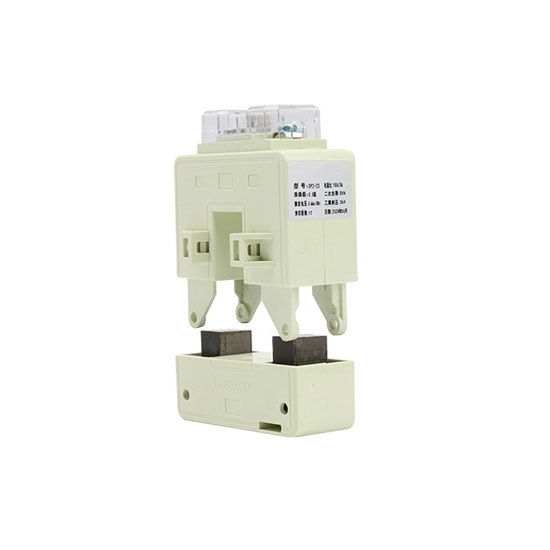

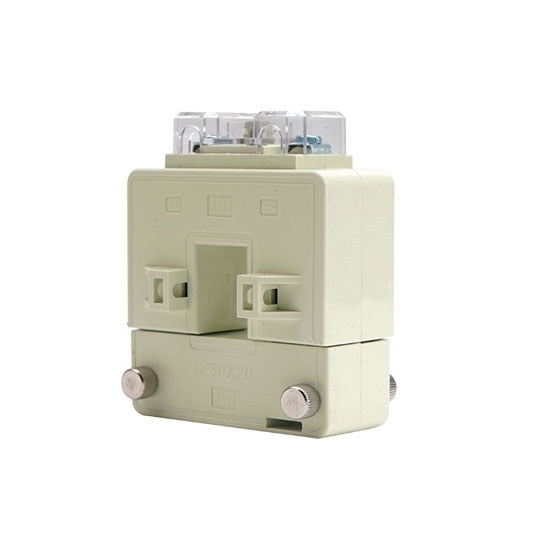

Split Core Current Transformer, 1500/5A

0 reviews • Write a review

from

$164.89

Ex Tax: $164.89

Stock: In Stock
Model: RDDLZ-SCT-DP1500
Weight: 1.00
SKU: RDDLZ-SCT-DP1500

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Split core current transformer 1500A primary input, 5A secondary output, precision 0.5 level, suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power system.

Specification

Model: RDDLZ-SCT-DP510-1500
Equipment Maximum: 0.66/0.72kVrms
Accuracy Class: 0.5
Working Frequency: 50/60Hz
Primary Current: 1500A
Secondary Output: 5A
Ratio Difference: ≤±1.0%
Phase Difference: ≤ soil 10 points
Dielectric Strength: 2.5kV/1mA/1min
Insulation Resistance: DC500V/1000mΩ/min
Shell: ABS, Flame retardant grade 94-V0
Skeleton: PBT
Iron Core: Nickel steel or nanocrystal
Internal Structure: Environmentally friendly epoxy resin casting
Construction Plan: Screw fixing
Operating Temperature: -25°C~75°C
Ambient Humidity: ≤85%
Wiring: Wiring terminals

1500A Split Core Current Transformer Dimension

A	B	C	D	E	F	G
142	190	67	170	102	52	48

Details

Tips: 1500A Split core current transformer features

Split core current transformer has a double threaded mounting for tightness and security, and is also portable.
Two built-in mounting options for base plates and wires.
Larger internal diameter to accommodate large diameter cables and bus bars.
Various sizes to accommodate all current wire installations.
