Features

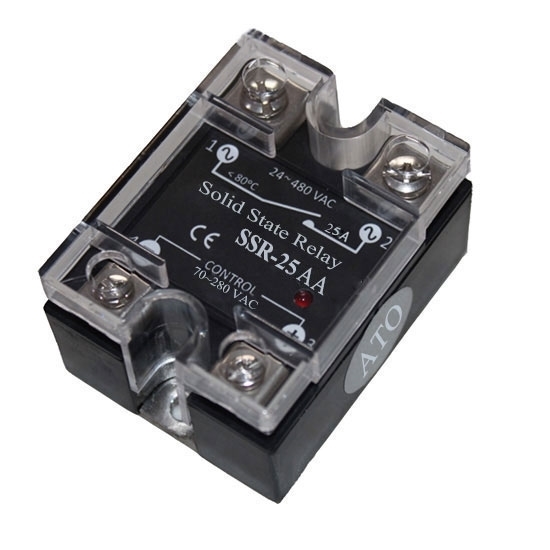

25A 70-280V AC to AC solid state relay (SSR) features high structural strength, good impact resistance, and strong shock resistance. The SSR offers a reliable switching the commercial and industrial loads, such as computer peripheral interface device, printing machine, molding machine, food machine, packaging machine, and so on.

• Built in RC absorption
• Photoelectric isolation
• SCR output
• LED indicator for operation status
• Removable protective cover for safety
• Panel mount
• Zero-crossing switch type

Specification

Note:

1. When the load is a resistive load, the maximum load current of the selected SSR should be 2~3 times greater than the actual load current;

2. When the load is an inductive load, the maximum load current of the selected SSR should be more than 7~8 times the actual load current.

3. When the maximum load current is higher than 10A, a heat sink must be installed to the solid state relay, or the SSR relay should be mounted on a metal base plate with heat dissipation effect, and the thermal grease is applied between them.

Dimension (Unit: mm)

Wiring Diagram

Tips: Solid state relays' advantages and disadvantages

Solid state relays work reliably and have a long life, no noise, no spark, no electromagnetic interference, fast switching speed, strong anti-interference ability, and small size, impact resistance, vibration resistance, anti-explosion, moisture proof, corrosion resistance, compatibility with logic circuits such as TTL, DTL, HTL. They can directly drive high-current load with tiny control signals.

The main disadvantage is the existence of on-state voltage drop (corresponding cooling measures needed), off-state leakage current, common use in AC and DC conditions, fewer contact sets, as well as poor indicators including overcurrent and overvoltage and voltage rise rate, current rise rate, etc.
