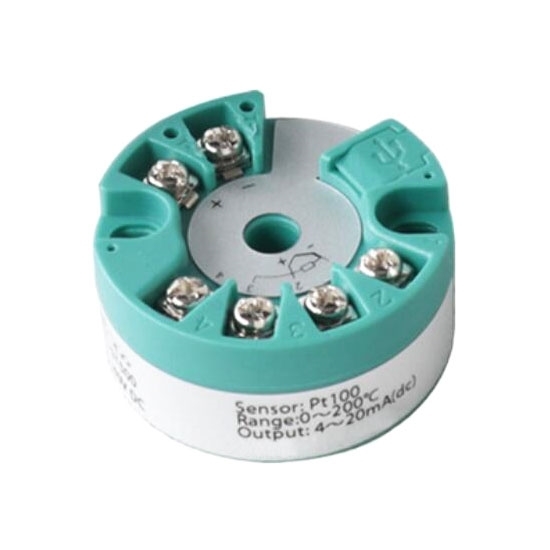

Smart Temperature Transmitter, RTD/Thermocouple/Resistance/Voltage

0 reviews • Write a review

from

$60.39

Ex Tax: $60.39

Stock: In Stock
Model: RDDLZ-TEMPT-ST500
Weight: 1.00
SKU: RDDLZ-TEMPT-ST500

Available Options

Short Description

Output Signal

Input Signal

Additional Options

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Temperature transmitter supports RTD, thermocouple, resistance and voltage input signal.

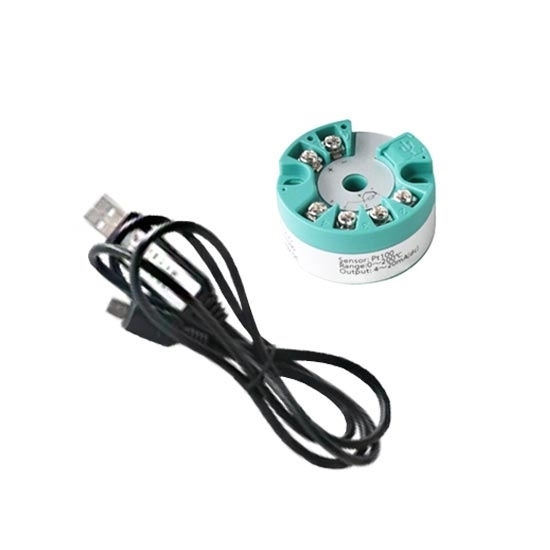

Note: If you customize the sensor input type, the USB cable needs to be purchased.

Specification:

Model	RDDLZ-TEMPT-ST500
Accuracy	≤0.1%FS
Power supply	DC 12-40V
Input signal*	RTD (PT100, Cu50), thermocouple (B/E/J/K/N/R/S/T), resistance, voltage (mV)
Output signal *	4-20mA, 1-5V
Digital communication *	Hart protocol (optional)
Response time	≤1s
Working temperature	-40~+85℃
Ingress protection	4g^2-150Hz
Settable parameter	Input signal, measuring range, cold junction compensation (automatic adjusting)
Configuration	PAD or PC

Input signal and measuring range chart:

Type of sensor	Measuring range	Minimum measuring range	Connection type
PT100	-200~+850℃	10K	3-wire
Cu50	-50~+150℃	10K	3-wire
B	400~+1820℃	500K	2-wire
E	-100~+1000℃	50K	2-wire
J	-100~+1200℃	50K	2-wire
K	-180~+1372℃	50K	2-wire
N	-180~+1300℃	50K	2-wire
R	-50~+1760℃	500K	2-wire
S	-500~+1760℃	500K	2-wire
T	-200~+400℃	50K	2-wire
Resistance transmitter	0~4500Ω	10Ω	2-wire

Dimensional drawing (unit: mm):

Installation diagram:

Wiring diagram:

Tips: Common faults for a temperature transmitter

There's no change at the transmitter output when the temperature of the measured medium increases or decreases. This is mostly caused by the seal of the temperature transmitter, perhaps the temperature transmitter is not sealed well, or when it is welded, a small hole is bored on the sensor accidentally. In this case, the solution is to replace the transmitter shell.
The output signal is instable. This may be caused by the temperature source itself. The temperature source doesn't have stable temperature. If the instrument can't display stably, then it doesn't have enough anti-interference ability.
Output error of the temperature transmitter is large. Many reasons may cause this problem, such as the thermal resistance wire of the selected temperature transmitter is incorrect, thus leading to measuring range error. Or the temperature transmitter is not correctly calibrated when it left the factory.
