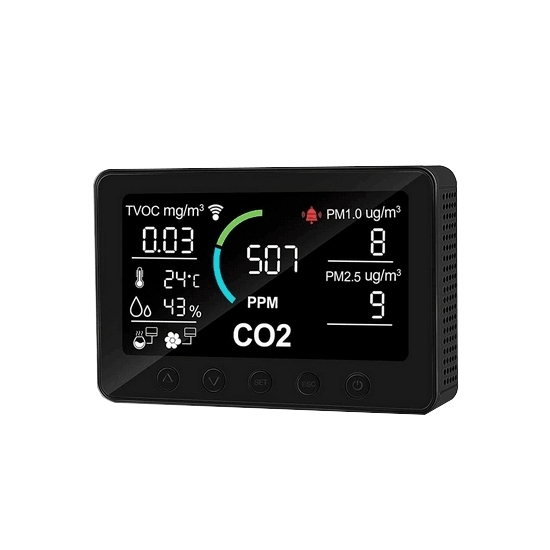

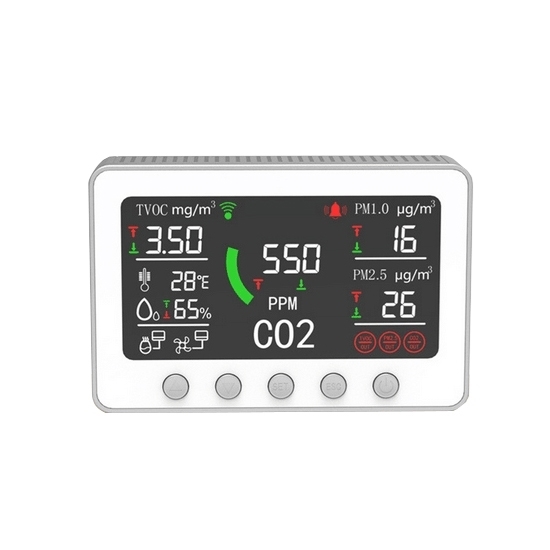

Smart Air Quality Tester, CO2/ PM2.5/ TVOC/ PM1.0/TEMP/ HUM

0 reviews • Write a review

from

$217.92

Ex Tax: $217.92

Stock: In Stock
Model: RDDLZ-AIR-PT02
Weight: 1.00
SKU: RDDLZ-AIR-PT02

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Air quality tester supports smart Tuya App/Data logger connection, with accurate RS485/Relays signal output. Auto Calibration as well as wireless lot controller. There is NDIR sensor to test air accurately in the smart air quality sensor. Air quality detector with 7 inch Big LCD display to show data every day. Light weight and easy to take. The sensors and function can be customized.

Feature

Indoor air quality tester detects CO2, PM2.5, TVOC, PM1.0 in the real time and remote controlled through smart Tuya App/ Data logger and RS485/ Relays signal output. Auto or Manual Calibration so that we easy to apply.
Wireless lot controller with accurate NDIR sensor on 7 inch Big LCD Display. There is RS485 data output/historical data record query, and data import to customer cloud, specify applet data view.
PT02 ODM customization service. Support for custom sensors and functions and LORA module communication.

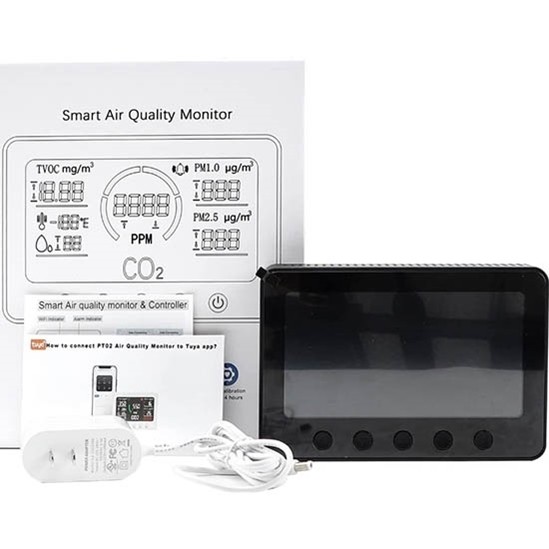

Custom appearance mold opening (with MOQ requirements). Included the Smart Tuya Plug (UK Plug), so that you can view air quality on Tuya App via Wi-Fi.
Connected with humidifiers, air purifiers, fans and irrigation kits according to the threshold values. Note: only Wi-Fi (2.4Hz).

Specification

Model	RDDLZ-PT02
Measurement Object	CO2, TVOC, PM2.5, PM1.0 , Temperature, Humidity
Wifi Connection	Tuya App/ Data Logger
CO2	400- 5000 ppm
TVOC	0~ 9.99 mg/m3
PM2.5	0~100 μg/m3
PM1.0	101-500 μg/m3
Temperature Measurement Range	-20°C~ 60°C
Humidity Measurement Range:	5%~ 95% RH
CO2 Accuracy	± 50 ppm or ± 5% of reading
Carbon Dioxide Indicator	0- 499 ppm-- Green Light
	500- 999 ppm--Yellow Light
	1000- 1499 ppm-- Orange Light
	over 1500 ppm--Red Light
TVOC	More than 0.5 mg/m3- alarm prompt
PM1.0/ PM2.5	More than 75 μg/m3 - alarm prompt
Temperature Measurement Range	-20°C- 60°C ± 2%
Humidity Measurement Range	5%- 95% ± 5%
Material	Fireproof ABS + LCD
Power Supply	DC 12V
Product Size	18039119 (mm)
Preheat Time	< 7 seconds
Weight	1.2 (kg)

Note

If you need an indoor air quality monitor with other measuring ranges unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.
We also provide other air quality monitors for home. If you have any questions, please feel free to contact us.

Details

Tips: What are advantages of indoor air quality detector?

Air quality monitor, a product that can detect formaldehyde, PM2.5, TVOC and temperature and humidity in real time.
Easy to take. Accurately measure the concentration of pollutants through internal imported sensor and calculate the air quality index AQI, and alarm when the concentration exceeds the standard.
Detect air quality to prevent people from toxic gas at home in the real time.
