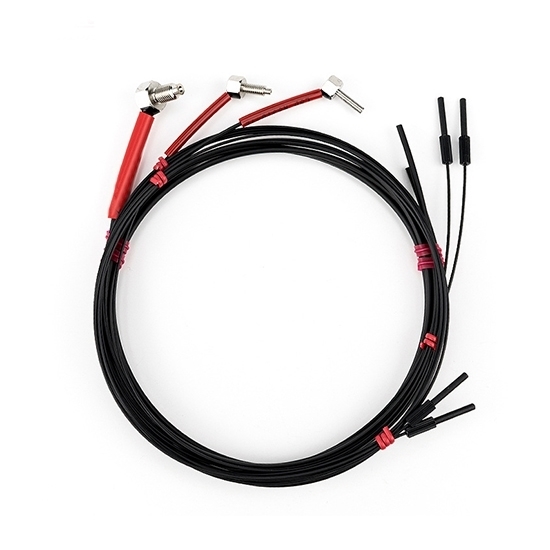

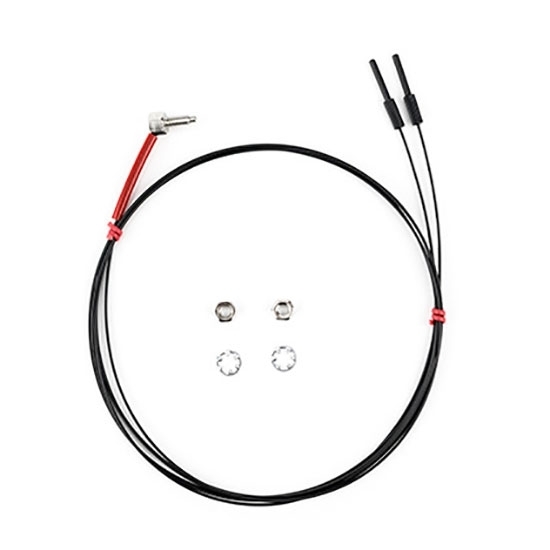

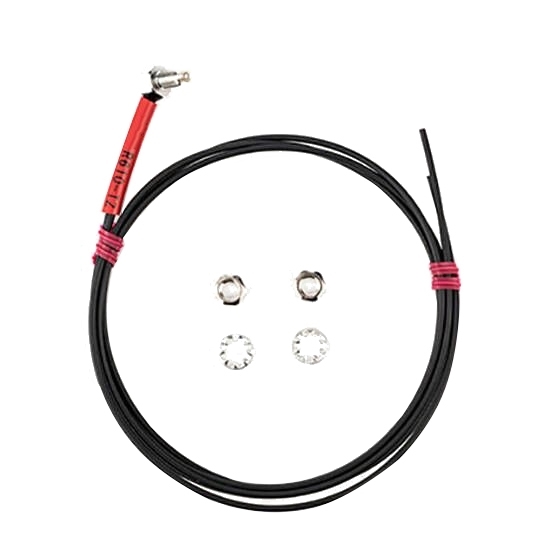

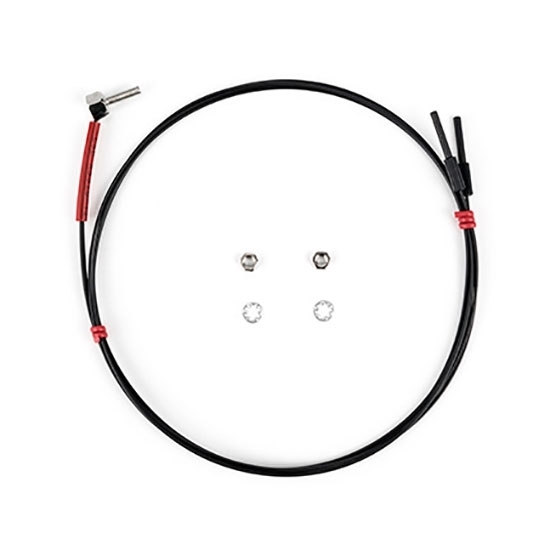

Right Angle Fiber Optic Sensor

0 reviews • Write a review

from

$87.57

Ex Tax: $87.57

Stock: In Stock
Model: RDDLZ-FIBER-RAS
Weight: 1.00
SKU: RDDLZ-FIBER-RAS

Available Options

Cable Length

With Matched Amplifier

Thread Size

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Great price right angle fiber optic sensor for sale, enjoy the perfect combination of high sensitivity and durability! Equipped with a variety of fiber lengths (1M or 2M) to choose from. Fiber optic core diameter up to 1.0mm, detection distance 0~48/64mm, even as small as Φ0.1mm target can be accurately captured. Stainless steel and copper-nickel plated tubes to enhance pressure resistance and durability. CE certification ensures high quality and safety.

Specification

Model	RDDLZ-LSDRS310-TZ	RDDLZ-LSDRS410-TZ	RDDLZ-LSDRS610-TZ	RDDLZ-LSDRS320-TZ	RDDLZ-LSDRS420-TZ	RDDLZ-LSDRS620-TZ
Thread Size	M3*0.5mm	M4*0.75mm	M6*0.75mm	M3*0.5mm	M4*0.75mm	M6*0.75mm
Fiber Optic Cable Length	1M	1M	1M	2M	2M	2M
Fiber Core	0.5mm	0.5mm	1.0mm	0.5mm	0.5mm	1.0mm
External Diameter	1.0mm	1.0mm	2.2mm	1.0mm	1.0mm	2.2mm
Sensing Distance	5~60mm±10%	10~60mm±10%	20~80mm±10%	5~60mm±10%	10~60mm±10%	20~80mm±10%
Adjustable Sensing Distance	0~48mm	0~48mm	0~64mm	0~48mm	0~48mm	0~64mm
Standard Detector	200*200mm white cardboard
Fiber Material	Plastics
Minimum Detection Object	Φ0.1mm
Sheath Color	Red
Certification	CE
Fiber Tube Material	Stainless steel	Stainless steel	Copper nickel plating	Stainless steel	Stainless steel	Copper nickel plating
Product Size	M3*16.5-TZ	M4*15.5-TZ	M6*16.5-TZ	M3*16.5-TZ	M4*15.5-TZ	M6*16.5-TZ
Net Weight	3.0~4.0g	4.0~6.6g	11.0~20.0g	3.0~4.0g	4.0~6.6g	11.0~20.0g

Dimensional Drawing (unit: mm)

Features

Anti-pressure and Aging Resistance: M3/M4 head is made of stainless steel, strong and durable without rusting, M6 head is made of pure copper with nickel-plated surface for aging resistance.
Transparency: Highly transmissive plastic fiber core, stable signal transmission, low loss and good toughness is not easy to break.

Applications

Tips: How to choose a suitable right-angle fiber optic sensor?

When choosing a fiber optic sensor, you should focus on the following factors:

Detection distance: Make sure the detection range of the fiber optic transmitter meets the application requirements.
Light characteristics: For example, whether a model with high sensitivity or interference immunity is required.
Environmental conditions: Such as temperature, humidity and whether an oil and vibration resistant design is required.

In addition, depending on the specific application, different fiber optic materials (plastic or glass) and signal processing modules can be selected for optimal performance.
