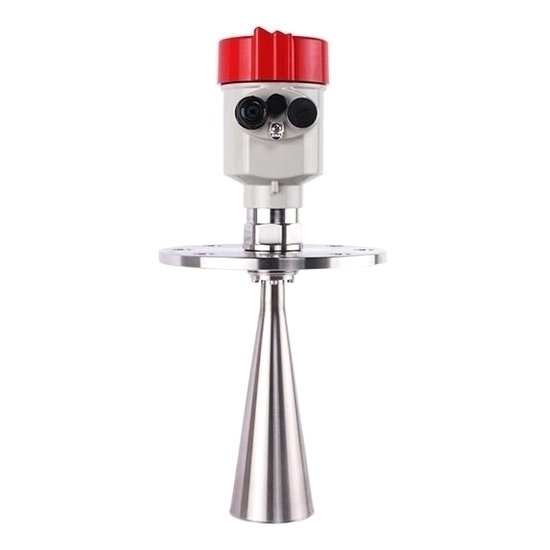

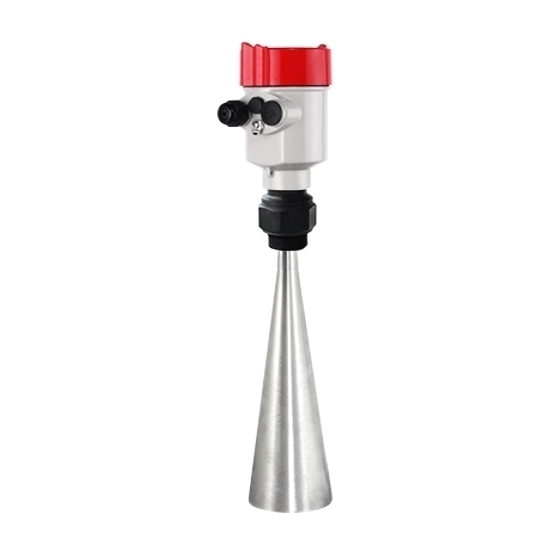

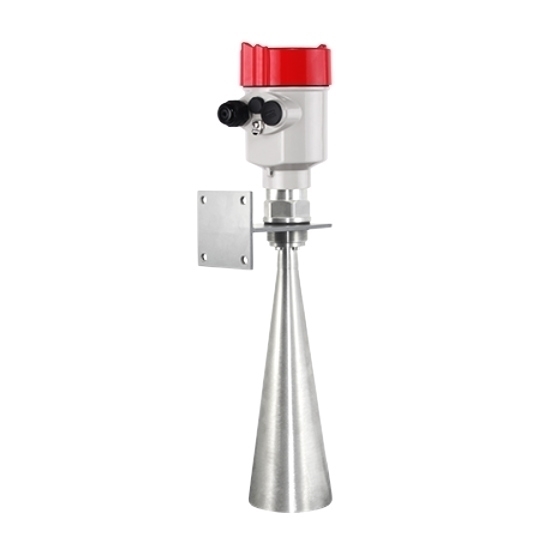

Radar level sensor for non-contact reservoir/ river/ lake/ tank water level measurement has maximum measuring range 0-70m, can transmit and output 4-20mA, HART or RS485/232 signal to remote control system. Radar liquid level sensor has an IP67 protection level and is dust and water resistant.

Specification

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Dimension (unit: mm)

Installation

Wiring

Details

Tips: Application of radar level sensor in reservoir water level monitoring

The reservoir water and rain monitoring system is suitable for the water conservancy management department to remotely monitor the real-time data such as the water level and rainfall of the reservoir. It also supports remote image monitoring, providing accurate and timely on-site information to ensure the appropriate water storage of the reservoir and safe flood season.
The reservoir water and rain monitoring system has achieved real-time monitoring of the water and rain conditions of the reservoir, realized the information management of the reservoir, and played a major role in protecting people's lives and property safety.

System composition:
Radar level sensors, rain gauges, reservoir detection terminals, security cameras, communication devices, etc.

Functions:

1. Remote detection
   1. Reservoir distribution location and on-site equipment operation status.
   2. Real-time data such as water level, rainfall, device battery voltage, etc.
2. Remote monitoring
   1. During GPRS/CDMA communication, it supports timed, over-limit or remote manual photography.
   2. Support video real-time monitoring during optical fiber/ADSL/3G/4G communications.
3. Automatic alarm
   1. When the water level/rainfall exceeds the limit or the field equipment fails, it will automatically alarm, which has the function of an alarm.
   2. Automatically send alarm text messages to the responsible person's mobile phone.
4. Statistical Analysis
   1. Automatically count the time, day, month and year data reports of water level and rainfall.
   2. Automatically generate process analysis curves such as water level, rainfall, and battery voltage.
5. Data storage
   1. Two-way storage of historical data between monitoring center server and field terminal.
   2. Field terminals can store historical data records of no less than one year.
