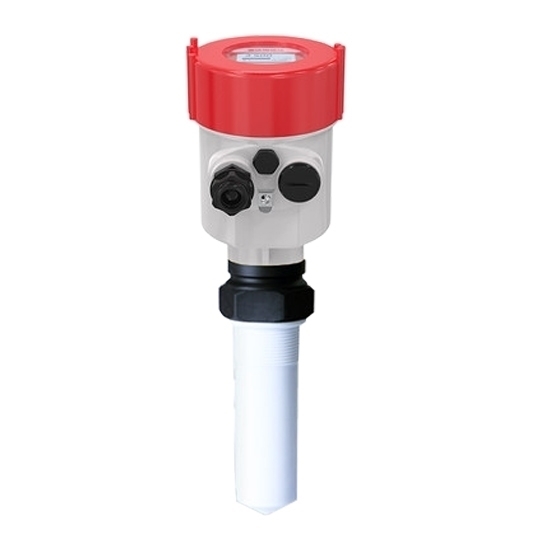

Radar Level Transmitter For Corrosive Liquid, Non-contact, 0-10M

Radar Level Transmitter For Corrosive Liquid, Non-contact, 0-10M
Radar Level Transmitter For Corrosive Liquid, Non-contact, 0-10M
0 reviews • Write a review
from
$1,337.79
Ex Tax: $1,337.79
  • Stock: In Stock
  • Model: RDDLZ-LEVS-RD901
  • Weight: 1.00
  • SKU: RDDLZ-LEVS-RD901

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price radar level transmitter for non-contact various corrosive liquid level measurement has maximum measuring range 0-10m, can transmit and output 4-20mA, HART or RS485 signal to remote control system. It has an IP67 protection class, has good dust and water resistance, and is suitable for outdoor or humid environments.

Specification

ModelRDDLZ-LEVS-RD901
Shipping Weight3.5kg
Measuring Range0-10m
Accuracy±5mm (Range 5m), ±10mm (Range 10m)
Resolution1mm
DisplayLCD Display
Measured Interval1s (according to parameter setting)
Adjustment Time1s (according to parameter setting)
Microwave Frequency26GHz
Output Signal*4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
Power Supply*DC 12-24V, AC 220V/50Hz
MaterialShell: Aluminum, Process Connection: 304 Stainless Steel
Pressure-0.1 ~ 0.3MPa
Shock Resistance10m/s2, (10~150)Hz
Communication ProtocolModbus
MediumVarious Corrosive Liquids
Storage Temperature-40~+100℃
Process connection (antenna) temperature-40~+150℃
Medium Temperature-40~+130℃
Protection ClassIP67
Electrical Connection2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
Installation*G1-1/2"A thread, Flange
Warranty12 Months

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Dimensions (Unit: mm)

Installation

Wiring

Details

Tips: Radar level sensor purchase guide

  • Understand the measuring medium: Choose a sensor suitable for liquids, slurries or solids.
  • Consider environmental conditions: Make sure the sensor can withstand the temperature, humidity and pressure of the working environment.
  • Choose the appropriate frequency: high frequency is suitable for high precision requirements or complex environments, and low frequency is suitable for conventional applications, combined with the adjustment needs of motors and pumps.
  • Installation location: Choose a location that is easy to install and maintain, and avoid interference sources.
  • Protection capability: Ensure that the sensor has sufficient protection level to adapt to harsh environments.
  • Compatibility: Ensure that the sensor is compatible with existing systems and supports common communication protocols.
  • Maintenance and debugging: Choose sensors that are easy to debug and maintain later, and provide debugging tools or software support.
