- Stock: In Stock
- Model: RDDLZ-LEVS-SP60
- Weight: 1.00
- SKU: RDDLZ-LEVS-SP60

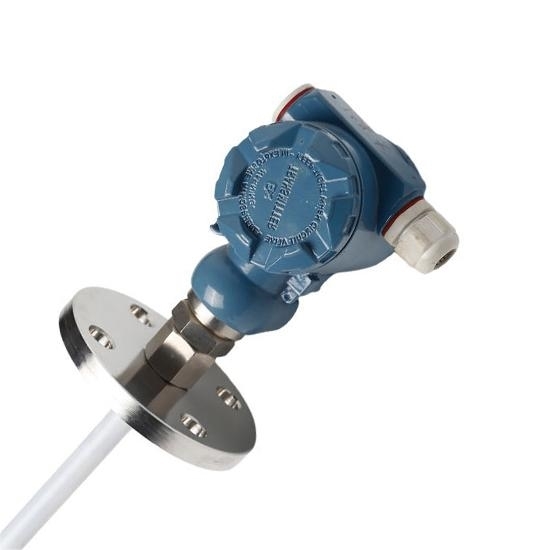

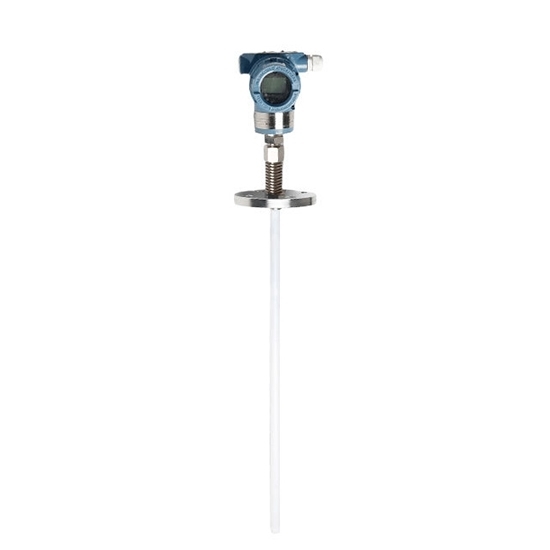

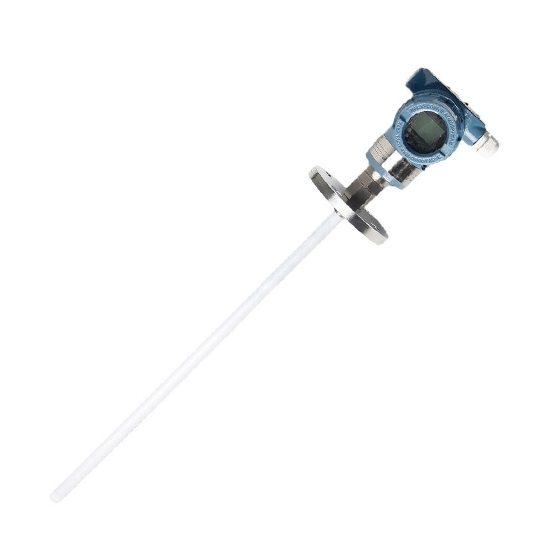

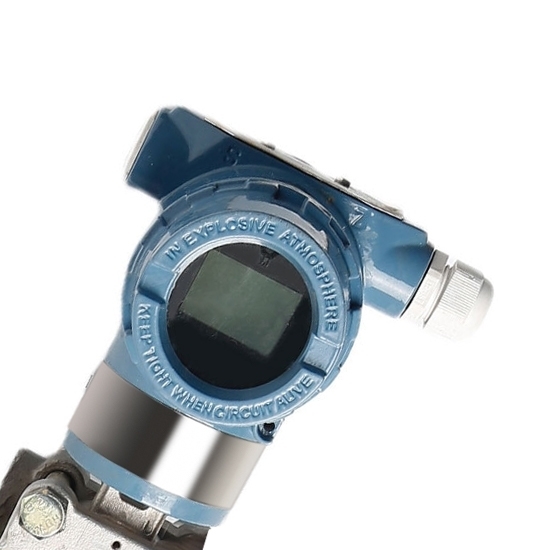

Engineered for harsh settings (high-temp, high-pressure and corrosive liquid applications), RDDLZ RF capacitive level probe maintains stable performance with minimal temperature drift. The construction of this acid level sensor supports continuous monitoring in demanding conditions with 24V DC supply, ensuring adaptability.
Specification
| Model | RDDLZ-SP-60 |
| Measuring Range | 100PF~5000PF |
| Detection Range | 0-30m |
| Measurement Accuracy | 0.5%F.S |
| Pressure Rating | 16 kg (Higher ratings customizable) |
| Probe Temperature | -50°C~250°C |
| Ambient Temperature | -40°C~85°C |
| Storage Temperature | -55°C~125°C |
| Supply Voltage | 24V |
| Material | 316 Stainless Steel, 1Gr18Ni19Ti, or PTFE |
| Explosion-proof Rating | Exibllct6 |
| Temperature Drift | ≤0.01%FS/°C (within 0~70°C range) |
| Protection Rating | IP67 |
| Output Signal | Standard 4-20mA (RS-485 communication optional) |
| Medium Temperature | -30°C~350 °C |
| Medium Pressure | 1.6, 2.5, 4.0 MPa |
| Suitable Applications | Purified water, alcohol, alkali, nitric acid, oil, sulfuric acid |
Features
- Accuracy: RF capacitive level transmitter delivers high precision with 0.5% F.S. accuracy across the entire 0-30m detection range.
- Wide temperature endurance: Probe withstands extreme temperatures from -50°C to 250°C for reliable high-temperature process monitoring.
- Pressure resistance: Handles medium pressures up to 4.0 MPa, ensuring integrity in pressurized vessel applications.
- Robust construction: Manufactured from 316 stainless steel or PTFE materials for excellent corrosion resistance in harsh chemicals.
- Safety certifications: ExibIet6 explosion-proof rating and IP67 protection guarantee safe operation in hazardous and demanding environments.
- Stability: This industrial level sensor maintains minimal temperature drift, ≤0.01%FS/°C, for consistent readings.
- Output flexibility: Features standard 4-20mA output with optional HART or RS-485 communication for versatile system integration.
- Media compatibility: The fluid level sensor is suitable for a wide range of media including purified water, alcohol, oil, acids, and alkalis.
- Electrical robustness: Designed for reliable performance within a wide -40°C to 85°C ambient temperature range.

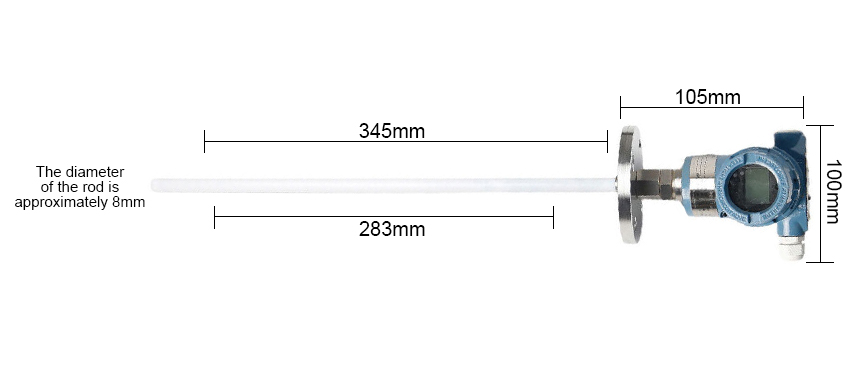

Dimension (Unit: mm)

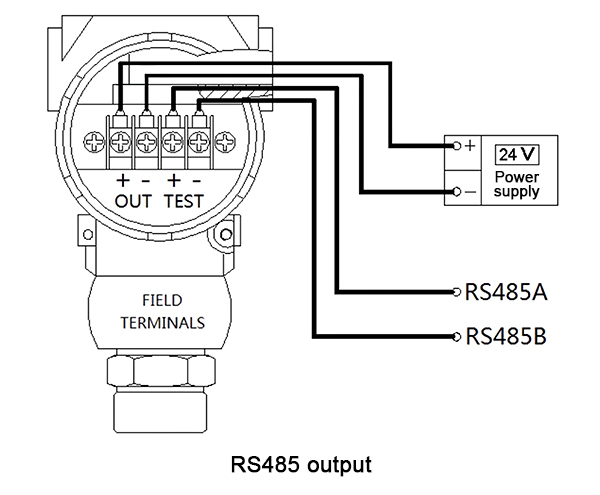

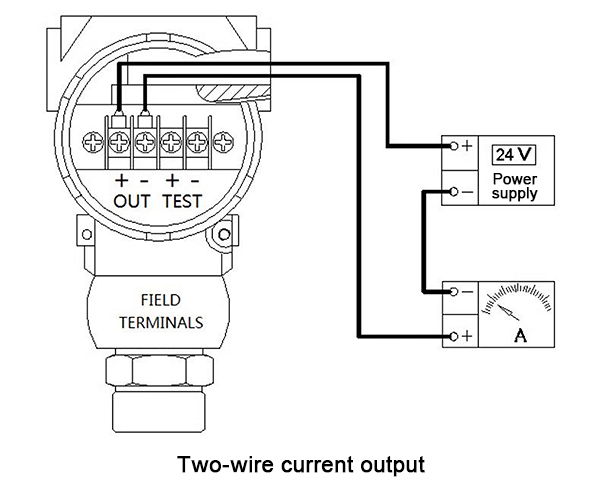

Wiring

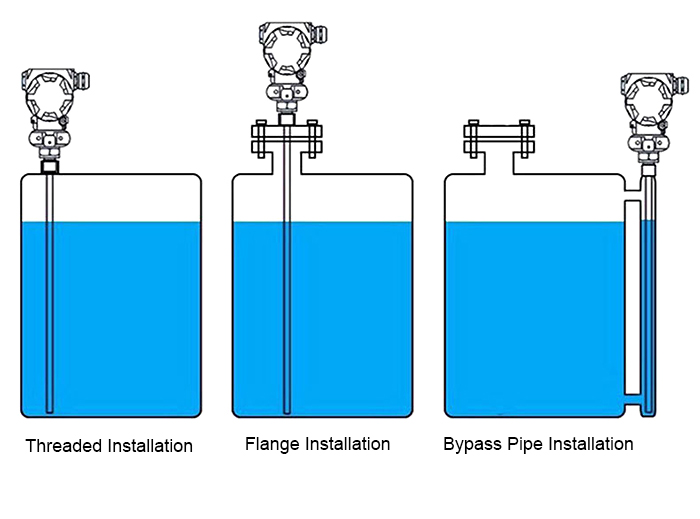

Installation Diagram

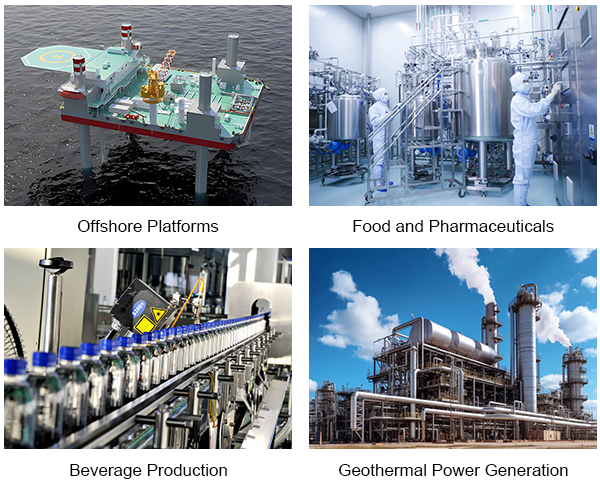

Application
Tips: Can RF capacitive level sensor be used in high-pressure tanks?
Absolutely. The capacitive liquid level sensor is engineered for high-pressure applications, with a robust pressure rating of up to 4.0 MPa. This makes the chemical level sensor ideal for use in pressurized vessels, reactors, and pipelines commonly found in chemical processing, power generation, and oil and gas industries. The durable construction ensures long-term stability and reliable, accurate level measurement even under continuous high-pressure conditions.
