PID Benzene (C6H6) Gas Sensor, 0-10/0-100/0-10000ppm

0 reviews • Write a review

from

$667.59

Ex Tax: $667.59

Stock: In Stock
Model: RDDLZ-GS-C6H6
Weight: 1.00
SKU: RDDLZ-GS-C6H6

Available Options

Short Description

Detection Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

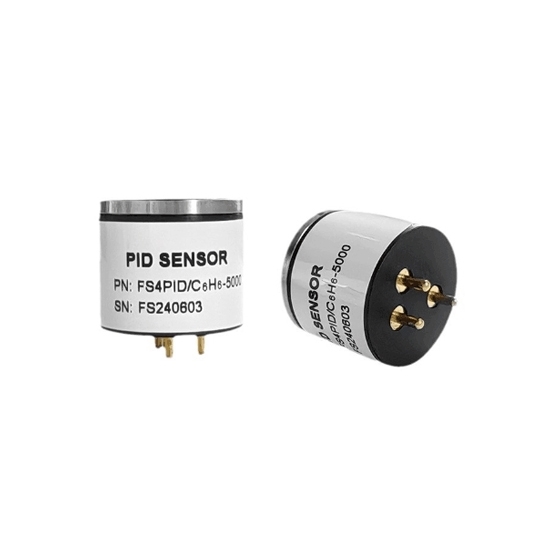

The PID C6H6 Gas Sensor detects benzene (C6H6) from 0-10ppm to 0-10000ppm with high sensitivity. It's ideal for industrial safety, environmental monitoring, labs, automotive testing, and the oil & gas industry.

Specification

Model	RDDLZ-FS4PID/C6H6
Detection Type	Benzene (C6H6)
Detection Principle	Photoionization Detection (PID)
Detection Range	0-10ppm, 0-40ppm, 0-100ppm, 0-6000ppm, 0-10000ppm (optional)
Resolution	1ppb, 10ppb, 25ppb, 500ppb, 2ppm
Sensitivity	＞40mV/ppm, ＞10mV/ppm, ＞5mV/ppm, ＞0.1mV/ppm, ＞0.1mV/ppm
Accuracy	≤±2% (without condensation)
Operating Voltage	3.2V-5.5V
Zero Voltage	U0＞20mV
Output Signal Voltage	0.02V-2V (Maximum 3V)
Response Time	T90≤5 seconds
Default Output Mode	Modbus
Lifetime	3 years (excluding lamp and electrode)
Warranty Period	1 year (excluding lamp and electrode)
Operating Environment	Temperature: -20°C ~ 60°C; Humidity: 0-99%RH (non-condensing)
Storage Environment	Temperature: 0°C ~ 20°C; Humidity: 0-99%RH
Pressure Range	800-1200 mbar

Note: Other parameters contact customer service.

Feature

PID Detection: Utilizes Photoionization Detection (PID) technology for highly accurate gas detection.
Strong Anti-Interference: Features excellent anti-interference capabilities, ensuring stable performance in challenging environments.
Wide Measurement Range: Capable of measuring benzene (C6H6) concentrations from 0 to 10,000 ppm, covering a broad spectrum of potential gas levels.
Technology Upgrade: Incorporates self-developed technology and innovative advancements for enhanced performance and reliability.
Long Lifespan: Designed for durability, with a lifespan of up to 10 years, minimizing the need for frequent replacements.
High Accuracy: Dual-channel design ensures high precision with minimal drift over time, providing reliable and consistent readings.
Temperature Compensation: Equipped with temperature compensation for accurate readings in varying temperature conditions.

Size (Unit: mm)

Working Principle

Application

Tips: How does the PID C6H6 Gas Sensor work?

The PID C6H6 Gas Sensor utilizes Photoionization Detection (PID) technology to detect benzene (C6H6) in the air. When benzene molecules enter the sensor, they are ionized by a high-energy ultraviolet (UV) light source. This process creates charged particles (ions) that are detected by the sensor, and the concentration of these ions is used to calculate the level of benzene in the air. The sensor’s ability to detect low levels of benzene makes it highly effective in environments where precise detection is crucial, such as industrial settings or research laboratories.
