Nema 17 Stepper Motor Linear Actuator, 2 Phase, 6V, 0.8A

0 reviews • Write a review

from

$132.23

Ex Tax: $132.23

Stock: In Stock
Model: RDDLZ-STEPL-608
Weight: 1.00
SKU: RDDLZ-STEPL-608

Available Options

Short Description

Motor Type

Motor Screw Lead

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

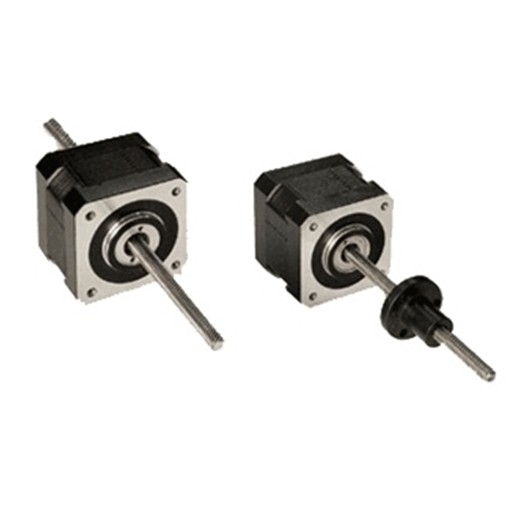

This Nema 17 Stepper Motor Linear Actuator can dramatically reduce cost and save space. Two versions can be delivered:
1. Non-Captive shaft stepper linear actuator with nut inside motor. Linear moving part can rotate so it should be fixed.
2. External shaft stepper linear actuator. Nut are mounted on lead screw.

Stepper Motor Linear Actuator Specification

Model Type	External Shaft	Non-Captive Shaft
	42H47-0806AST	42H47-0806GTS
Weight	4 kg
Length	47 mm
Phase	2 phase
Step Angle	1.8°
Rated Voltage	6 V
Rated Current	0.8 A
Resistance	7.5 Ω
Holding Torque	44 Oz-in
Number of Leads	6
Rotor Inertia	68 g-cm²

Select Leadscrew

Choose your stepper motor linear actuator screw from one of the available options:

(in)	(mm)	(in/rev)	(mm/rev)	(in/step)	(mm/step)
0.315	8	0.079	2	0.00039	0.01
0.315	8	0.157	4	0.00079	0.02
0.315	8	0.315	8	0.00157	0.04
Note: Screw of 8mm diameter is made of copper.

Stepper Motor Linear Actuator Dimension (Unit=mm)

1. Non-captive shaft style

L=47mm

2. External shaft style

L=47mm

Details

4 tips for stepper motor linear actuator applications

The stepper motor linear actuator is generally applied to the low speed situation with a speed of no more than 1000 rpm. It should work during this period through speed reducer. At this time, the work efficiency of the motor is high and the noise is at the low frequency state.
Usually it is suggested that it is better not to use the whole step state of the stepper motor linear actuator because the vibration in the whole step state is large, and it is not suitable for long time operation and is easy to reduce the loss of service life.
The motor with large seated number should be selected in load with large rotary inertia.
When the motor is at a high speed or in a large inertia load, it usually does not start at the working speed but uses a gradual increase in speed and frequency. In a high precision state, a mechanical deceleration should be carried out to improve the speed of the motor, or a driver with high fine fraction should be used to solve the problem.
