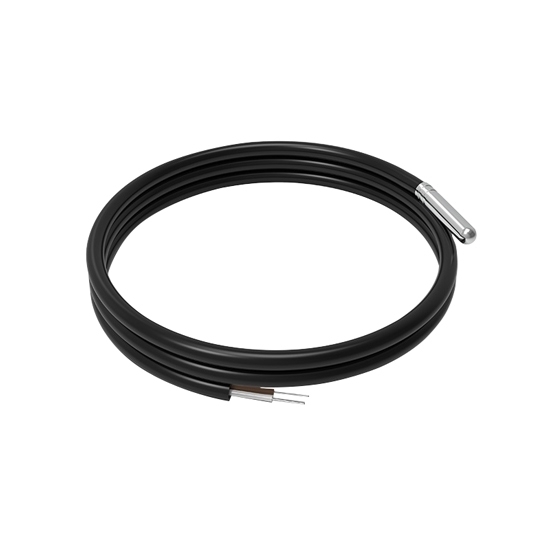

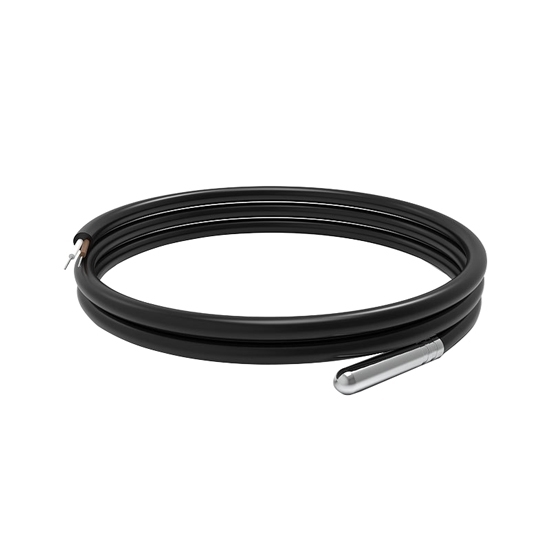

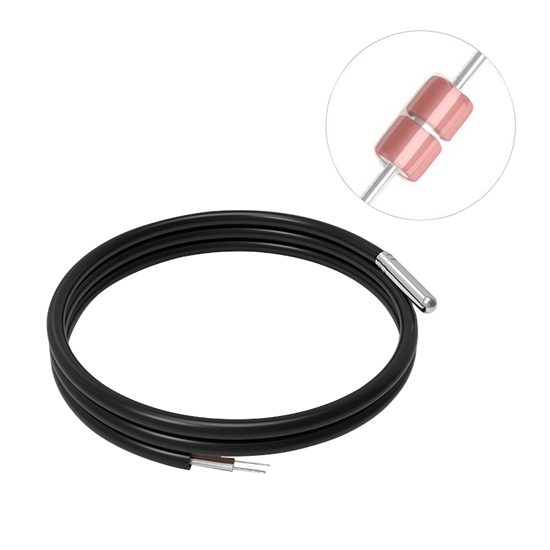

NTC Temperature Sensor Probe, 10kΩ, 100kΩ

0 reviews • Write a review

from

$8.58

Ex Tax: $8.58

Stock: In Stock
Model: RDDLZ-TS-NTCP
Weight: 1.00
SKU: RDDLZ-TS-NTCP

Available Options

Probe Specification

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Highly accurate and reliable ntc temperature sensor probe for temperature -40 ~ 300°C, the use of insulation, thermal conductivity, waterproof material encapsulated into the required shape, stainless steel material to form a double-channel compression ring junction, is not easy to seepage and fall off. The diameter of the housing can be selected from 6*30mm, or 6*50mm.

Specification

Model	RDDLZ-TS-GTS100
Sensor Type	Thermistor
R-value R25	10kΩ,100kΩ (Available Options)
B-value R25/R50	3950K
R25 Accuracy	±1%,±2%
Precision	0.1
Working Temperature	150°C
Temperature Range	-40～300℃
Wire	UL series
Connector	Molex, JST, DuPont, CWB, CJT, U-type Terminal Blocks, etc.
Material Physical Properties	Heat Insulation
Housing	Stainless Steel, Copper Nickel-plated, Copper, Aluminum, ABS, PVC, Epoxy Resin
Accuracy	0.5
Casing	Heat Shrinkable Tubing, PVC Tubing, Glass Fiber Tubing, Teflon Tubing
Housing Diameter and Length	630MM/650MM (Available Options)
Net Weight	100g

Details

Dimensions (unit: mm)

Application

Tips: What is an NTC Temperature Sensor Probe?

An ntc temperature sensor is a temperature measurement device based on the thermistor principle. Its probe is made of a thermosensitive material with a negative temperature coefficient, i.e., the resistance value decreases as the temperature increases.

The operating principle of the ntc temperature sensor is based on the fact that the resistance of the thermistor material changes with temperature. When the temperature rises, the resistance of the thermal material decreases and vice versa. This property makes ntc sensors ideal for a wide range of temperature measurements.

NTC temperature sensor probes are typically characterized by a fast response, high sensitivity, and accuracy. They are widely used in a variety of applications, including electronic equipment, the automotive industry, medical devices, and more. Due to the compact and flexible design of ntc temperature sensor probes, they can be easily embedded in a variety of devices and systems to achieve real-time monitoring and control of ambient temperature, providing reliable temperature data for a variety of applications.
