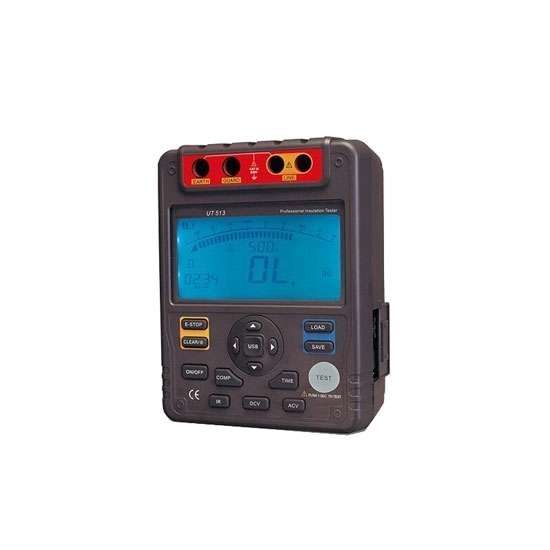

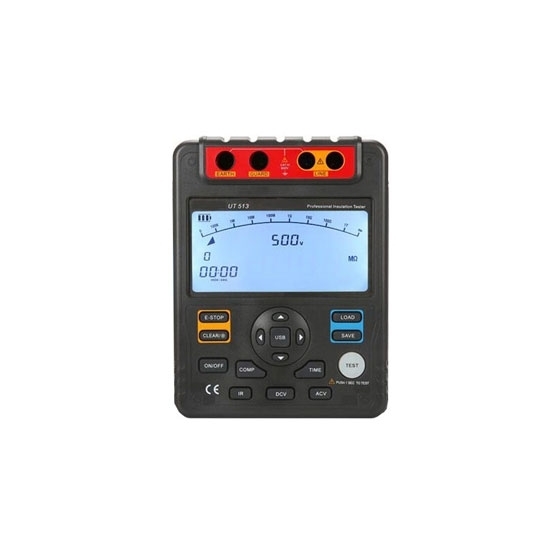

Megger Insulation Tester, 500V/1000V/2500V/5000V

0 reviews • Write a review

from

$1,132.30

Ex Tax: $1,132.30

Stock: In Stock
Model: RDDLZ-IRT-UT513A
Weight: 1.00
SKU: RDDLZ-IRT-UT513A

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Digital Megohmmeter or Megger insulation tester has selectable test voltages of 500V, 1kV, 2.5kV and 5kV with the capabilities of testing insulation resistance up to 1000 MΩ, ideal for testing high voltage equipment such as transformers, genera-tors, high voltage motors, power capacitors, power cables, arresters and so on. The megger is an ideal tool for electric maintenance, testing and inspection.

Specification

Model	RDDLZ-IRT-UT513A
Insulation Resistance (Ω)	Test voltage/accuracy	500V/1000V/2500V/5000V		0% ~ 20%
	Measurement range/accuracy	500V	1 MΩ ~ 20 GΩ	±(3%+5)
		1000V	2 MΩ ~ 40 GΩ	±(5%+5)
		2500V	5 MΩ ~ 100 GΩ	±(3%+5)
		5000V	10 MΩ ~ 1000 GΩ	±(3%+5)
	Short-circuit current			＞3.0mA
DC Voltage (V)	Test range/accuracy	600V		±(2%+5)
AC Voltage (V)	Test range/accuracy	600V		±(2%+5)
Features	Display	9999 counts
	Auto ranging	Yes
	Auto power off	Yes
	Low battery indication	Yes
	Data storage	18
	Comparison measurement	Yes
	PI	Yes
	DAR	Yes
	USB port	Yes
	LCD backlight	Yes
	Analog bar graph	30
	Over-range warning	Yes
	High voltage indication	Yes
	Timing measurement (Around 15 min)	Yes
General	Power supply	1.5V battery (LR14) x 8
	Display size	123mm x 58mm
	Operating temperature	0℃ ~ 40℃ (32℉ ~ 104℉)
	Storage Temperature	-20℃ ~ 60℃ (-4℉ ~ 140℉)
	Relative Humidity	≤85%RH @ 0℃ ~ 40℃ below; ≤90%RH @ -20℃ ~ 60℃
	Product weight	2kg
	Product size	202mm x 155mm x 94mm
	Standard accessories *	2single plug test lead with alligator clip (black and green), 1double plug test lead with alligator clip (red), batteries, USB cabel, PC software CD

Note: * Batteries are Not Included for air shippment.

Insulation Resistance Test Wiring Diagram

Details

Tips: What should you prepare before using an insulation resistance tester?

When Megger is working, it generates high voltage, and the measuring object is electrical equipment, so it must be used correctly, otherwise it will cause personal or equipment accidents. Before use, the following preparations should be made.

Before the insulation resistance measurement, the power supply of the equipment under test must be cut off, and the equipment is discharged by short-circuiting to the ground. It is never allowed that the equipment to be charged is taken for measurement. Nevertheless, the safety is in the first place.
For devices that may be induced by high voltage, the possibility must be eliminated before measurement can be made.
The surface of the measured equipment should be clean to reduce the contact resistance and ensure the accuracy of the measurement results.
Before the insulation resistance test, check whether the Megohmmeter is in normal working state, that is, mainly checking its "0" and "infinity" points. That is, shake the handle to make the motor reach the rated speed, the meter should be in the "0" position in the short circuit, and in the "infinity" position in the open circuit.
The insulation resistance tester should be placed in a stable, firm place, and away from the large external current conductor and external magnetic field.

After the above preparations are made, the resistance measurement can be carried out. During the testing, the correct wiring of the Megger insulation tester should be paid attention to, otherwise unnecessary errors or even errors will be caused.
