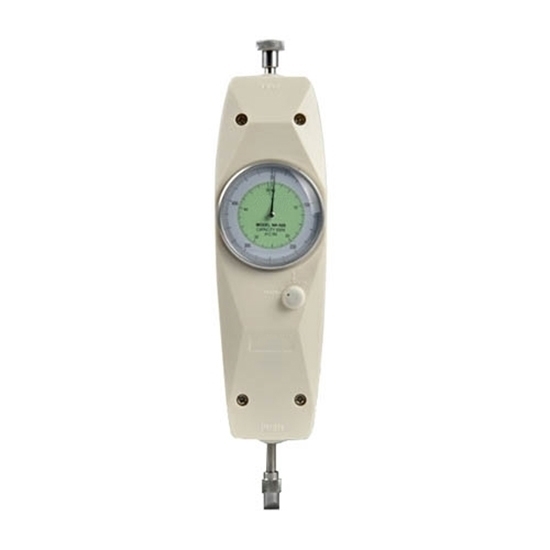

Push pull gauge capacity 20N/ 30N/ 50N to 500N, high precision up to 1% and work at temperature 10℃~30℃. N (Newton) and kg (kilogram) can be displayed at the same time. Peak holding and load real-time value indication can be switched freely, easy to use.

Specification

Feature

1. Mechanical force gauge is a hand-held product with small size and simple operation, and can be installed on various test benches, combined with various fixtures to facilitate various product testing.
2. Push pull gauge with pointer indication, convenient reading, testing; high precision; continuous load indication and peak holding power.
3. The function can be switched freely and two units are displayed at the same time: NK series is displayed in (N) Newton and (kg) kilogram. Reliable and exquisite packaging makes the dynamometer easy to transport, store and maintain.
4. Dual display of two units, no need for unit conversion, adapting to the usage habits of various enterprises. NK series: dual units of Newton and kilogram. NLB series: double unit of Newton and pound. ALB series: double unit of pound and kilogram.
5. Analog force gauge can be installed on various workbenches and can also be adapted to various fixtures to facilitate the testing of various products.
6. Push pull gauge with pointer-type indication, convenient, accurate and high-precision reading. The peak hold and load real-time value indication can be switched freely, which is easy to use.
7. Handheld force gauge has 1 year warranty, lifetime maintenance.

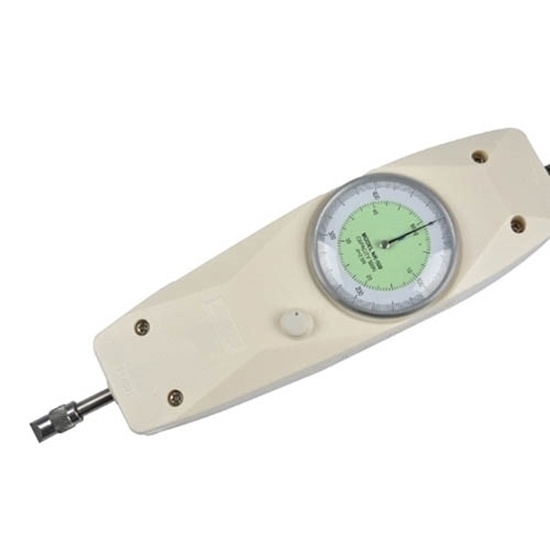

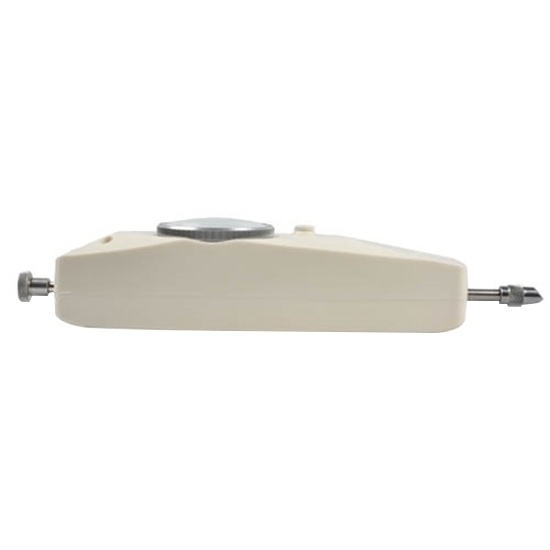

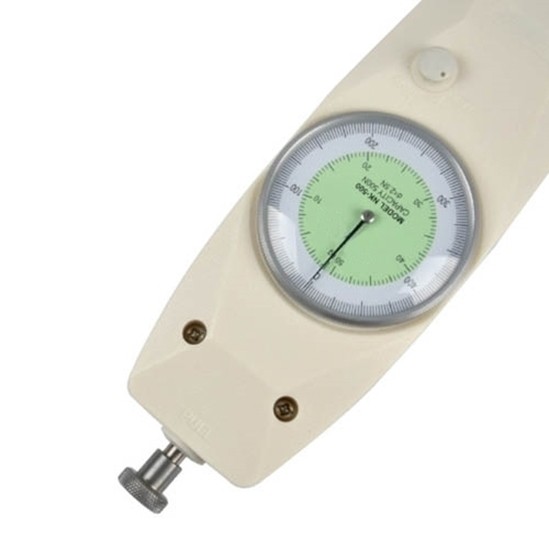

Details

Dimension (mm)

 Tips: What should be pay attention to in mechanical force gauge operation?

1. Before using mechanical force gauge, the zero position must be adjusted first. When using right-handed, turn the knob on the watch cover clockwise so that the memory pointer and active pointer point to the zero mark on the dial.
2. When using left rotation, turn the knob of the watch cover counterclockwise so that the memory pointer is close to the active pointer, and the active pointer points to the zero mark on the dial. According to the size of the measured force, select a spring dynamometer with a suitable range, and the measurement range cannot be exceeded, and the range should not be too large.
3. Check whether the pointer of the push pull gauge points to the zero position. If it does not point to the zero position, it needs to be zeroed. The general method of zeroing is to move the pointer to zero. The direction of the measured force should be consistent with the axis of the analog force gauge. When reading, in addition to reading the value indicated by the graduation value on the dynamometer, one more digit should be estimated.
