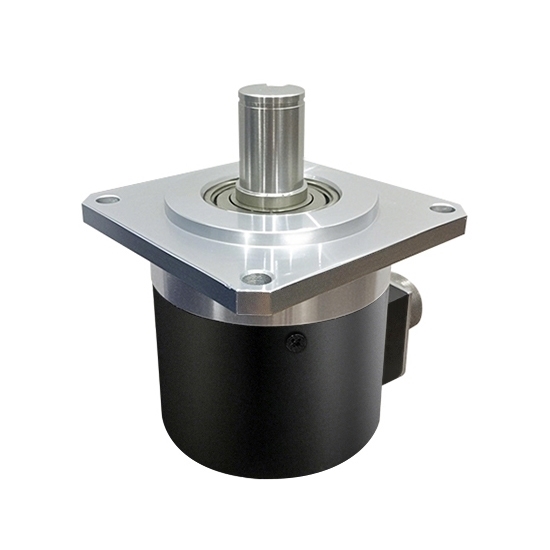

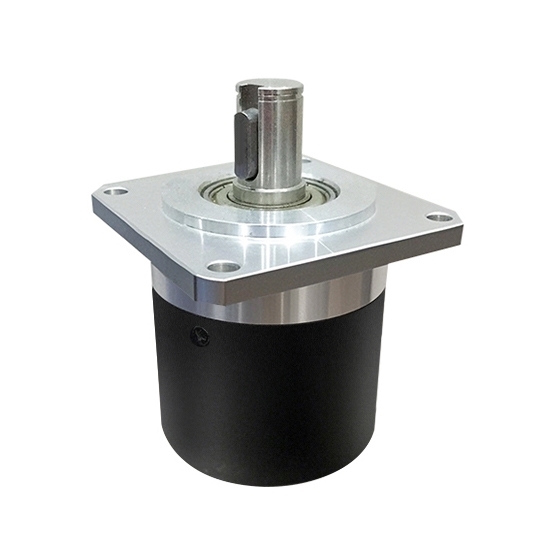

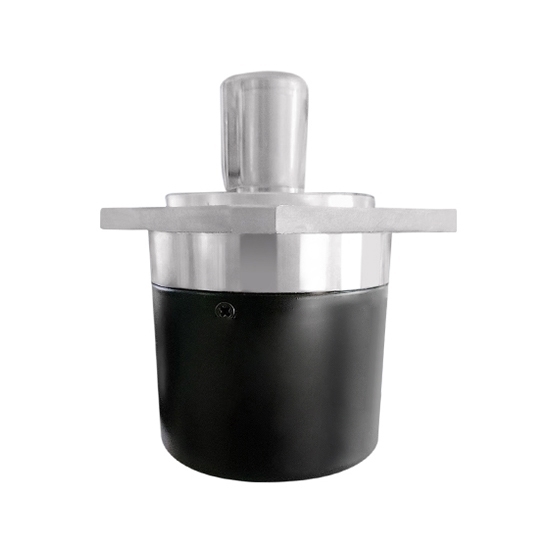

Incremental Rotary Encoder, Shaft, 1024 Ppr

Incremental Rotary Encoder, Shaft, 1024 Ppr
Incremental Rotary Encoder, Shaft, 1024 Ppr
Incremental Rotary Encoder, Shaft, 1024 Ppr
Incremental Rotary Encoder, Shaft, 1024 Ppr
Incremental Rotary Encoder, Shaft, 1024 Ppr
Incremental Rotary Encoder, Shaft, 1024 Ppr
Incremental Rotary Encoder, Shaft, 1024 Ppr
0 reviews • Write a review
from
$189.63
Ex Tax: $189.63
  • Stock: In Stock
  • Model: RDDLZ-IRE-1024PS
  • Weight: 1.00
  • SKU: RDDLZ-IRE-1024PS

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Incremental optical rotary encoders with 1024 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

BasicsModelRDDLZ-F5815C-1024BM
Weight100g
WiringSignalVccGNDABZA-B-Z-Shielded wire
ColorRedBlackGreenWhiteYellowBrownGrayOrangeCopper
5 pin plug35124----
7 pin plug14352---6
9/10 pin plug145327689
19 pin plug810, 1213213151417
Mechanical propertiesMaximum shaft speed (r/min)5000
Starting torque<0.03Nm (25℃)
Maximum shaft loadRadial load: 50N, axial load: 20N
Shock resistance50G/11ms
Anti-vibration10G (10~2000Hz)
Rotational inertia4X10-8kgm2
Operating temperature-30~+85℃ (-22~+185℉)
Storage temperature-35~+95℃ (-31~+203℉)
Protection LevelIP51
Electrical characteristicsOutput circuitOpen-collector outputVoltage outputPush-pull outputLine driver output
Supply voltage VccDC 5V±0.2DC 5～24VDC 5V±0.2DC 5～24VDC 5V±0.2DC 5～24VDC5V±0.2DC 5～24V
Current consumption≤60mA≤60mA≤60mA≤100mA
Output high level≥3.5V≥Vcc-2.5V--≥2.5V≥Vcc-2.5V
Output low level≤0.5V≤0.5V--≤0.5V≤1.0V
Rise time Tr≤500ns≤1500ns--≤200ns≤500ns
Fall time Tf≤100ns≤300ns--≤200ns≤200ns
Maximum frequency response0～100kHz0～100kHz0～100kHz0～100kHz0～100kHz0～100kHz


Model Selection

Shaft typeDiameter of shellDiameter of shaftConnection typeCable length *ResolutionProduction identifierZ signalZ signal wavelengthOutput mode *Voltage *
F: Shaft+Flange58: 58mm15: 15mmC: Plug edge output1: 1m
2: 2m
3: 3m
4: 4m		1024: 1024 pprBM: Output 1 if receiving Z signalDefault: 1TC: Open-collector NPN
CP: Open-collector PNP
T: Voltage ouput NPN+R
P: Push-pull output NPN+PNP
L: Line driver 26LS31
K: Line driver 7272		5: +5VDC
830: +8~30VDC

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

  1. The encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
  2. The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
  3. Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
  4. Compact and lightweight, suitable for automation equipment with limited installation space.
  5. Modular design, easy installation, fast and efficient commissioning.

Dimension (unit: mm)

Application

Tips: What is open collector output?

An open collector output is an NPN transistor. NPN transistors allow leakage current in the common terminal. It can be thought of as a switch that allows the circuit to be connected to a common terminal after a load. This means that a power supply is needed if have output. The power supply must be connected to the output after going through load, or NPN transistor is only to establish a path to the common end, which is a dry contact. Therefore, if measure an open collector output voltage that is not connected to any power supply, there is no voltage change. If the open collector is working properly, the voltage should be detected after going through the output load.
