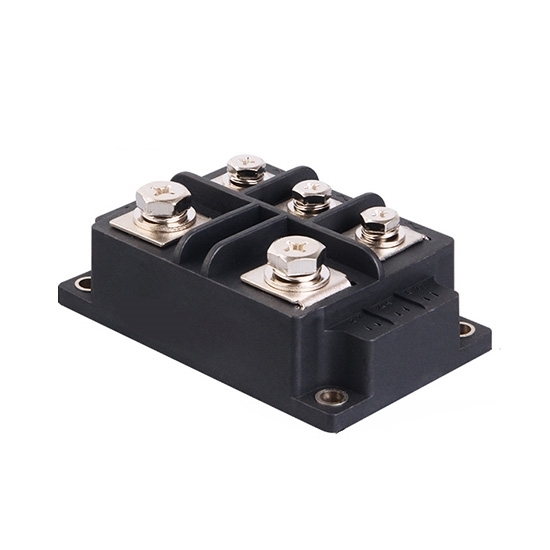

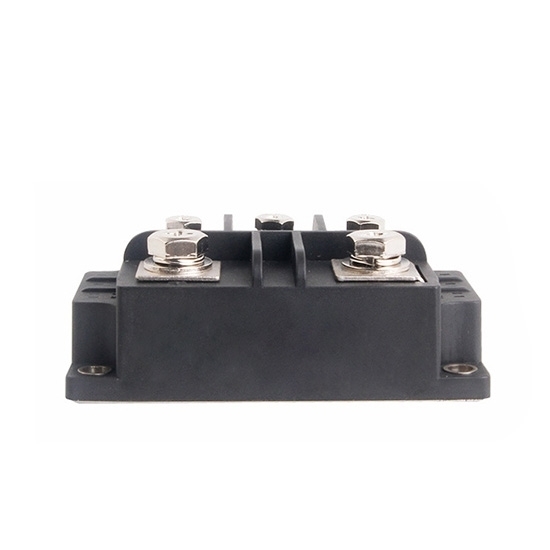

High-power bridge rectifier module plays a key role in multiple applications: providing stable DC power to instruments and equipment, converting input power to PWM frequency converters, providing high current DC power to inverter welding machines, and so on.

Features

• Provide electrical insulation of 2500V voltage between the chip and the substrate to ensure reliable isolation.
• 3-phase bridge rectifier module has excellent temperature characteristics and power cycling capability, and can operate stably under extreme working conditions.
• Its design achieves low forward voltage drop, thereby improving energy efficiency and reducing power loss.
• The bridge rectifier module supports high surge currents to meet the demand for instantaneous high loads.
• The maximum working junction temperature of the equipment can reach 150 ℃, meeting the requirements of high-temperature environments.
• Its compact design makes it small in size and lightweight, making it easy to install and move.

Specification

Note: This product must be installed on a heat sink. Please contact us to choose a suitable heat sink according to the actual situation.

Dimension (mm)

Circuit Diagram

Tips: How to choose a bridge rectifier module?

1. Choose a module with a maximum current rating that meets or exceeds the peak current requirements of your application.
2. Ensure the module’s maximum voltage rating is higher than the operating voltage of your system to prevent potential damage.
3. Select a module with sufficient heat dissipation features or a compatible heat sink to avoid overheating during operation.
4. Pick a package type, such as surface-mount (SMD) or through-hole, that fits your installation and spatial constraints.
5. Consider the module's ability to operate in your specific environmental conditions, including temperature and humidity.
