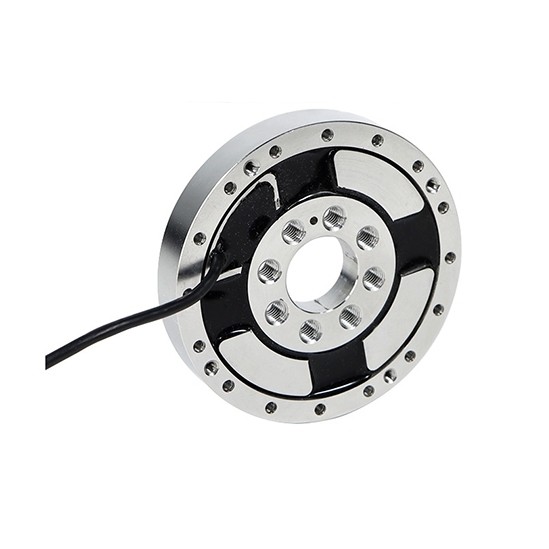

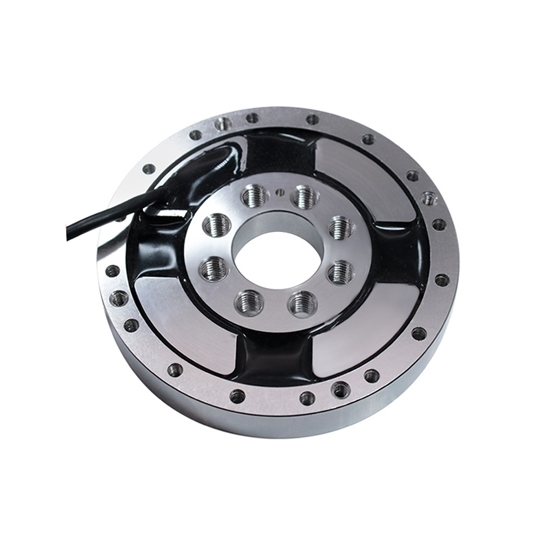

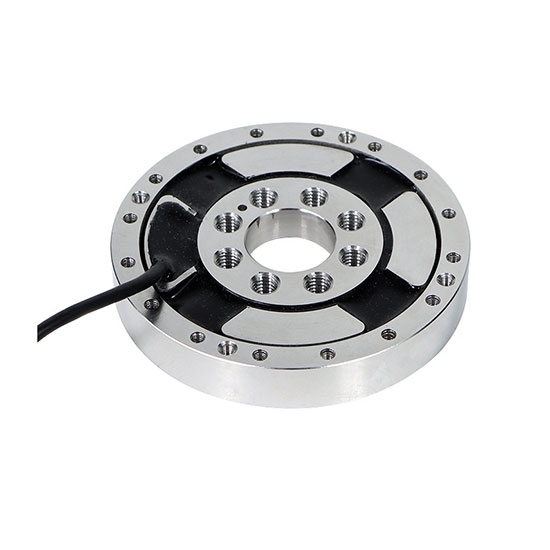

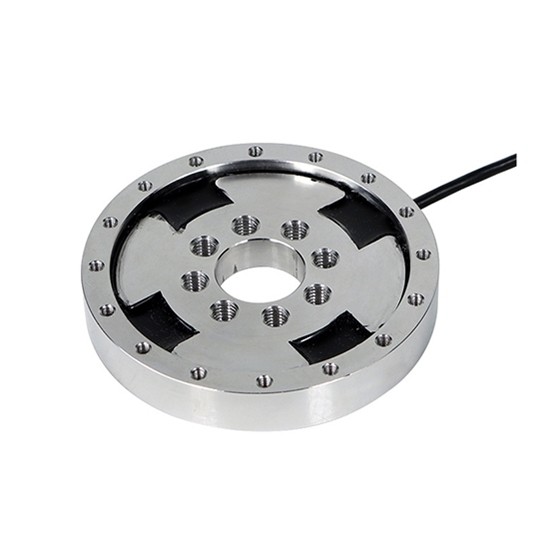

Force Torque Sensor, Flange, 0-20/30/50/100/200 Nm

0 reviews • Write a review

from

$246.19

Ex Tax: $246.19

Stock: In Stock
Model: RDDLZ-TQS-105
Weight: 1.00
SKU: RDDLZ-TQS-105

Available Options

Capacity

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Flanged force torque sensor for sale online. This torque transducer is available with high accuracy, strong anti-interference ability, IP65 protection level and 0-20/30/50/100/200 Nm capacity, which can be used to measure static, non-continuous rotating torque value.

Specifications

Model	RDDLZ-DYJN-105
Capacity	0-200 N.m
Rated Output	1.5±0.5%
Zero Balance	±0.5%F.S.
Non-Linearity	±0.5%F.S.
Hysteresis	±0.5%F.S.
Repeatability	±0.5%F.S.
Creep	0.3%F.S.(30min)
Temp Effect on Output	0.3%F.S./10°C
Temp Effect on Zero	0.1%F.S./10°C
Response Frequency	10kHz
Material	Aluminum alloy/alloy steel
Impedance	700±5Ω
Insulation	≥5000MΩ/100V DC
Working Voltage	5-15V
Operating Temp Range	-20°C-80°C
Safe Overload	150%
Maximum Overload	200%
Cable Specifications	3x2m
Cable Ultimate Pull	10kg
TEDS	Contact us

Dimension (Unit: mm)

Sensor Wiring Diagram

Sensor Force Diagram

Applications

Tips: Is a torque sensor the same as a torque transducer?

Yes, a torque sensor and a torque transducer refer to the same type of device. Both terms are used to describe a device that measures and converts torque, which is the rotational equivalent of linear force, into an electrical signal that can be read and analyzed. The term "sensor" emphasizes the device's role in detecting or measuring torque, while "transducer" highlights its function in converting the physical quantity (torque) into an electrical signal. In practical usage, the terms are often used interchangeably.
