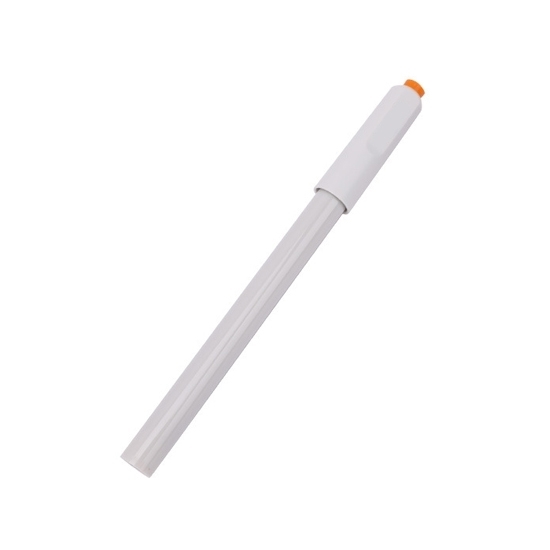

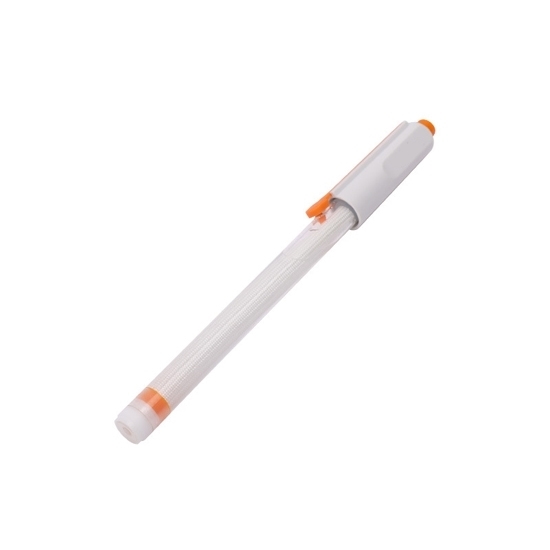

Fluoride Ion Selective Electrode

Fluoride Ion Selective Electrode
Fluoride Ion Selective Electrode
Fluoride Ion Selective Electrode
Fluoride Ion Selective Electrode
Fluoride Ion Selective Electrode
0 reviews • Write a review
from
$141.29
Ex Tax: $141.29
  • Stock: In Stock
  • Model: RDDLZ-ISE-FLUORIDE
  • Weight: 1.00
  • SKU: RDDLZ-ISE-FLUORIDE

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ fluoride ion selective electrodes (ISEs) are specialized sensors designed to measure the concentration of fluoride ions in a solution. Their selective sensitivity to fluoride ions makes them valuable tools for accurate and rapid ion concentration measurements.

Specification

ModelRDDLZ-PF-2-01RDDLZ-PF-202-C
Electrode TypeSingle ElectrodeComposite Electrode
IonFluoride Ion (F-)Fluoride Ion (F-)
Standard SolutionNaF SolutionNaF Solution
Measuring Range1 x 10-6~10-1mol/L1 x 10-5~10-1mol/L
19ug/L~1.9g/L190ug/L~1.9g/L
Ionic Strength Adjuster (Powder)Small Amount of NaClSmall Amount of NaCl
Sensitive Film MaterialCrystal FilmCrystal Film
Shell MaterialPolycarbonatePolycarbonate
Working Temperature5℃~45℃5℃~45℃
InterfaceBNC (Q9)BNC (Q9)
Reference Solution/3 mol/L KCl
Reference Structure/Ag/ AgCl
Working pH4~84~8
Dimensionφ12*120mmφ12*120mm
Recommend Reference ElectrodeRDDLZ-232-01/


Dimension

Application

Tips: Fluoride ion selective electrode working principle

The fluoride ion-selective electrode (ISE) operates based on the Nernst equation, which describes the relationship between the concentration of an ion in solution and the voltage across the electrode. The ISE consists of a solid-state membrane selective to fluoride ions, typically made of lanthanum fluoride crystals. When immersed in a sample solution, the fluoride ions in the sample interact with the membrane, generating a potential difference. This potential is measured against a reference electrode, and the Nernst equation is applied to determine the fluoride ion concentration. The electrode's selectivity is crucial, ensuring minimal interference from other ions. The fluoride ISE finds applications in water quality monitoring, particularly in assessing fluoride levels for public health and environmental purposes.
