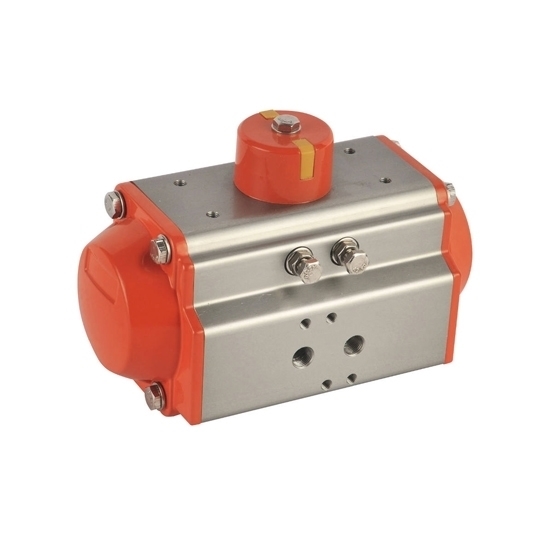

Pneumatic valve actuator is an executive device that uses air pressure to open and close ball valve, butterfly or regulating valve. The pneumatic actuator powered by compresses air is easy to repair and maintain, and has good adaptability to the environment.

Specifiation

• Model: RDDLZ-AT050D
• Bore Size: 50mm (1.97 inch)
• Air Supply Port: 1/8 inch
• Power Source: Compressed Air
• Actuator Type: Double Acting
• Air Pressure: 2.5bar ~ 8bar
• Max Working Pressure: 10bar
• Operating Temperature (Optional): -20℃ ~ 80℃, -35℃ ~ 80℃, -20℃ ~ 150℃
• Rotation Angle: 90°±5%
• Body Material: Aluminum Alloy
• Life Time: One Million Time

Dimensions

RDDLZ-AT050D

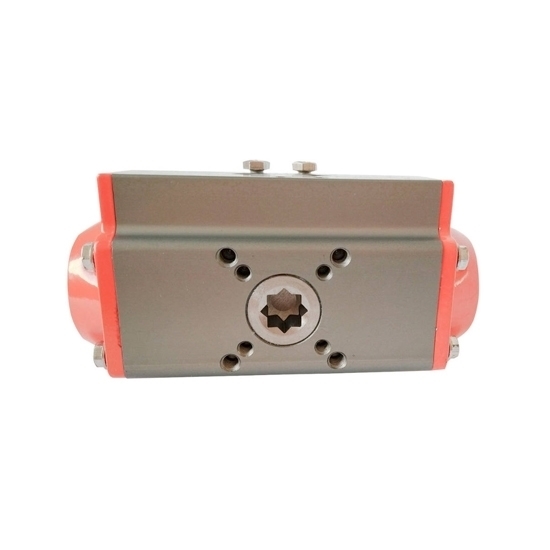

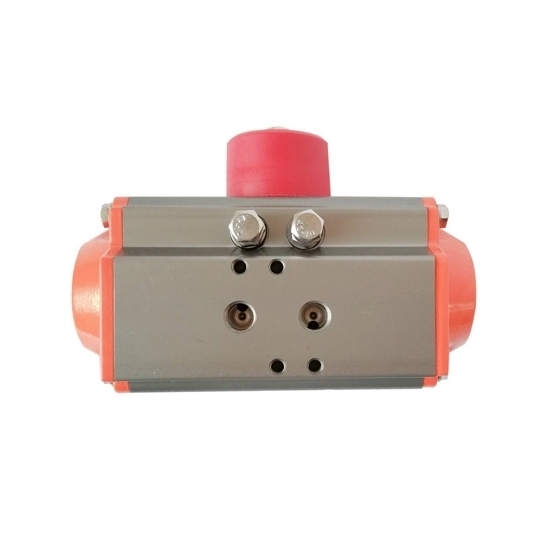

Details

Tips: What should be considered when selecting a pneumatic valve actuator?

• Air source pressure of the actuator.
• The operating torque of the valve plus the safety factor recommended by the manufacturer, and at the same time, according to the application of the valve, operating temperature, operating frequency, pipeline and pressure difference, flowing medium (lubrication, drying, mud), many factors affect the operating torque.
• Type of pneumatic actuator: double-acting or single-acting (spring return) and output torque under a certain air source or output torque under rated voltage, too small to rotate, too large valve life is not long, generally leave enough 30 % safety factor.
