Pneumatic valve actuator is an executive device that uses air pressure to open and close ball valve, butterfly or regulating valve. The pneumatic actuator powered by compresses air is easy to repair and maintain, and has good adaptability to the environment.

Specifiation

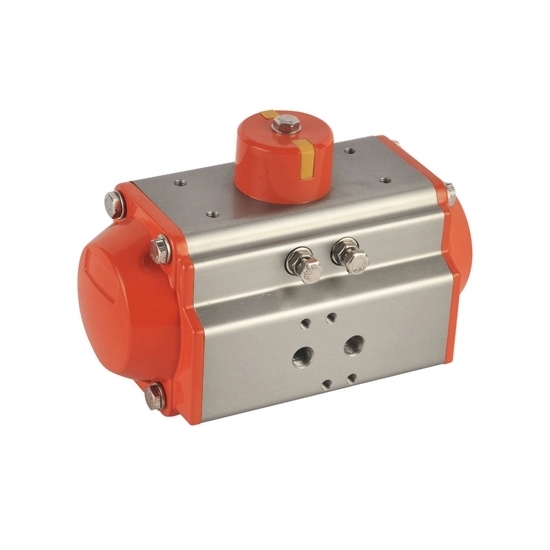

• Model: RDDLZ-AT032D
• Bore Size: 32mm (1.26 inch)
• Air Supply Port: 1/8 inch
• Power Source: Compressed Air
• Actuator Type: Double Acting
• Air Pressure: 2.5bar ~ 8bar
• Max Working Pressure: 10bar
• Operating Temperature (Optional): -20℃ ~ 80℃, -35℃ ~ 80℃, -20℃ ~ 150℃
• Rotation Angle: 90°±5%
• Body Material: Aluminum Alloy
• Life Time: One Million Time

Dimensions

RDDLZ-AT032D

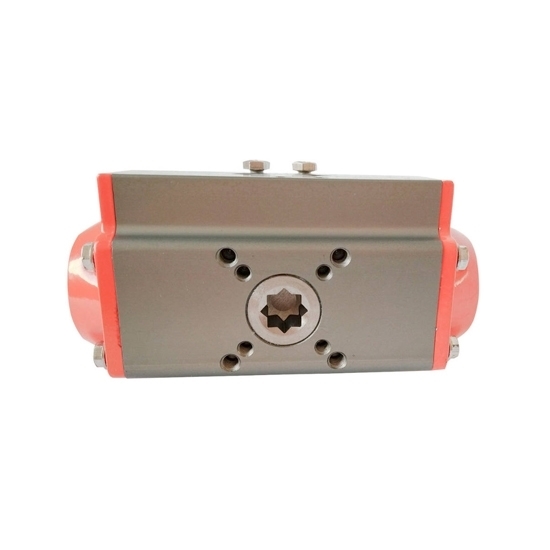

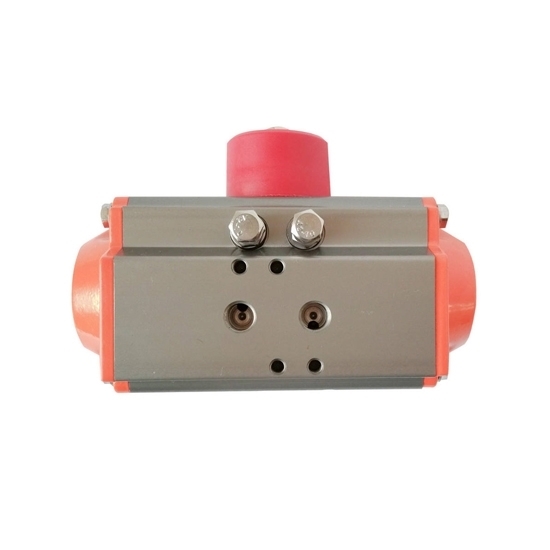

Details

Tips: Pneumatic valve actuator troubleshooting

Actuator is one of the indispensable configurations in industrial automation process. Actuators are used very frequently and are usually installed in harsh environments such as high temperature and high pressure, so they are prone to failure.

If the pneumatic valve actuator is stuck, please disassemble the actuator, check the place where it is stuck, solve and reassemble. The leakage of the pneumatic actuator includes internal leakage and external leakage. For external leakage, check the piston rod and sealing sleeve for damage and replace them in time. If only they are worn out, you can simply reassemble them. Internal leaks can be caused by damaged seals, ingress of impurities, or a stuck piston. Add some lube. If the coil is damaged, it can be checked with a multimeter after connecting the power supply. If damaged, the coil can be replaced directly.
