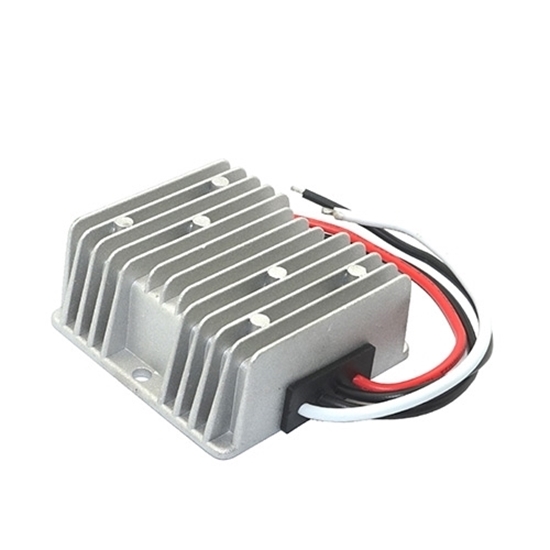

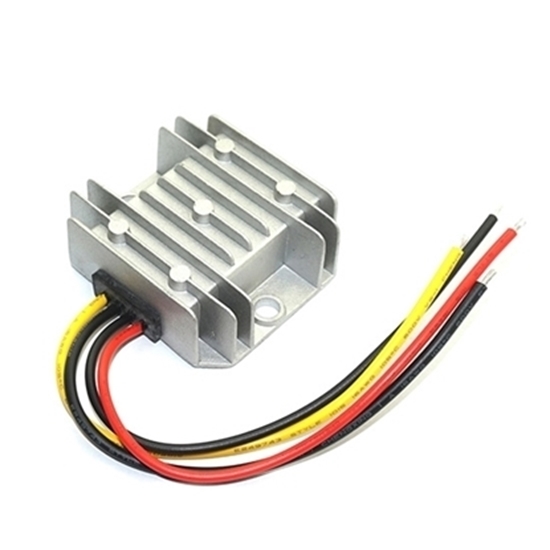

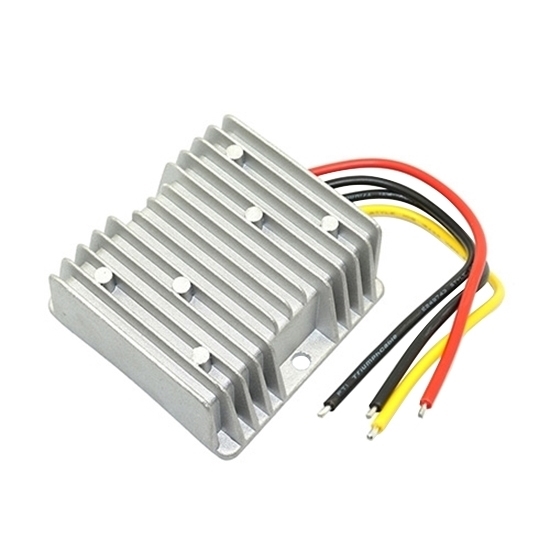

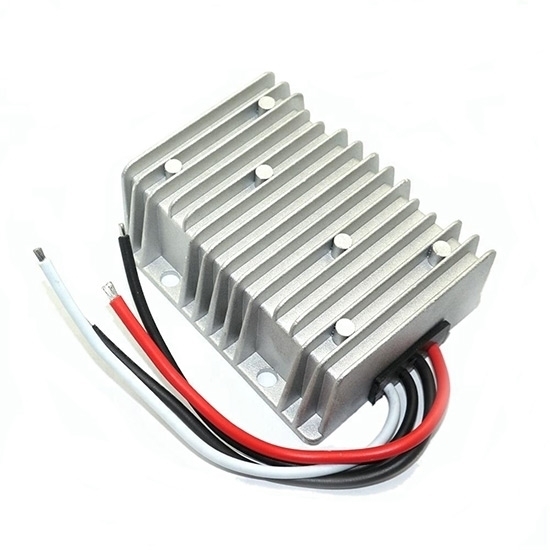

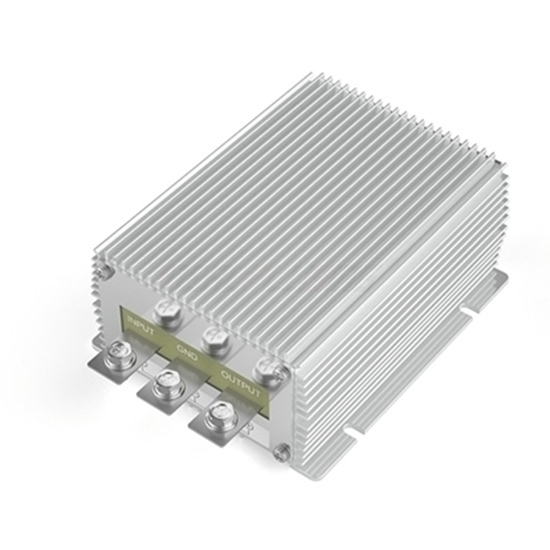

DC-DC Boost Converter, 12V To 24V

0 reviews • Write a review

from

$53.26

Ex Tax: $53.26

Stock: In Stock
Model: RDDLZ-DCDC-1224
Weight: 1.00
SKU: RDDLZ-DCDC-1224

Available Options

Model Selection

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This series of DC-DC boost converters with wide input voltage range high efficiency up to 96%. They are designed to step up the input rated voltage 12V DC to 24V DC output voltage, and different models can be chosen to meet your applications.

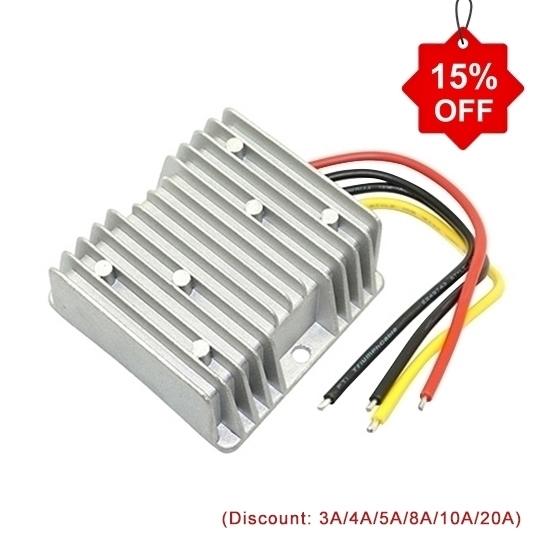

Note*: Get a special 15% off when you purchase a 3A, 4A, 5A, 8A, 10A, or 20A DC-DC boost converter. The prices shown on this page already reflect the discount.

Features

Wide input voltage range: 10V to 23V.
Brand-new, die-cast aluminum shell and high quality design, maximum transfer efficiency of 96%.
This step up module comes with waterproof lever of IP68, moisture-proof & anti-shock protection.
Auto-recovery when device is back to normal operating.
Built-in full protection against over/under voltage input, over-current, overload, over-temperature and short circuit.
Industry grade 12V DC to 24V DC boost converter, widely used in automotive, electricity, surveillance systems, railway signals, instruments, solar generate electricity, display screen of bus and taxi, car audio device, security systems, hospital equipment, telecommunications etc.

15A DC-DC Boost Converter Specification

Model	RDDLZWG-12S2415
Input	Rated voltage	12V
	Voltage range	10-23V
	Efficiency	94% @ 12V input
	Positive cable (red)	12 AWG @ 15cm length
	Negative cable (black)	12 AWG @ 15cm length
Output	Voltage	24V
	Max. rated current	15A
	Max. rated power	360W
	Voltage regulation	±1%
	Load regulation	2%
	No load loss	70mA
	Ripple & noise	200mV
	Positive cable (yellow)	14 AWG @ 15cm length
	Negative cable (black)	14 AWG @ 15cm length
Environment	Working temperature	-35 ~ +80℃
	Working humidity	10% ~ 90%RH
	Storage temperature	-40 ~ +85℃
Function	Short circuit protection	YES
	Over current protection	YES
	Waterproof	IP68
	Over temperature protection	YES
	Over voltage protection	YES
Mechanical	Weight	500g
	Size	1008039mm

12V to 24V DC-DC Boost Converter Model Selection

Code	Model	Price	Input Voltage	Output Voltage	Output Current	Output Power	Efficiency	Size	Download
1	RDDLZWG-12S2401	$53.26	12V DC	24V DC	1 Amps	24 Watts	95%	576422mm
2	RDDLZWG-12S2402	$66.48	12V DC	24V DC	2 Amps	48 Watts	94%	576422mm
3	RDDLZWG-12S2403	$69.29 ($81.52)	12V DC	24V DC	3 Amps	72 Watts	95%	747432mm
4	RDDLZWG-12S2404	$76.19 ($89.64)	12V DC	24V DC	4 Amps	96 Watts	94%	747432mm
5	RDDLZWG-12S2405	$84.45 ($99.36)	12V DC	24V DC	5 Amps	120 Watts	94%	747432mm
6	RDDLZWG-12S2408	$95.58 ($112.45)	12V DC	24V DC	8 Amps	192 Watts	93%	747432mm
7	RDDLZWG-12S2410	$105.56 ($124.19)	12V DC	24V DC	10 Amps	240 Watts	92%	747432mm
8	RDDLZWG-12S2412	$138.67	12V DC	24V DC	12 Amps	288 Watts	95%	747432mm
9	RDDLZWG-12S2415	$150.95	12V DC	24V DC	15 Amps	360 Watts	94%	1008039mm
10	RDDLZWG-12S2420	$175.45 ($206.41)	12V DC	24V DC	20 Amps	480 Watts	95%	1008032mm
11	RDDLZWG-12S2425	$246.28	12V DC	24V DC	25 Amps	600 Watts	96%	15012763mm
12	RDDLZWG-12S2430	$278.13	12V DC	24V DC	30 Amps	720 Watts	95%	15012763mm
13	RDDLZWG-12S2440	$305.18	12V DC	24V DC	40 Amps	960 Watts	94%	22012763mm
14	RDDLZWG-12S2450	$344.36	12V DC	24V DC	50 Amps	1200 Watts	93%	30012763mm

Note: The series of 12V to 24V DC-DC boost converter models are all here, check the parameter carefully from the table and select the right converter power supply when place the order. Models marked in red are available at a 15% discount.

Details

Tips: DC-DC boost converter basic working principle

The basic working principle of a DC-DC boost converter is to step up a lower DC voltage to a higher DC voltage through switching mode power supply technology. Its core components include an inductor, a switch (usually a MOSFET), a diode and an output capacitor. The following is the basic working process of Boost Converter:

Energy storage stage: When the switch (such as MOSFET) is closed, current passes through the inductor, and the inductor begins to store energy.
Energy release stage: When the switch is turned off, the stored energy in the inductor is released to the output terminal through the diode, increasing the output voltage.

By rapidly switching on and off, the inductor cycles between storing and releasing energy, causing the output voltage to be higher than the input voltage.
