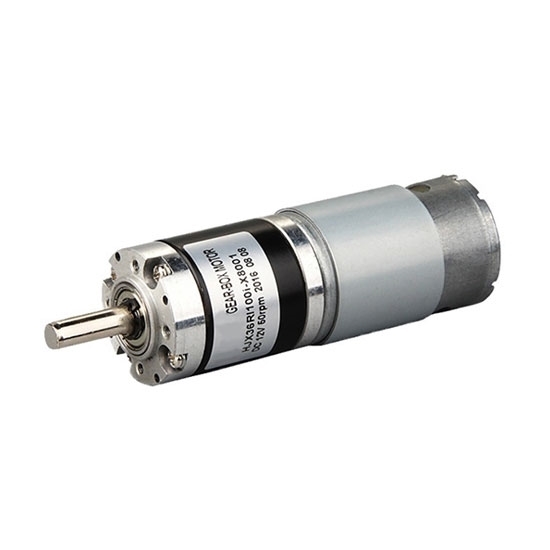

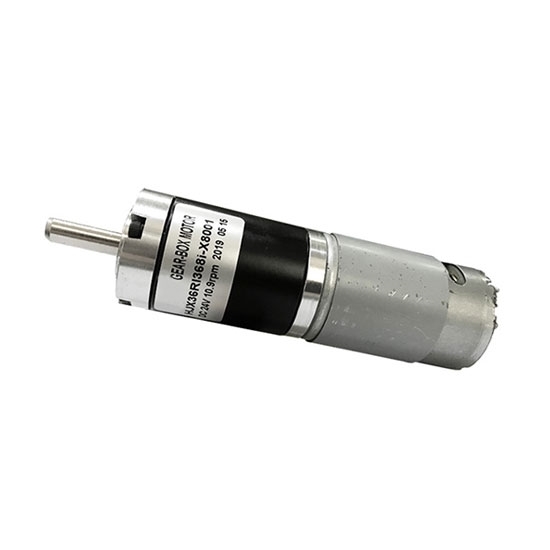

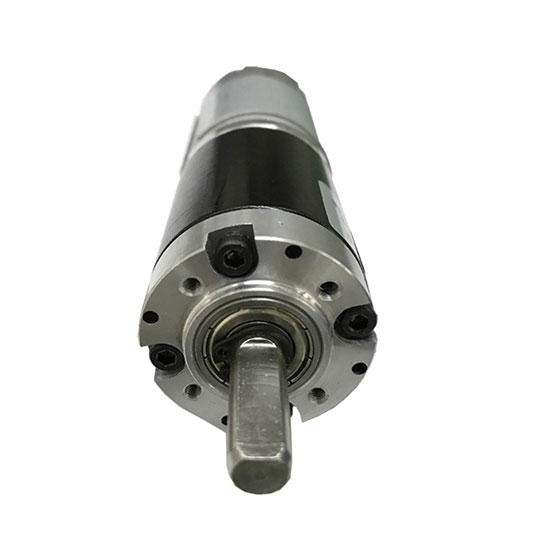

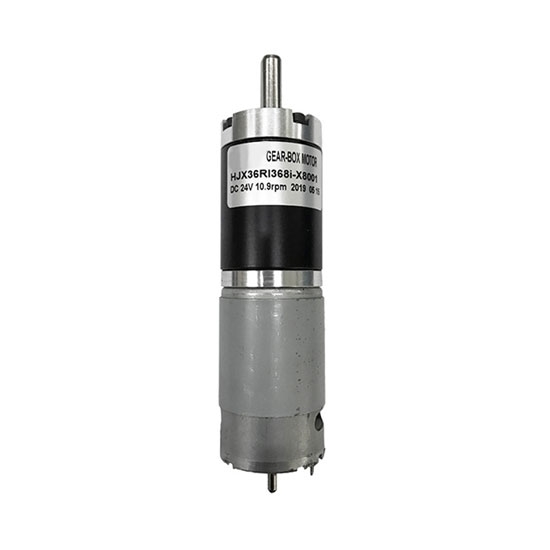

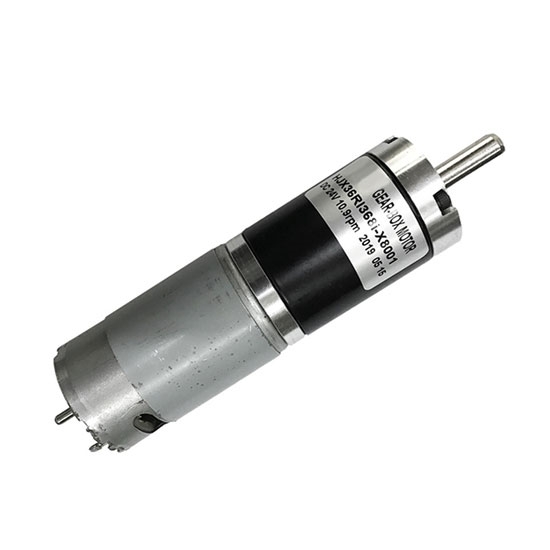

Brushed DC Motor With Gearbox, 4000rpm, 12V/24V, 36mm

0 reviews • Write a review

from

$145.66

Ex Tax: $145.66

Stock: In Stock
Model: RDDLZ-BDM-4000R36
Weight: 1.00
SKU: RDDLZ-BDM-4000R36

Available Options

Gear Ratio

Voltage (DC)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Details

Tips: How to select a brushed DC motor with gearbox?

Level of protection

The level of protection of the brushed DC motor shell should be considered according to the provisions of the natural environment of the installation site.

Rated current and frequency

The rated operating standard voltage and frequency of the BDC motor shall be consistent with the operating voltage and frequency of the applied switching power supply.

Maximum power

The maximum power of the brushed gear motor should be consistent with the mechanical power of the drive as far as possible.

Builder in Product TAB

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Model			RDDLZ-36RI-ZY3757R3
Working Temperature (Motor & Gearbox)			-30 ~ 150°C
DC Motor Technical Parameter	Rated Voltage		12V DC										24V DC
	No Load	Speed	5000rpm										5000rpm
		Current	0.38A										0.2A
	At Max Efficiency	Speed	4000rpm										4000rpm
		Current	1.45A										0.726A
		Torque	24.5mN·m										25.4mN·m
			250g·cm										260g·cm
		Power	10W										10.5W
	Stall	Torque	115.4mN·m										134.3mN·m
			1380g·cm										1500g·cm
		Current	5.8A										2.884A
Gearbox Technical Parameter	Gear Ratio		1/3.7	1/5.2	1/13.7	1/19.2	1/27	1/35	1/51	1/71	1/100	1/139	1/3.7	1/5.2	1/13.7	1/19.2	1/27	1/35	1/51	1/71	1/100	1/139
	Gearbox Diameter (mm)		36										36
	Gearbox Length (mm)		28.2		37				46				28.2		37				46
	Rated Torque (kg·cm)		0.8	1.2	2.7	3.8	5.4	7.0	8.9	12.4	17.5	24.7	0.9	1.2	2.8	4.0	5.6	7.2	9.3	9.4	13.3	18.4
	Rated Speed (rpm)		1081	769.2	292.0	208.3	148.1	114.0	78.4	56.3	40.0	28.8	1081	769.2	292.0	208.3	148.1	114.0	78.4	56.3	40.0	28.8
	Stall Torque (kg·cm)		3.7	5.3	12.3	17.3	24.3	30.0	40.2	55.9	78.8	111.0	3.9	5.5	12.8	18.0	25.3	36.0	41.8	42.4	59.7	82.9
