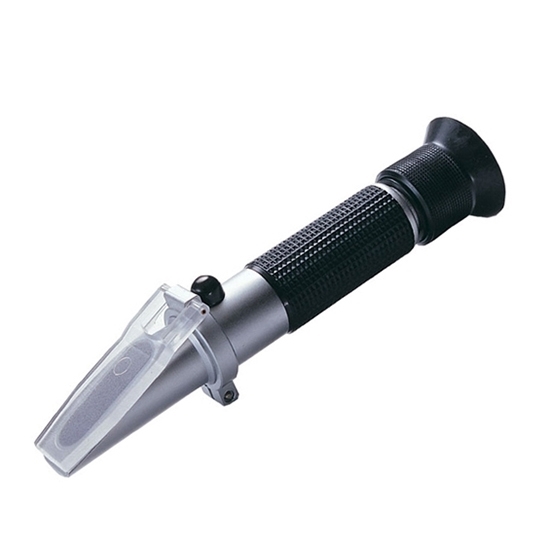

Brix Refractometer, Salinity/Honey/Coolant/Alcohol Measurement

$Brix Refractometer, Salinity/Honey/Coolant/Alcohol Measurement$

Brix Refractometer, Salinity/Honey/Coolant/Alcohol Measurement

0 reviews • Write a review

from

$80.72

Ex Tax: $80.72

Stock: In Stock
Model: RDDLZ-BRM-0082
Weight: 1.00
SKU: RDDLZ-BRM-0082

Available Options

Model and Brix Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Brix refractometer applications: Measurement for liquid specific density include brix, salinity, antifreeze, soy milk/milk, alcohol/wort, fruit drink sugar, honey Baume (°Bé), coolant (cutting fluid) concentration, etc. It is an ideal meter for food production, beverage production, marine aquaculture, aquarium and other light industries.

Specification

Model	RDDLZ-BRM-010	RDDLZ-BRM-020	RDDLZ-BRM-032	RDDLZ-BRM-050	RDDLZ-BRM-080	RDDLZ-BRM-090	RDDLZ-BRM-2862	RDDLZ-BRM-4582
Brix Measurement Range	0~10%	0~20%	0~32%	0~50%	0~80%	0~90%	28~62%	45~82%
Minimum Division	0.2%	0.1%	0.2%	0.5%	1%	0.5%	0.2%	0.5%
Accuracy	±0.2%	±0.1%	±0.2%	±0.5%	±1%	±0.5%	±0.2%	±0.5%
Body Length	200mm	175mm	175mm	155mm	150mm	150mm	165mm	150mm
Weight	106g	92g	93g	87g	87g	86g	91g	89g
Temperature Compensation Range	10~30℃
Reference Temperature	30℃
Material	Aluminium Alloy/Copper
Certificate	CE
Package Includes	1) 1 x Refractometer 2) 1 x pipette 3) 1x instruction manual 4) 1x mini screw driver 5) 1x cleaning cloth

Brix Refractometer Operation Flow

Open the cover and carefully clean the inspection prism with a soft cloth.
Take a few drops of tested solution and place it on detection prism. Then gently close the cover to avoid air bubbles and allow the solution to spread over the prism surface.
Align light source or bright spot, eyes observe view field through eyepiece.

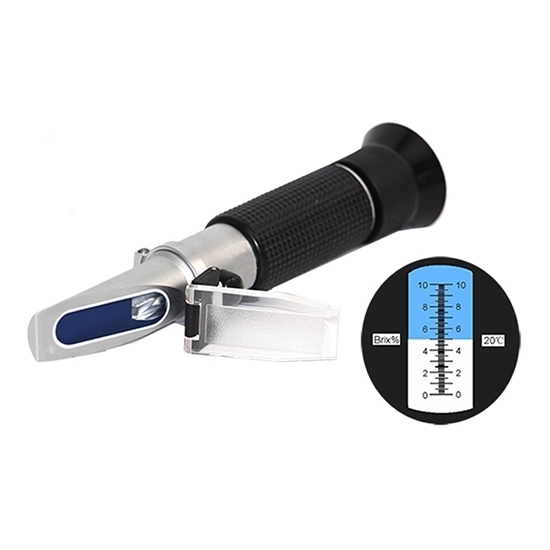

Turn the adjustment handwheel of eyepiece to make the blue-white boundary of view field clear. The scale value of dividing line is the concentration of solution.

Brix Refractometer Parts Structure Diagram

Tips: Selection of brix refractometer products and measurement range.

Application	Recommended products and measurement range
Fruit, juice, sugar (low concentration)	Brix refractometer 10%、20%、32%、50%
Maltose, glucose syrup, sugar (high sugar content)	Brix refractometer 80%、90%
Honey (high concentration, Baume)	Moisture 12~27% High brix 58~90% Baume degree 38~43°Bé
Milk, soy milk (with brix)	Milk 0~20 Soy milk 0~25
Edible product testing (salinity, saltiness)	Salinity refractometer 0~28%
Marine aquaculture, aquarium (salinity specific gravity test)	Salinity refractometer 0~100‰, specific gravity 1.000~1.070
Car ice point (freezing point) test	Antifreeze freezing point -50~0°C Glass liquid freezing point -40~0°C Battery liquid specific gravity 1.10~1.40
