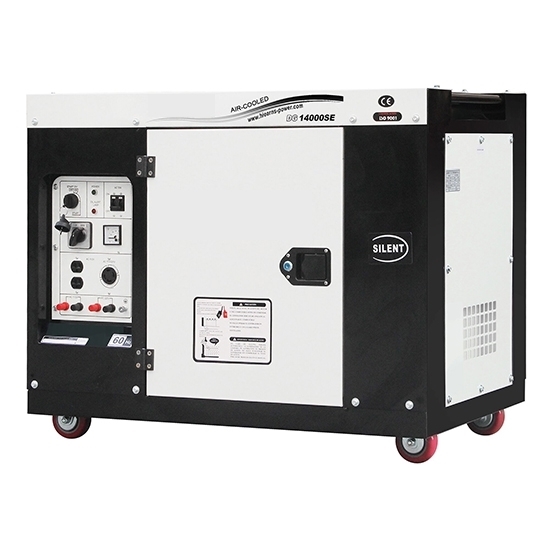

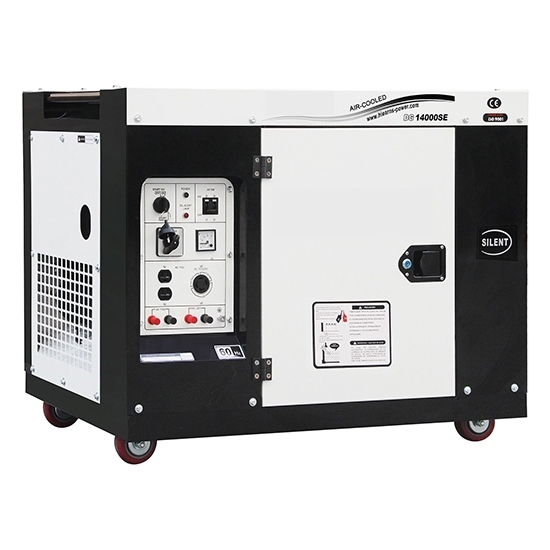

9kW (11kVA) Silent Diesel Generator, 1 Phase/3 Phase

0 reviews • Write a review

from

$5,600.79

Ex Tax: $5,600.79

Stock: In Stock
Model: RDDLZ-DG-9K
Weight: 1.00
SKU: RDDLZ-DG-9K

Available Options

AC Voltage

Control Panel

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Description

Hot sale!! Small diesel generator with 9kW (11kVA) rated output, portable and super silent designed for home. 30L large fuel tank ensures 11 hours of continuous running, 4 wheels for easy move, 50Hz/ 60Hz single phase AC voltage can be customized according to your needs.

Specifications

Model		DG14000SE
Generator	Frequency	50Hz	60Hz
	AC Voltage	120V, 220V, 230V, 120/240V, 220/380V, 230/400V
	Rated AC Output	9.5kW	9.7kW
	Max. AC Output	10kW	10.5kW
	Power Factor (cosΦ)	cosΦ=0.8
	Alternator Type	Self-excited
	Continuous Working Time	11h
	DC Output	12V 8.3A
	Phase	Single or Three phase
	Noise Level at 7m	70-73dB
	Fuel Tank Capacity	30L
	Starting Battery	12V 36AH *The starting batteries cannot be carried by air so you need to purchase it separately.
	Certificate	CE, ISO
	Working Environment Temperature	-10-40°C
Engine	Model	HR1102F
	Engine Type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore*Stroke	102*88mm
	Displacement Capacity	718cc
	Fuel	0# or -10# light diesel oil
	Lubrication Oil Volume	1.65L
	Combustion System	Direct injection

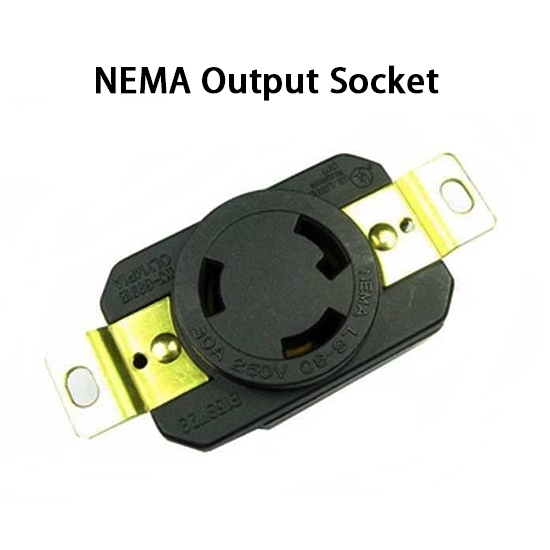

Standard Configuration		Voltmeter1 AC output socker2 AC circuit breaker1 Oil warning light1 Oil alert*1
Optional Configuration		DC circuit breaker Calculagraph Big wheel Three phase voltage Current meter ATS Remote control *Please contact us if you need the above options.
Dimensions	Dimension (LWH)	1130760860mm
	Gross Wight	235kg

Tips: RDDLZ portable diesel generator advantages

Whether you are a field site or a suburban project, small diesel generators to provide you with quality portable power, solve your no power problem, let your project progress is not affected. RDDLZ portable and silent diesel generator series (3KW, 5KW, 6KW, 7KW, 8KW, 10KW, 12KW...), according to your actual demand, buy the appropriate power generator set, to meet your outdoor project power demand, at the same time ultra-low fuel consumption, reduce your expenditure, is our daily life and engineering good partner. Our diesel engine has the following advantages.

Fuel saving: Intelligent speed control technology can automatically match the engine speed according to the load condition, saving 11% fuel for users, and diesel is cheaper than gasoline.
Small, portable: Machine with wheels, easy to move.
Easy to buy the fuel: Diesel fuel easy to buy, unlimited, no requirements.
Green: meet US environmental emission standards.
Sustainability: a 15 or above litre tank lasts for 8-10 hours.
When output, overload, engine oil volume is insufficient, the machine will remind.
Enclosure type small diesel generator set, protect the machine in bad environment can work normally.
