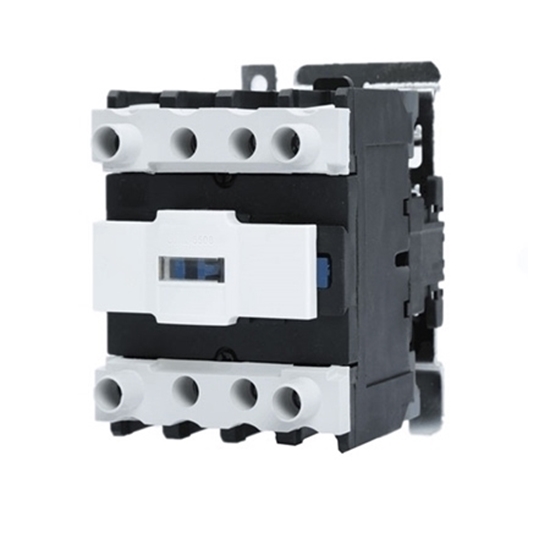

95 Amps 4 Pole AC Contactor 24V/110V/220V Coil

0 reviews • Write a review

from

$177.89

Ex Tax: $177.89

Stock: In Stock
Model: RDDLZ-ACCON-095
Weight: 1.00
SKU: RDDLZ-ACCON-095

Available Options

Short Description

Contact Form

Coil Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

95A 4 pole AC contactor is used under 50Hz or 60Hz, as a bypass contactor, making or breaking electric ciucuits at a long distance, frequent starting, stopping and controlling AC motors.

Specifications

Model		RDDLZ-CJX2-95
Rated Operational Current (AC-3)	380V	95A
	660V	49A
Conventional Heating Current		110A
Rated Insulation Voltage		690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)	220V	25kW
	380V	45kW
	660V	55kW
Operational Frequency (AC-3)	Electric Life	600 times/h
	Mechanical Life	2400 times/h
Service Life	Electric Life (10⁴ times)	60
	Mechanical Life (10⁴ times)	600
Matching Fusing Model		RT16-125
Average Power Consumption (20℃) @ 50Hz	Pick-up	230VA
	Holding	32VA
Unit weight(kg)	4P (4N/O)	1.59
	4P (2N/O+2N/C)	1.65
Ambient Temperature		-5℃~+40℃
Altittude		≤2000m
Rail Size		75mm
Class of Pollution		Class 3
Installation Category		Ⅲ

Dimensions (unit: mm)

4P (4NO) AC contactor

4P (2NO+2NC) AC contactor

Tips: The contact of AC contactor is overheating or burning for eight-hour working, how to solve?

Possible Causes:

Contact spring pressure is too small
There is oil on the contact, or the surface is uneven, and the metal particles are prominent.
The ambient temperature is too high or used in a closed control box
Copper contacts for long-term work
The overtravel of the contact is too small

Processing method:

Increase the contact spring pressure
Clean the contact surface
Contactor derating
Adjust the contact overtravel or replace the contact
