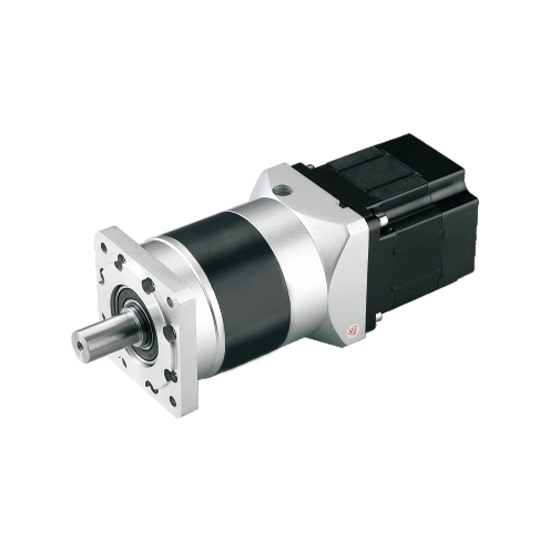

Reasonable price 90 watt planetary gear motor is available with 12V/24V/36V/48V DC voltage power supply, 3000rpm rated speed, 0.29Nm low torque and peak torque to 0.86Nm, motor dimension 86mm. 3 phase BLDC motor works with a low noise planetary gearbox, designed for electric vehicle.

Features:

• 12V, 24V, 36V, 48V DC are available.
• The planetary gearbox ratio is up to 250:1.
• Power, voltage, speed, shaft, motor length and lead can be customized.
• BLDC motor with a planetary gearbox has low power consumption, high efficiency and longer battery life.
• Planetary gear motor provides high torque at low speeds.
• Easy for speed adjustment and reversible direction.

Specifications:

Note: If you would like CAD drawings of the motor and planetary gearbox, please contact us.

Speed-torque curve

• Instantaneous maximum torque line
  The maximum torque momentarily impacts the load when the motor is started.
  Beyond this torque, the over-current protection of the driver will cause the motor to stop.
• Short time operation area
  The motor can run at a short time within this torque range at different speeds.
  If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
• Rated operating torque line
  The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
• Continuous operating area
  When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Tips: What are the applications and characteristics of planetary gear motors?

Planetary gear motors are small in size, light in weight, high in carrying capacity, long in service life, stable in operation and low in noise. With the characteristics of power splitting and multi-tooth meshing, it is suitable for lifting and transportation, construction machinery, metallurgy, mining, petrochemical, construction machinery, light industrial textiles, medical equipment, instrumentation, automobiles, ships, weapons and aerospace, etc.

Planetary gear motor is a new type of planetary gear motor with wide versatility. The internal gear adopts low-carbon alloy steel carburizing and quenching plus gear grinding or nitriding process. The whole machine has the characteristics of small structural size, large output torque, large speed ratio, high efficiency and reliable performance.
