9 Amp Mechanical Interlock AC Contactor

0 reviews • Write a review

from

$68.29

Ex Tax: $68.29

Stock: In Stock
Model: RDDLZ-ACCON-09N
Weight: 1.00
SKU: RDDLZ-ACCON-09N

Available Options

Contact Form

Coil Rated Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

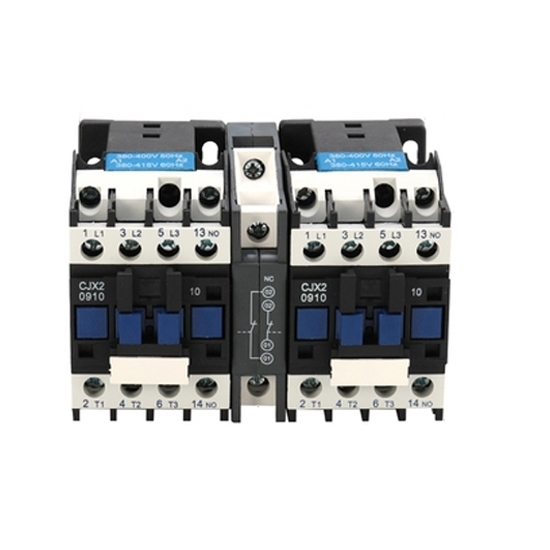

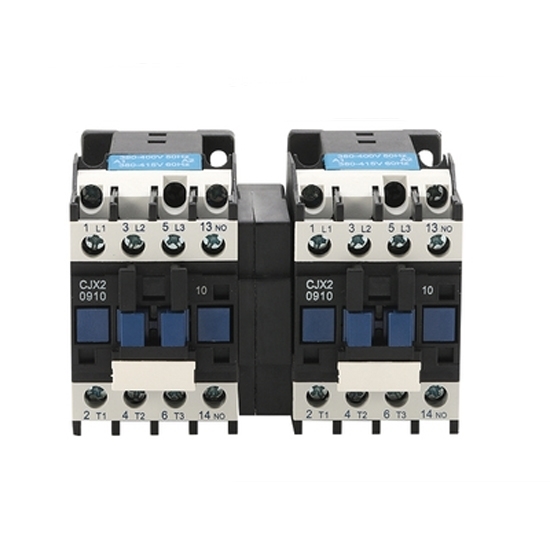

Magnetic AC reversing contactor with a mechanical interlock can save electric energy and eliminate power frequency noise. This magnetic contactor drives the moving contact and the static contact to realize the purpose of connecting or breaking the circuit.

Specification

Model			RDDLZ-CJX2-09N
Rated Operational Current	380V	AC-3	9A
		AC-4	3.5A
	660V	AC-3	7A
		AC-4	1.5A
Conventional Heating Current			20A
Rated Insulation Voltage			690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)	220V		2.2kW
	380V		4kW
	660V		5.5kW
Operational Frequency	Electric Life	AC-3	1200 times/h
		AC-4	300 times/h
	Mechanical Life		3600 times/h
Service Life	Electric Life (10⁴ Operations)	AC-3	100
		AC-4	20
	Mechanical Life (10⁴Operations)		1000
Matching Fusing Model			RT16-16
Average Power Consumption (20℃) @ 50Hz	Pick-up		76VA
	Holding		9.4VA
Contact Form (Optional)			3P (Additional 1NO Auxiliary Contact) or 4P
Rail Size			35mm
Ambient Temperature			-5℃~+40℃
Altittude			≤2000m
Class of Pollution			Class 3
Installation Category			Ⅲ

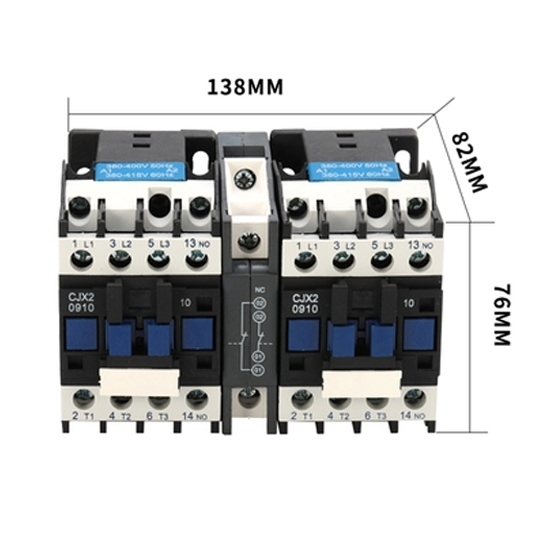

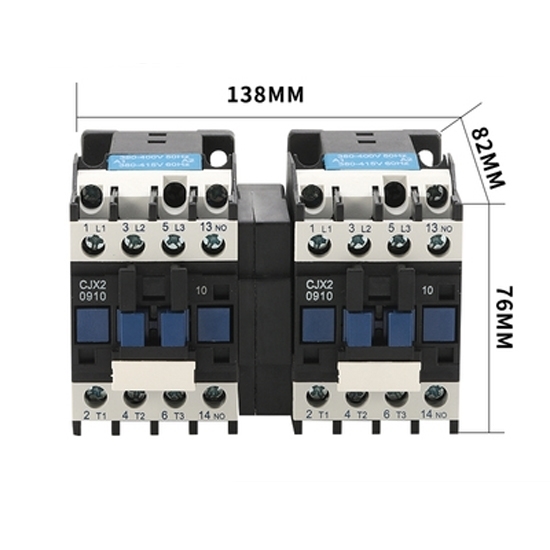

Dimensions			138 x 76 x 82mm
Weight			1kg

Tips: Installation conditions of mechanical interlock AC contactors

The altitude of the installation site does not exceed 2000m.
The upper limit of ambient air temperature should not exceed +40℃, and the lower limit should not be lower than -5℃.
The relative humidity of the air at the installation site does not exceed 50% when the maximum temperature is +40°C.
The installation incline to the vertical surface does not exceed ±5°.
The mechanical interlock AC contactor should be installed in a place where there is no significant shaking, impact and vibration.
